Setup
Loose Parts
Use the chart below to verify that all parts have been shipped.
Step
Description
Qty.
Use
Oval-head bolts
2
Curved washers
2
1.
Handle knobs
2
Install the handle.
Discharge chute
1
Washers
2
Locknuts
2
2.
Knob
1
Install the discharge chute.

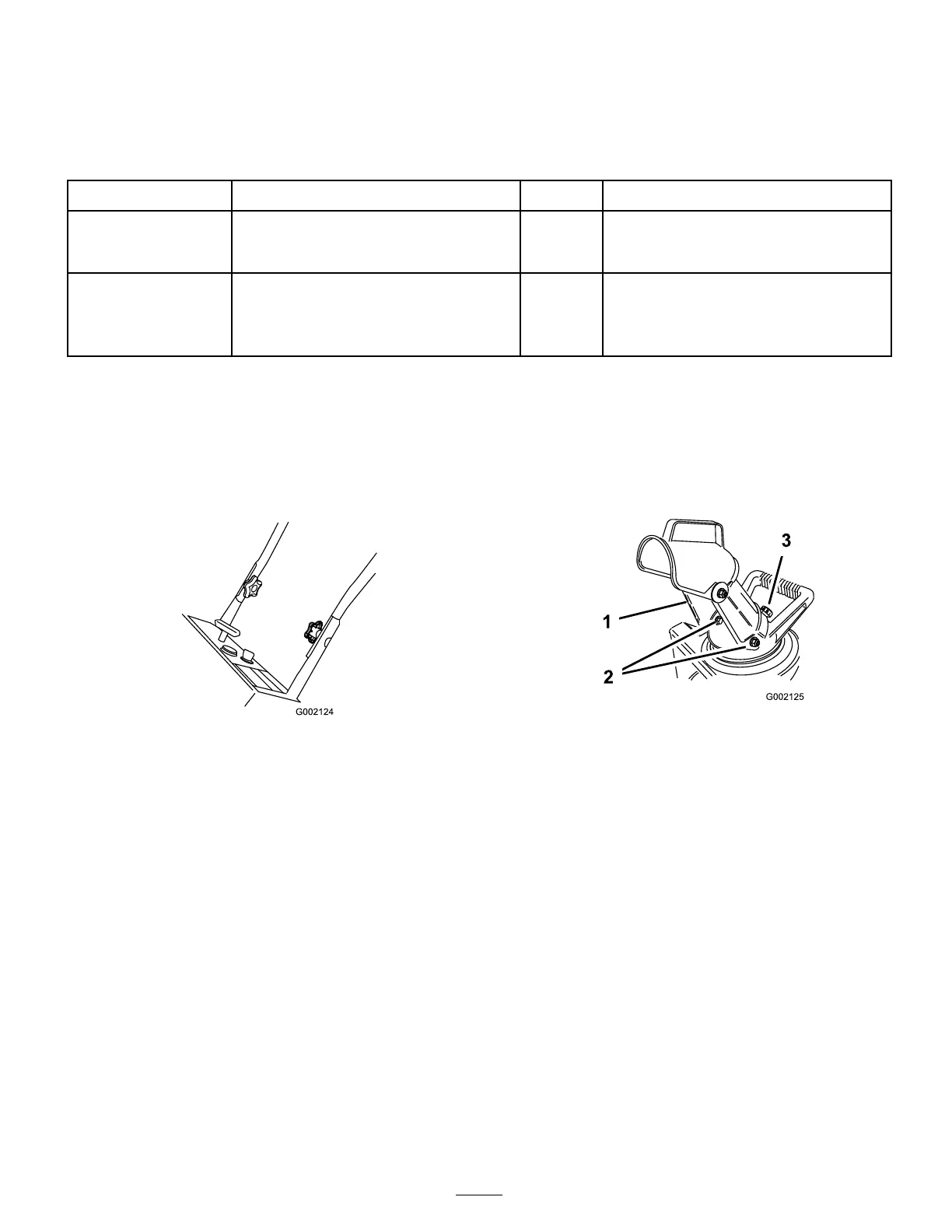

1. Installing the Handle
1. P osition the ends of the upper handle on the inside of
the lo w er handle and align the holes .
2. Inser t the o v al-head bolts into the aligned holes , with
the bolt heads on the outside of the handle . ( Figure 3 ).
Figure 3
3. Install the cur v ed w ashers and the handle knobs on the
o v al-head bolts and tighten the knobs secur el y .
2. Installing the Discharge
Chute
1. P osition the holes in the sides of the disc harg e c hute
o v er the bolts ends on the sides of the c hute handle .
( Figure 4 ).
Figure 4
1. Discharge chute 3. Knob
2. Bolt ends
2. Secure the sides of the disc harg e c hute with 2 w ashers
and 2 loc kn uts .
3. R otate the disc harg e c hute to the upright position.
4. Install the knob tightl y onto the bolt end at the rear of
the disc harg e c hute .
5
