Controls
Becomefamiliarwithallthecontrols(Figure6)beforeyou
starttheengineandoperatethemachine.
g015230
3
4
5
6
7
8
9
10
11
12
13

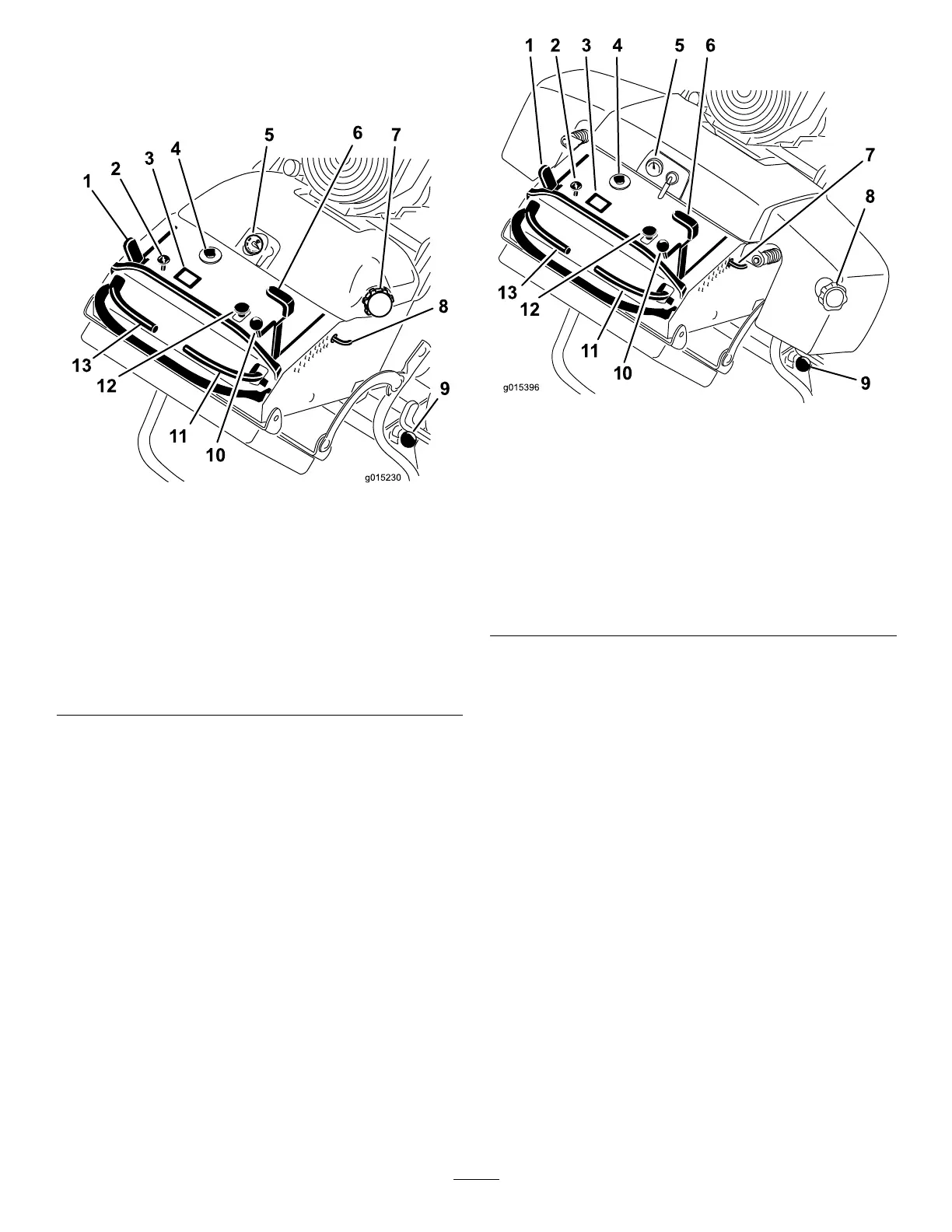

Figure6
48inchand52-inchmachines
1.Parking-brakelever
8.Height-of-cutpin
2.Choke9.Platformlatch
3.Hourmeter10.Throttlecontrol
4.Ignitionswitch11.Rightmotion-controllever
5.Fuelgauge12.Blade-controlswitch
(PTO)
6.Height-of-cutlever13.Leftmotion-controllever
7.Fuelcap
g015396
1 2 3 4 5 6
7
8
9
10
11
12
13
Figure7
60-inchmachine
1.Parking-brakelever8.Fuelcap
2.Choke9.Platformlatch
3.Hourmeter10.Throttlecontrol
4.Ignitionswitch11.Rightmotion-controllever
5.Fuelgauge12.Blade-controlswitch
(PTO)
6.Height-of-cutlever13.Leftmotion-controllever
7.Height-of-cutpin
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Itoperateswhentheengineisrunning.Usethese
timesforschedulingregularmaintenance(
Figure7).
FuelGauge
Thefuelgaugeislocatedonthetop,middleofthetank
(Figure6).
Safety-interlockIndicators
Symbolsonthehourmeterindicatewithablacktrianglethat
theinterlockcomponentisinthecorrectposition(Figure7).
Battery-indicatorLight
IftheignitionkeyisturnedtotheOnpositionforafew
seconds,thebatteryvoltagewillbedisplayedinthearea
wherethehoursarenormallydisplayed.
Thebatterylightturnsonwhentheignitionisturnedonand
whenthechargeisbelowthecorrectoperatinglevel(
Figure
7).
13
