Lubrication
GreasewithNo.2generalpurposelithiumbaseor
molybdenumbasegrease.
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Cleanthegreasettingswitharag.
Note:Makesuretoscrapeanypaintoffthefrontof
thetting(s).
4.Connectagreaseguntothetting.
5.Pumpgreaseintothettingsuntilgreasebeginsto
oozeoutofthebearings.
6.Wipeupanyexcessgrease.
LubricatingtheMachine
ServiceInterval:Every50hours—Greasetheliftlinkage
(moreoftenindirtyordustyconditions).
Every50hours—Greasethemowerdeckspindles
(moreoftenindirtyordustyconditions).
Every800hours/Yearly(whichevercomes
rst)—Greasethefrontwheelbearings(moreoftenin
dirtyordustyconditions).
Every800hours/Yearly(whichevercomes
rst)—Greasethefrontcasterpivots(moreoftenin
dirtyordustyconditions).

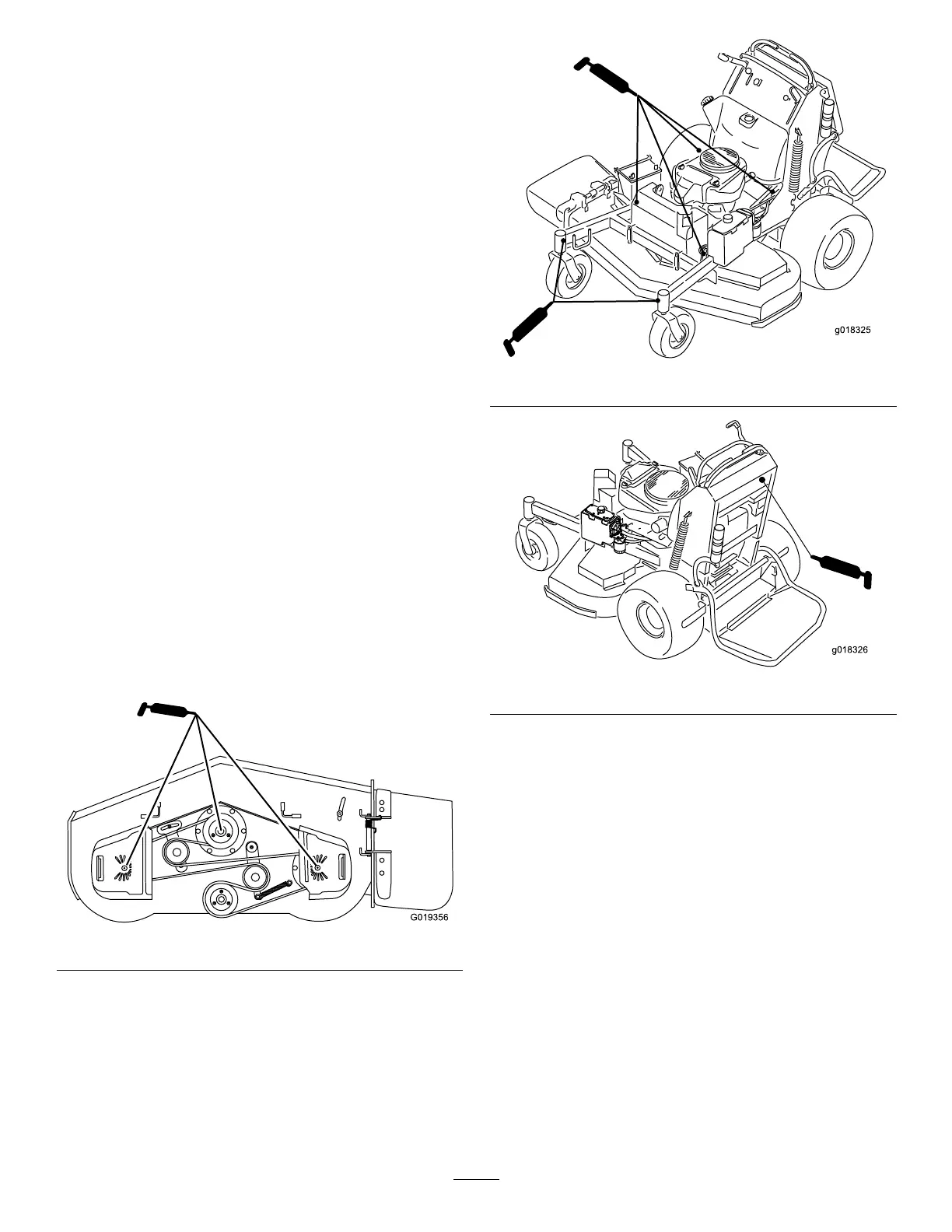

Usethefollowinggraphicsforlocatingthegreasepoints.
G019356
Figure38
g018325
Figure39
g018326
Figure40
GreasingtheFrontCaster
Pivots
ServiceInterval:Yearly
Lubricatethefrontcasterpivotsonceayear.
1.Removethedustcapandadjustthecasterpivots;refer
toAdjustingtheCaster-pivotBearing(page42).
Note:Keepthedustcapoffuntilgreasingisdone.
2.Removethehexplug.
3.Threadagreasettingintothehole.
4.Pumpgreaseintothettinguntilitoozesoutaround
thetopbearing.
5.Removethegreasettinginthehole.Installthehex
plugandcap.
31
