After you set the PIN code, rotate the key switch to
the O FF position and back to the O N position to enable
and save this feature.
Note: Rotate the key switch to the O FF position and
then to the O N position to lock the protected menu.
Setting the Machine Conguration Passcode
Y ou can set a passcode on the InfoCenter so that an
operator cannot access specic InfoCenter screens
without it. Refer to Understanding the InfoCenter
Menu Items ( page 21 ) for the InfoCenter screens that
are passcode-protected.
1. From the S ETTINGS menu, select P ROTECT
S ETTINGS .
2. Set P ROTECT S ETTINGS to O N .
3. When prompted, enter a 4-digit passcode.
4. T urn the ignition key to the O FF position to save
the code.
Note: If you forget the user dened passcode,
you can obtain a temporary passcode from your
authorized T oro distributor .
Understanding the Fault-Log Indicator
If a fault occurs, a fault code appears on the
InfoCenter screen and a red ashing light appears
above the screen.
The fault is stored in a log entry located in the F AULTS
menu, which you or your distributor can use to identify
the issue that prompted the fault.
For a list of faults, refer to the Service Manual or your
authorized T oro distributor .
Main-Power Connectors
Before you charge the machine, work on the machine,
or install, remove, or work on the cutting units,
disconnect the machine from the power supply by
raising the connector cover and separating the
main-power connectors ( Figure 23 ), located at the
base of the roll bar on the left side of the traction unit.
Plug the connectors together before operating the
machine.

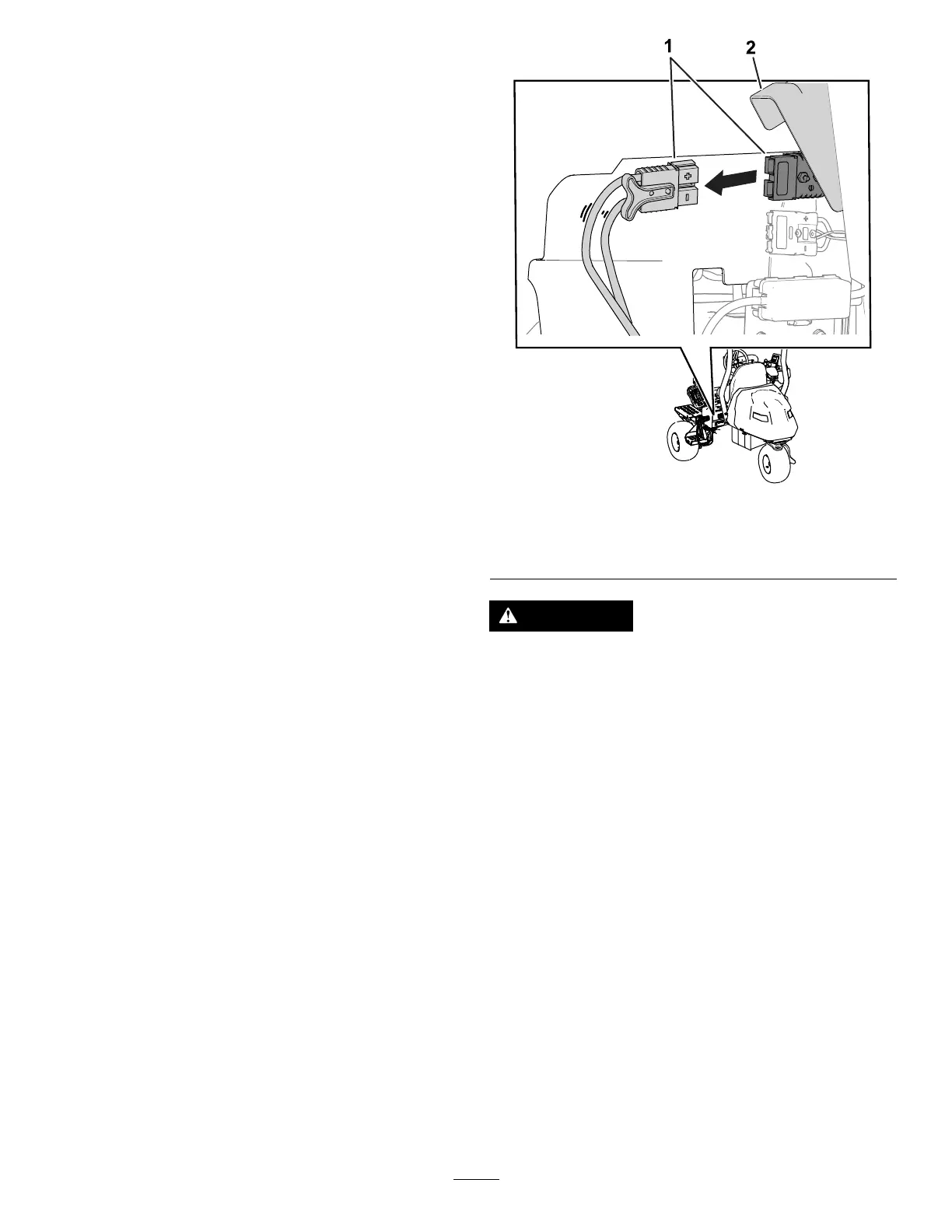

g389175
Figure 23
1. Main-power connectors
2. Connector cover
CAUTION
If you do not disconnect the power to the
machine, someone could accidentally turn on
the machine, causing serious bodily injury .
Always separate the connectors before
working on the machine.
Specications
Refer to Figure 24 and the T raction-Unit Specications
T able ( page 24 ) for traction-unit dimensions and
weight.
Note: Specications and design are subject to
change without notice.
