Toro Groundsmaster 4700-D Service Manual

Groundsmaster 4500 --D/4700--DPage 3 -- 8Yanmar Diesel Engine
Service and Repairs

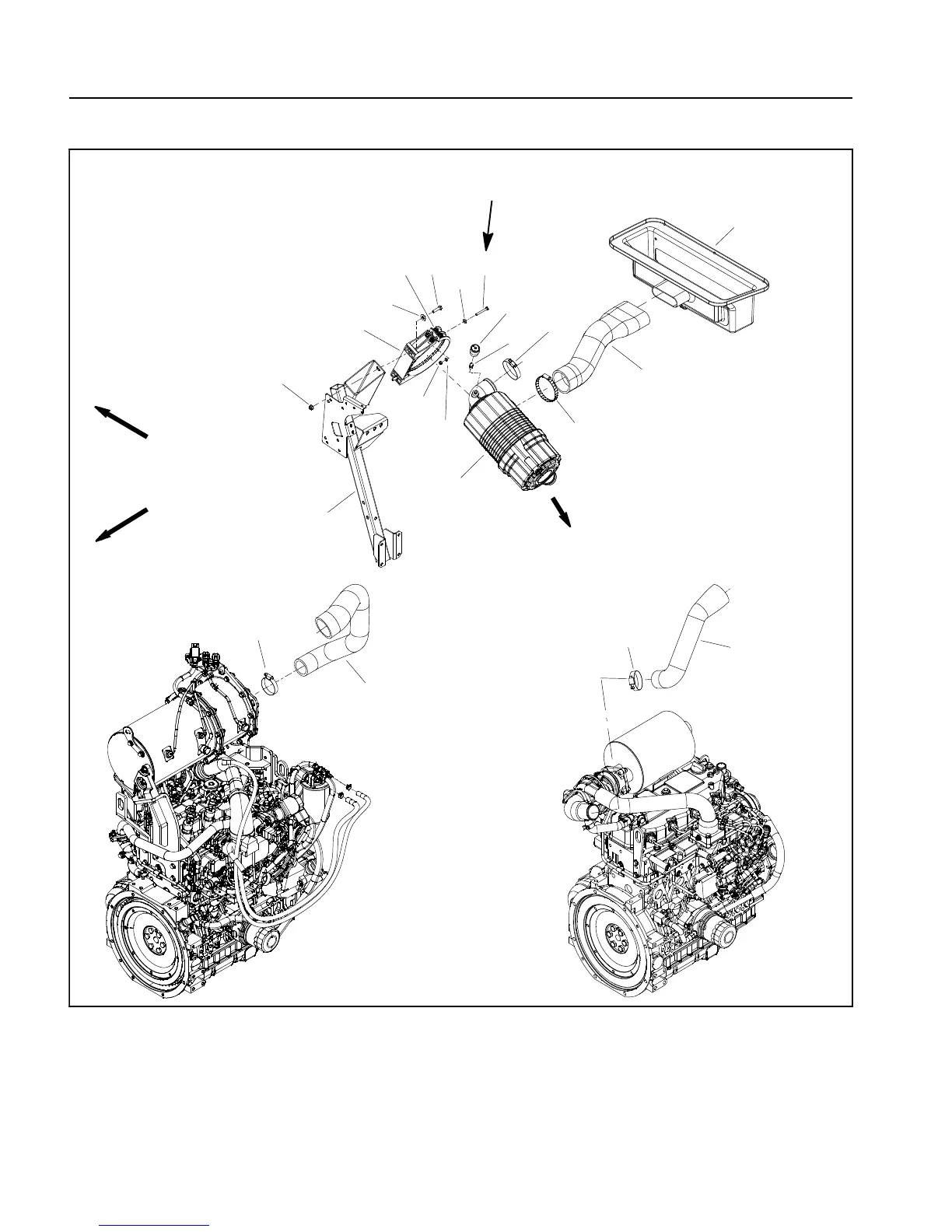

Air Cleaner System
Figure 6
FRONT
RIGHT
1. Air cleaner assembly
2. Air cleaner mount
3. Indicator
4. Adapter
5. Air cleaner strap
6. Socket head screw (2 used)
7. Flat washer (2 used)
8. Flat washer (2 used)
9. Lock nut (2 used)
10. Spring (2 used)
11. Cap screw (2 used)
12. Flat washer (2 used)
13. Flange nut (2 used)
14. Hose clamp
15. Air cleaner inlet hose
16. Hose clamp
17. Air cleaner outlet hose (tier 4)
18. Air cleaner outlet hose (tier 4i)
19. Hose clamp
20. Plenum
17
MODELS
30881 and
30882
MODELS
30873 and
30874
16
18
16
12 to 15 in--lb
(1.4 to 1.6 N--m)
VACUATOR
DIRECTION
1
5
3
7
19
6
15
20
2
14
8
9
10
11
13
12
4
