Groundsmaster 4500 --D/4700--D Hydraulic SystemPage 4 -- 3
General Information
Operator’s Manual
The Operator’s Manual provides information regarding
the operation, general maintenance and maintenance
intervals for your Groundsmaster machine. Refer to that
publication for additional information when servicing the
machine.
Check Hydraulic Fluid
The Groundsmaster 4500 --D and 4700--D hydraulic
systems are designed to operate on anti--wear hydraulic
fluid. The hydraulic reservoir holds approximately 7.5
gallons (28.4 liters) of hydraulic fluid. Ch eck level of hy-
draulic fluid daily. See Operator’s Manual for fluid level
checking procedure and oil recommendations.

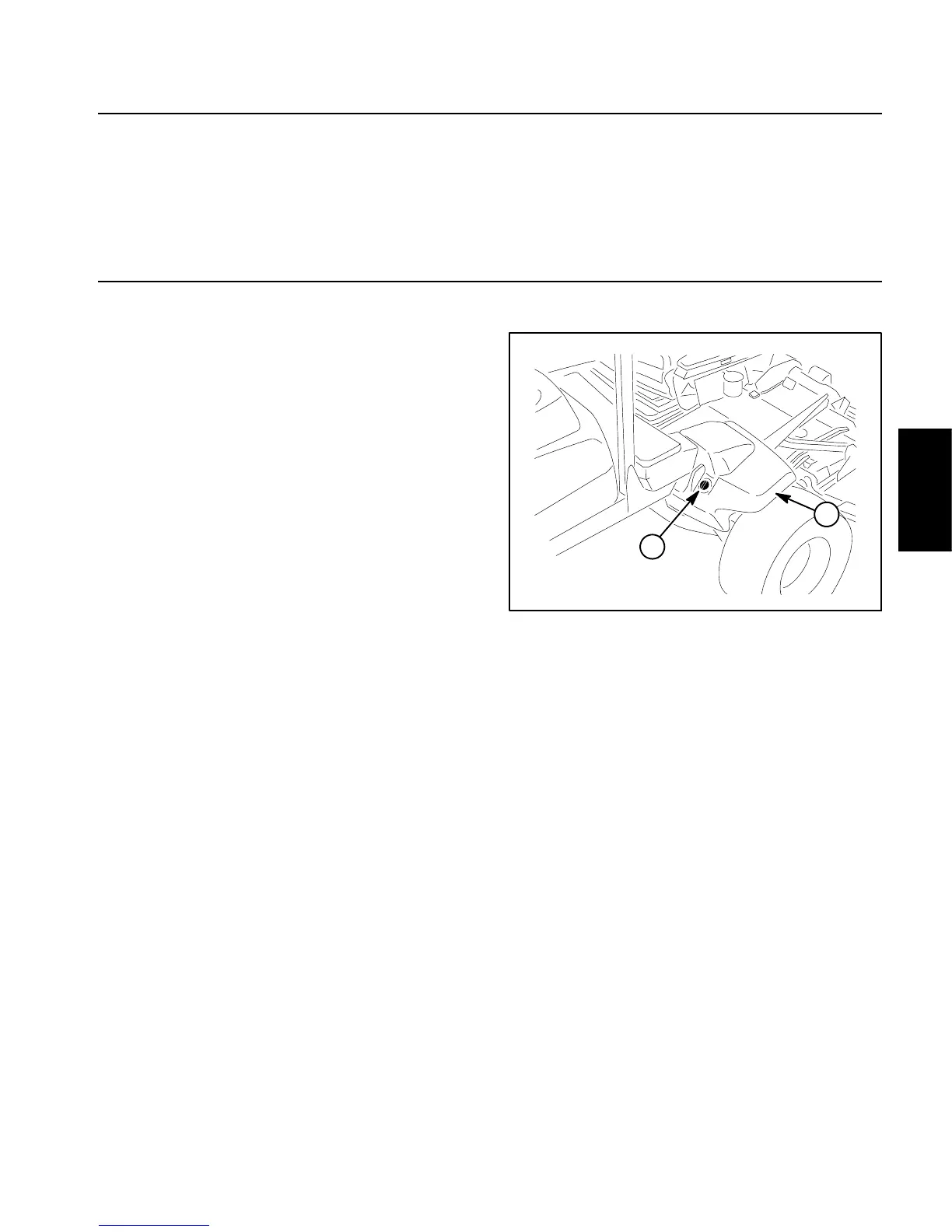

Figure 1
1. Hydraulic reservoir 2. Reservoir cap
