Toro LT3340 User Manual

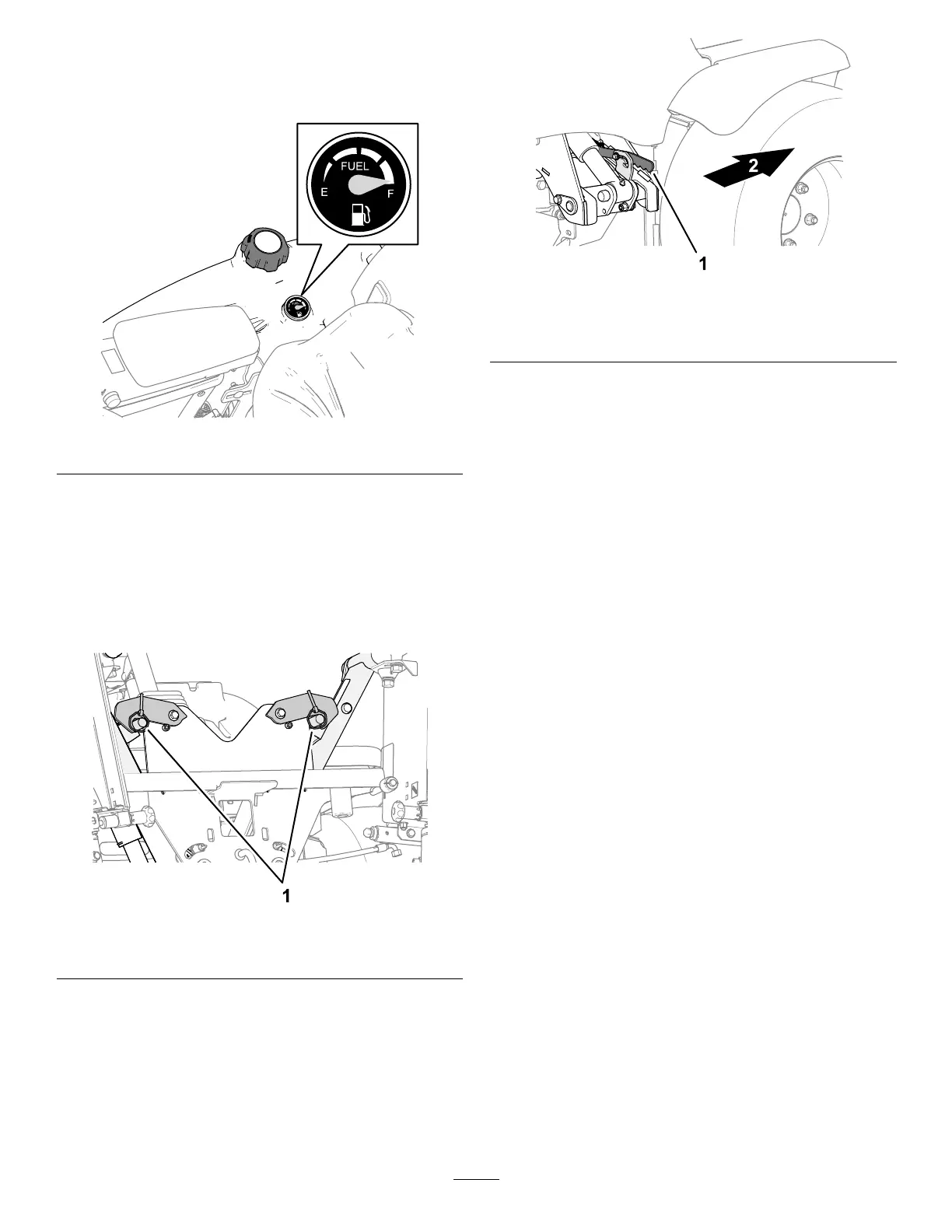

FuelGauge
Thefuelgaugeshowstheamountoffuelinthetank
(Figure13).
g295232
Figure13
TransportLatches
FrontCuttingUnitArmLatches
RaisethecuttingunitstotheTRANSPORTpositionand
securethearm-latchpinstothelatcheswiththebails
(Figure14).
g327358
Figure14
1.Bails(frontcutting-unitarmlatches)
RearCuttingUnitArmLatch
RaisethecuttingunitstotheTRANSPORTposition,lift
thelatcharmfortherearcutting-unitarm,andposition
thearminboard(Figure15).
g327359
Figure15
1.Latcharm(rearcutting-unit
armlatch)
2.Frontofthemachine
13
