g330219

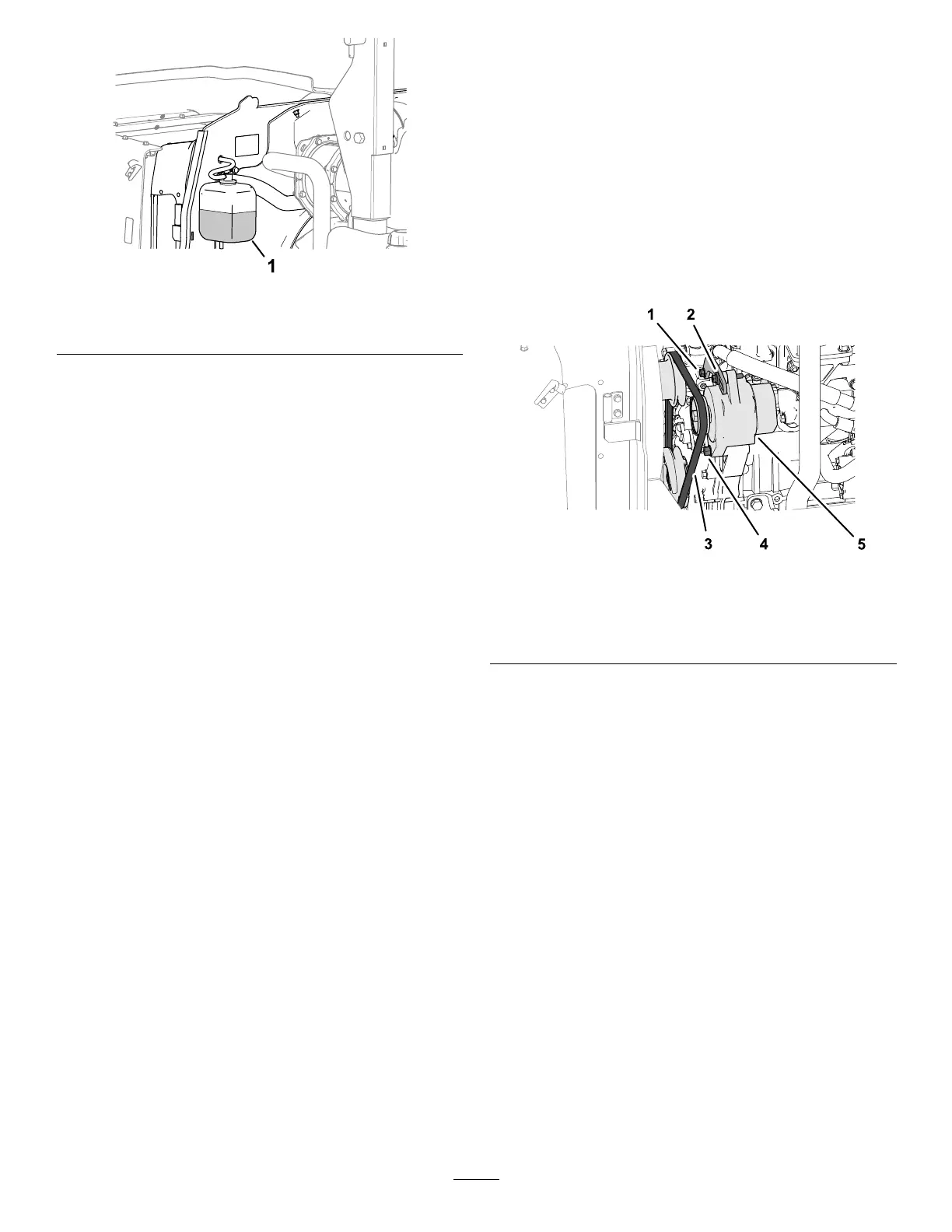

Figure66

1.Expansiontank

2.Ifthecoolantlevelislow,removethe

expansion-tankcapandreplenishthesystem.

Donotoverll.

3.Installtheexpansion-tankcap.

BeltMaintenance

ServicingtheAlternator

Belt

ServiceInterval:Aftertherst50hours

Every250hours

1.Apply10kgf(22lb)offorceagainstthealternator

belt(Figure67),midwaybetweenthepulleys.

Note:Thebeltshoulddeect10mm(3/8inch).

g295237

Figure67

1.Tensionbracketbolt4.Alternatorpivotbolt

2.Alternatortensionbolt5.Alternator

3.Belt

2.Ifthebelttensionisincorrect,performthe

following:

•Ifbeltdeectionislessthan10mm(3/8

inch),loosenthealternatorpivotboltand

tensionbolt(Figure67),andreducethebelt

tension.

•Ifbeltdeectionisgreaterthan10mm(3/8

inch),loosenthealternatorpivotboltand

tensionbolt(Figure67),andincreasethe

belttension.

Note:Ifneeded,loosenthetensionbracket

bolt(Figure67).

3.Tightenthebolts(Figure67).

4.Checkthedeectionofthebeltagaintoensure

correctbelttension.
