2
2
DESIGNED & ENGINEERED IN U.S.A.
LEVEL
10V 0.2
LPF
12

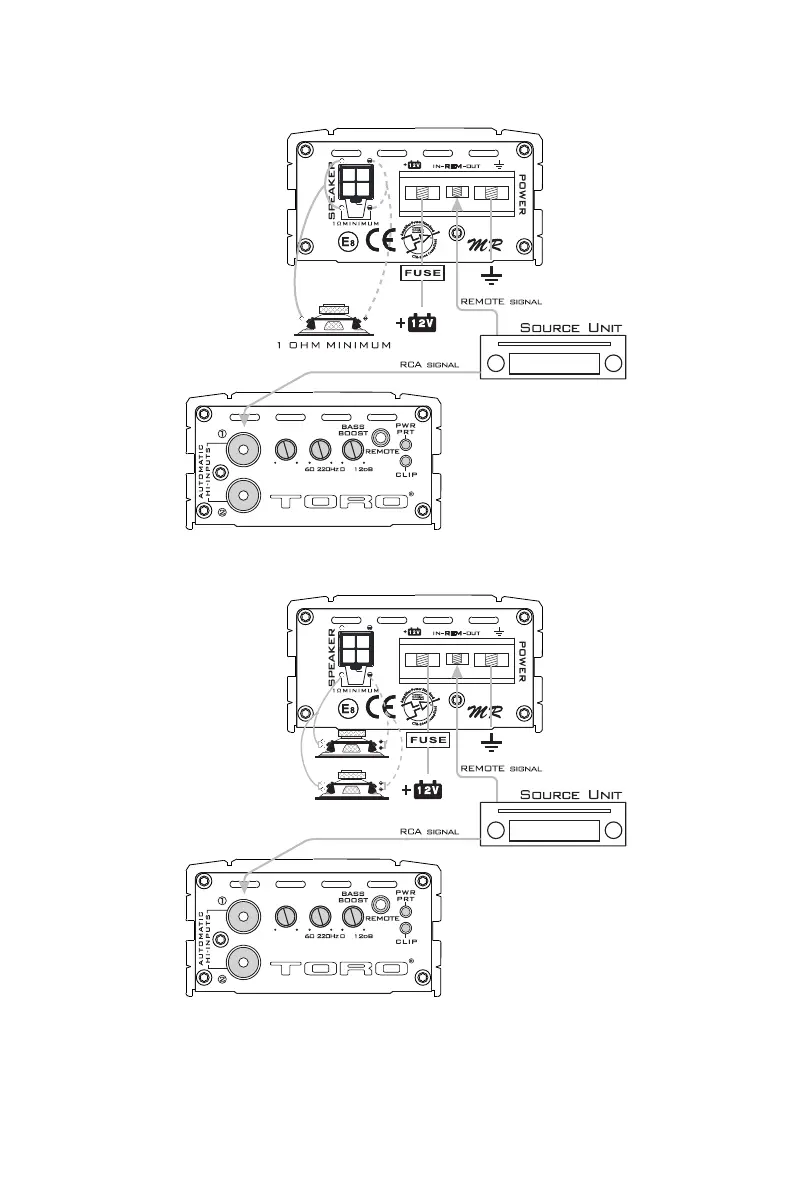

FIG7. MONO AMPLIFIER WIRING (SINGLE WOOFER LOAD)
WIRING DIAGRAM
FIG8. MONO AMPLIFIER WIRING (MULTI-WOOFER LOAD)
DESIGNED & ENGINEERED IN U.S.A.
LEVEL
10V 0.2
LPF
4 OH M
4 OH M
Tw o D U A L 4 O hm S U B
*EQUIVALENT PARALLEL WOOFER LOADS CANNOT BE LESS THAN THE MINIMUM STABLE LOAD RATED IN THIS
MANUAL. THE TWO NEGATIVE AND TWO POSITIVE SPEAKER TERMINALS ARE WIRED INTERNALLY INSIDE EACH
AMPLIFIER.
ONLY ONE NEGATIVE AND ONE POSITIVE ARE NEEDED WHEN WIRING TO THE AMPLIFIER.
