X2

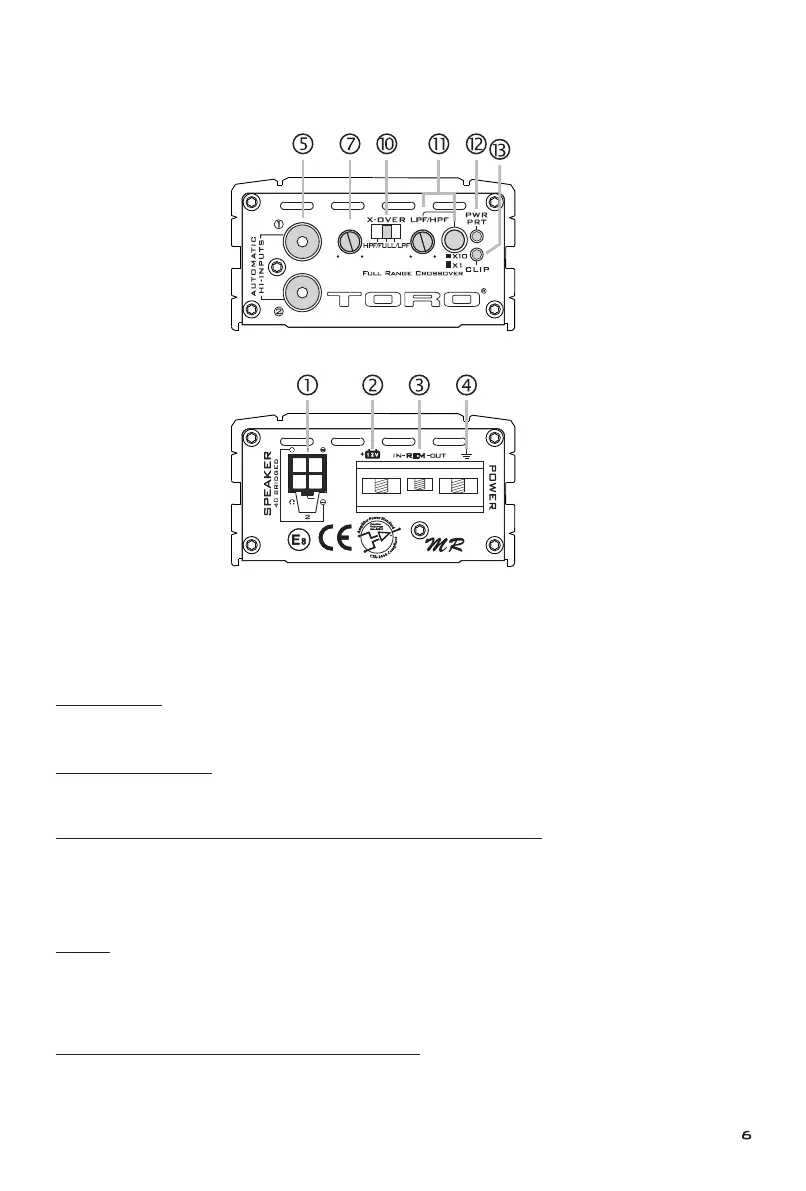

FIG4. 2-CH AMPLIFIER PANEL LAYOUT
1. SPEAKERS
CONNECT SPEAKERS/SUBWOOFERS TO THESE TERMINALS WITH USING THE SUPPLIED MOLEX CONNECTOR. BE
SURE TO CHECK WIRE FOR PROPER POLARITY. NEVER CONNECT THE SPEAKER CABLES TO CHASSIS GROUND.
2. +12 VOLT POWER
CONNECT THIS TERMINAL THROUGH A FUSE CIRCUIT BREAKER TO THE POSITIVE TERMINAL OF THE VEHICLE
BATTERY OR THE POSITIVE TERMINAL OF AN ISOLATED AUDIO SYSTEM BATTERY.
AMPLIFIER FUNCTIONS
3. AUTO SENSING TURN ON FUNCTION / REM OUT (HI-INPUTS)
WHEN USE HI-INPUT, THE AMP CAN DETECT THE DC OFFSET FROM THE HIGH-LEVEL INPUT SIGNAL TO AUTO
TURN ON/OFF. WHEN THE AMP TURNS ON, THE REM TERMINAL WILL OUTPUT +12V DC TO CONTROL THE OTHER
DEVICE TURN ON/OFF.
REM IN: WHEN USE LOW LEVEL INPUT, THE AMP REM IN SHOULD BE CONNECTED TO THE REMOTE OUT OF THE
SOURCE UNIT. THE HEAD UNIT CONTROLS THE AMP TURN ON/OFF.
MRX2
MRX2
DESIGNED & ENGINEERED IN U.S.A.
10
300Hz
LEVEL
10V 0.2
4. GND
CONNECT THIS CABLE DIRECTLY TO THE FRAME OF THE VEHICLE. MAKE SURE THE METAL FRAME HAS BEEN
STRIPPED OF ALL PAINT DOWN TO THE BARE METAL. USE THE SHORTEST DISTANCE POSSIBLE. IT IS ALWAYS A GOOD
IDEA TO REPLACE THE FACTORY GROUND AT THIS TIME WITH A LARGER CABLE AND CONNECT DIRECTLY TO THE
VEHICLES BATTERY GROUND TERMINAL OR ANY OTHER FACTORY GROUND POINTS.
5. RCA INPUT/AUTO HI-LOW LINE CONVERTOR
THESE RCA INPUT JACKS CONNECT WITH YOUR SOURCE UNITS RCA LOW LEVEL OUTPUTS OR VIA OPTIONAL
ADAPTER WITH YOUR SOURCE UNIT SPEAKER HIGH LEVEL OUTPUTS. THE USE OF HIGH QUALITY TWISTED COPPER
CAR AUDIO CABLES IS RECOMMENDED TO PREVENT THE POSSIBILITY OF DISTURBANCE TO THE AUDIO SIGNAL.
