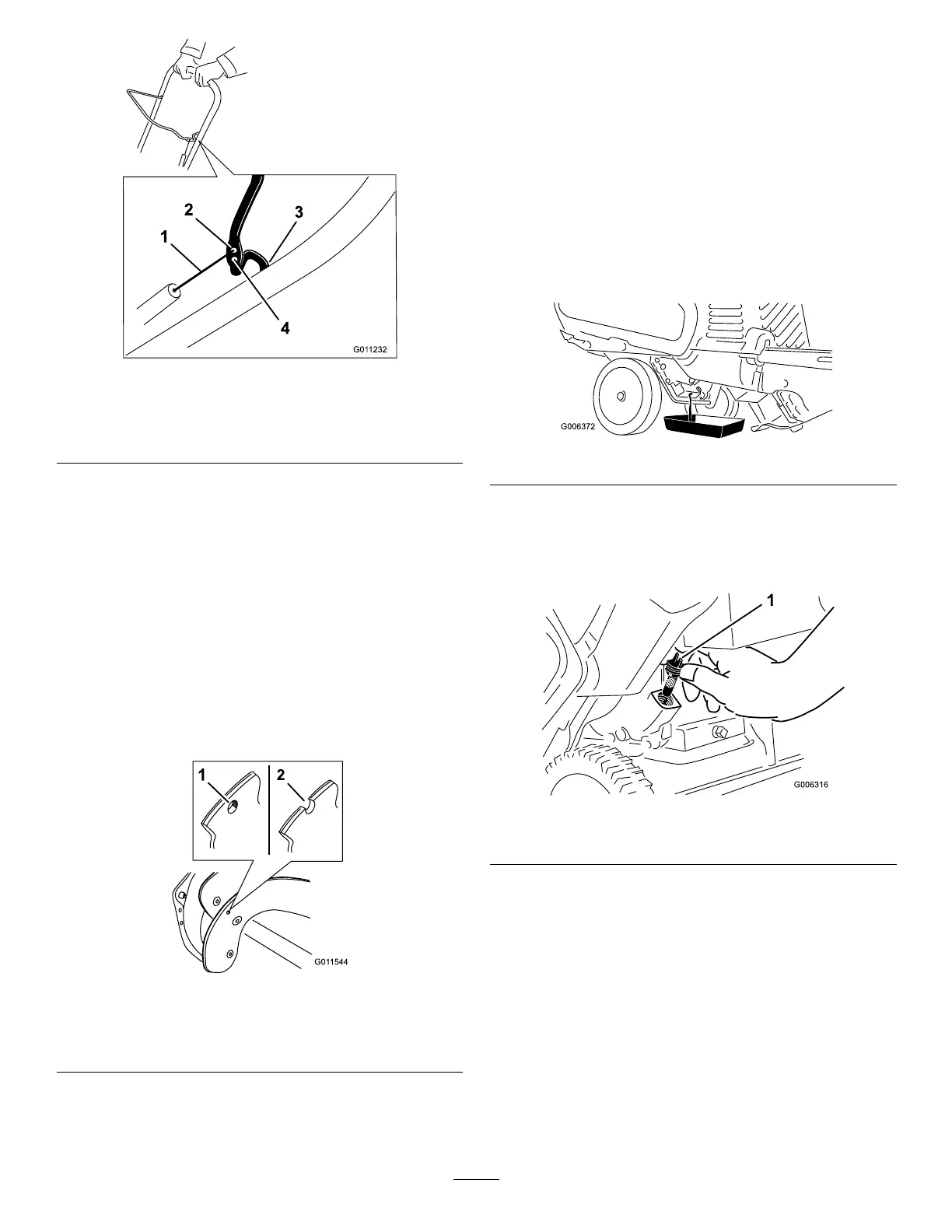

Figure27
1.Upperendofspring
3.Pivotpoint
2.Inserttheupperendof
springintothishole
4.Removetheupperendof
springfromthishole
Note:Thebeltmayslip(squeal)inwetconditions;
todryoutthedrivesystem,starttherotorandrunit
withoutaloadfor30seconds.
InspectingtheRotorBlades
ServiceInterval:Yearly—Inspecttherotorbladesandhave
anAuthorizedServiceDealerreplacethe
rotorbladesandscraperifnecessary.
Beforeeachsession,inspecttherotorbladesforwear.When
arotorbladeedgehasworndowntothewearindicatorhole,
haveanAuthorizedServiceDealerreplacetherotorblades
andthescraper(Figure28).
Figure28
1.Thewearindicatorholeis
intact;youdonotneedto
replacetherotorblades.
2.Thewearindicatorholeis
exposed;replacetherotor
blades.
ChangingtheEngineOil
ServiceInterval:Aftertherst2hours
Yearly
Runtheengineafewminutesbeforechangingtheoiltowarm
it.Warmoilowsbetterandcarriesmorecontaminants.
1.Siphonthefuelfromthefueltankintoanapproved
fuelcontainer,orruntheengineuntilitstops.
2.Movethemachinetoalevelsurface.
3.Placeanoildrainpanundertheoildrainplug,remove
theoildrainplug,andtipthemachinebackwardand
draintheusedoilintheoildrainpanFigure29).
Figure29
4.Afterdrainingtheusedoil,returnthemachinetothe
operatingposition.
5.Installtheoildrainplugandtightenitsecurely.
6.Cleanaroundtheoilllcap(Figure30).
Figure30
1.Oilllcap
7.Unscrewtheoilllcapandremoveit(Figure30).
8.Withthemachineintheoperatingposition,carefully
pouroilintotheoilllhole.Wait3minutesforthe
oiltosettleandaddenoughtobringittothepointof
overow .Thereshouldbeverylittle,ifany,oilleftin
thebottle.(Figure32).
Note:Youmaytipthemachineforward(handleup)
tomakeaddingoileasier.Remembertoreturnthe
machinetotheoperatingpositionbeforecheckingthe
oillevel.
Important:Donottipthemachinealltheway
forwardontoitsnose,orfuelmayleakoutofthe
machine.
