Toro Power Max 724 User Manual

3.Squeezethelefthand(traction)levertothehand-grip
(Figure14).
Figure14
Themachineshouldmoverearward.Ifthemachine
doesnotmoveormovesforward,completethe
following:
A.Releasethetractionleverandstoptheengine.
B.Disconnectthetrunnionfromthespeedselector
lever(Figure5).
C.Turnthetrunniondownward(clockwise)onthe
speedcontrolrod(Figure5).
D.Connectthetrunniontothespeedselectorlever
(Figure5).
4.Releasethetractionlever.
5.MovethespeedselectortothePosition1;referto
OperatingtheSpeedSelector.
6.Squeezethelefthand(traction)levertothehand-grip
(Figure14).
Themachineshouldmoveforward.Ifthemachine
doesnotmoveormovesrearward,completethe
following:
A.Releasethetractionleverandstoptheengine.
B.Disconnectthetrunnionfromthespeedselector
lever(Figure5).
C.Turnthetrunnionupward(counterclockwise)on
thespeedcontrolrod(Figure5).
D.Connectthetrunniontothespeedselectorlever
(Figure5).
7.Ifyoumadeanyadjustments,repeatthisprocedure
untilnoadjustmentsarerequired.
Important:Ifthemachinemoveswhenthetraction
leverisinthereleasedposition,checkthetractioncable
(refertoCheckingandAdjustingtheTractionCable)or
takethemachinetoanAuthorizedServiceDealerfor
service.

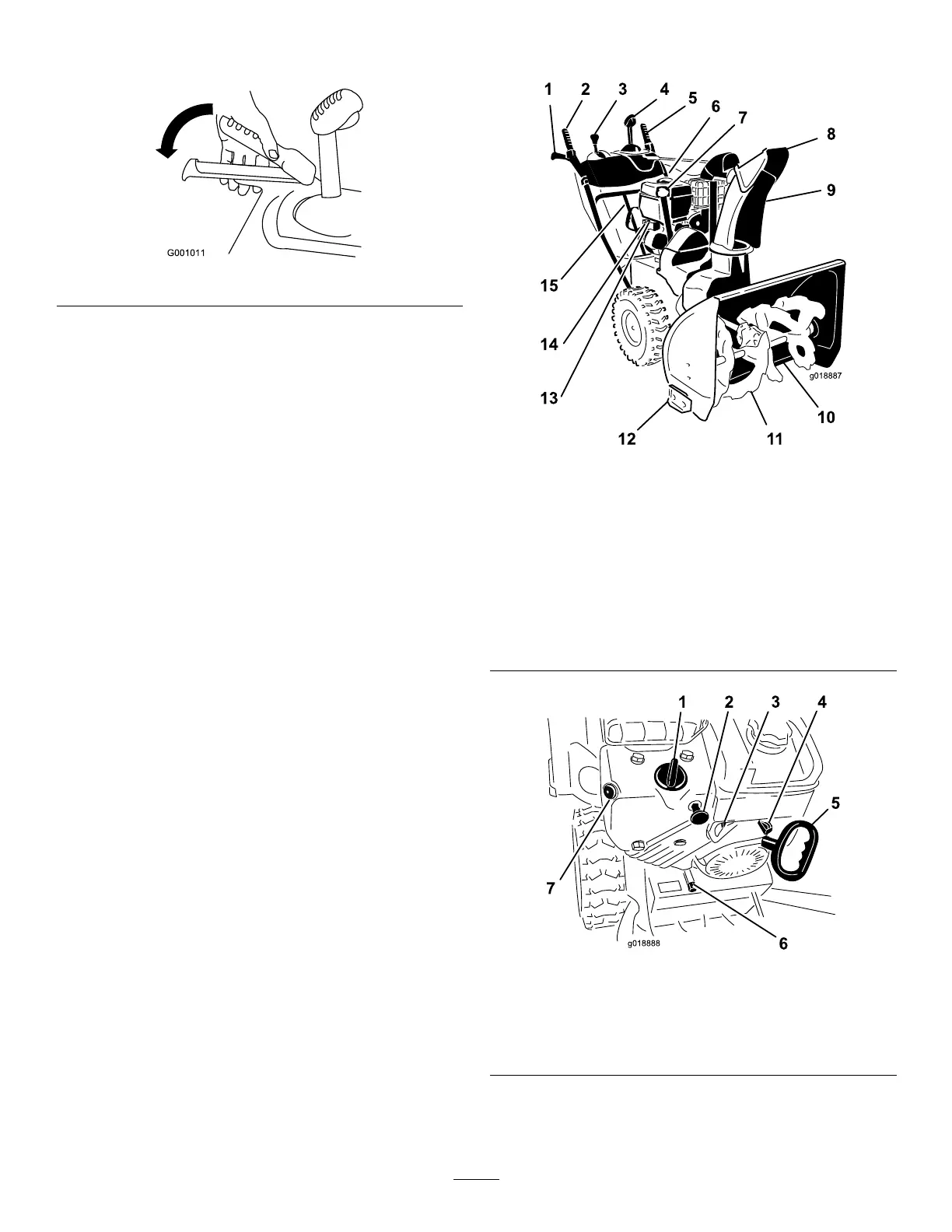

ProductOverview
g018887
Figure15
1.Hand-grip(2)
9.Dischargechute
2.Auger/impellerlever10.Scraper
3.Speedselectorlever
11.Auger
4.QuickStick™discharge
chutecontrol
12.Skid(2)
5.Tractionlever13.Electricstarterbutton
6.Fueltankcap14.Electricstarterplug-in
7.Engineoillltube/dipstick15.Snowcleanouttool
8.Chutedeector
g018888
Figure16
1.Choke
5.Recoilstarter
2.Ignitionswitch
6.Oildrainplug
3.Fuelshutoffvalve
7.Primer
4.Throttle
12
