CheckingandAdjustingthe
Auger/ImpellerCable
ServiceInterval:Aftertherst2hours—Inspectthe
auger/impellercableandadjustitif
necessary.
Yearly—Inspecttheauger/impellercableandadjust
orreplaceitifnecessary.
1.Loosenthejamnut.
2.Engagetheauger/impellerleverandholditinplace
(Figure39).

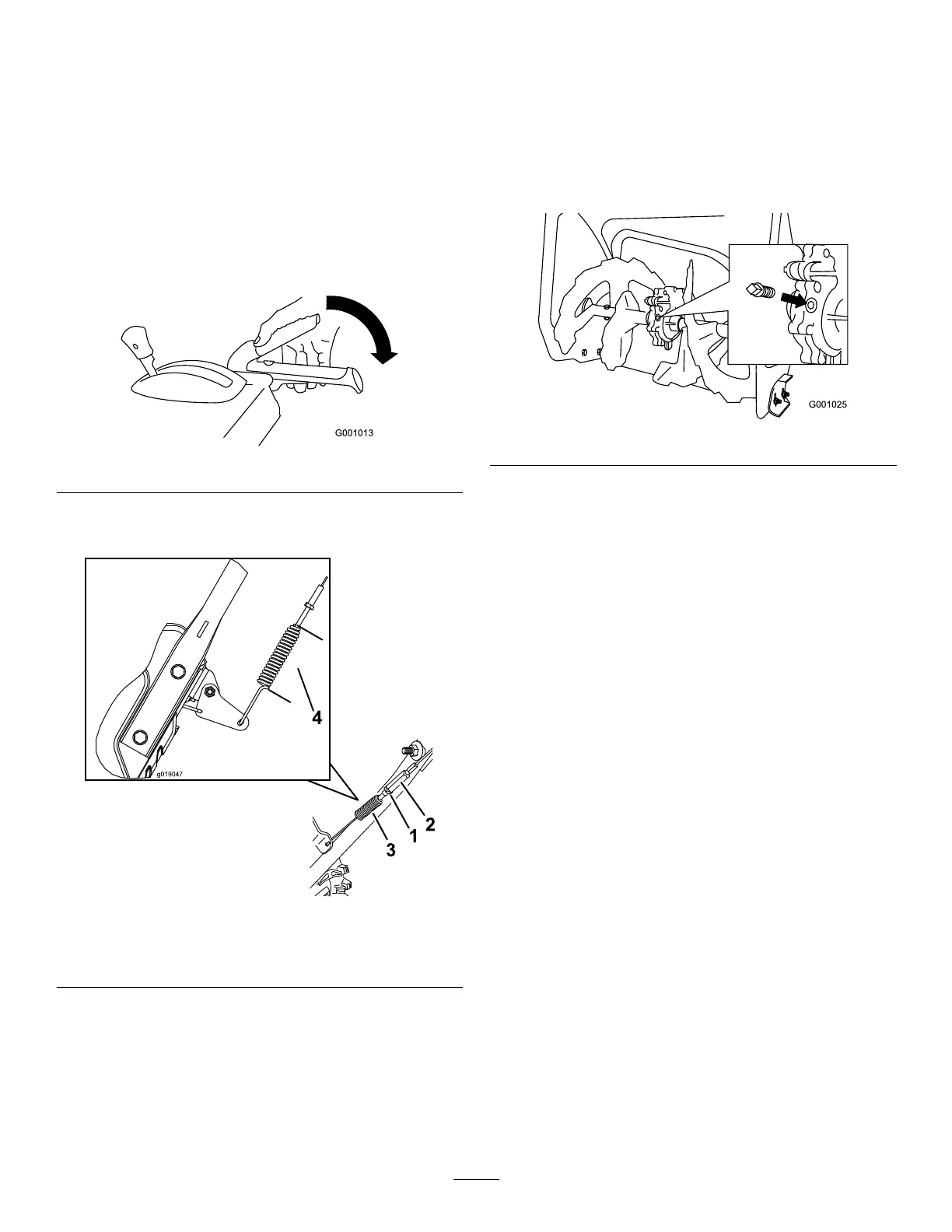

Figure39
3.Loosenortightentheturnbuckletoadjustthespring
lengthto2.75inches(7cm)(Figure40)
2
1
3
g019047
4
Figure40
1.Jamnut
3.Spring
2.Turnbuckle
4.2.75inches(7cm)
4.Tightenthejamnut(Figure40),ensuringthereisslight
tensiononthecable.
5.Iftheauger/impellercableisproperlyadjustedbut
aproblemremains,contactanAuthorizedService
Dealer.
CheckingtheAugerGearbox
OilLevel
ServiceInterval:Yearly—Checktheaugergearboxoiland
addoilifnecessary.
1.Movethemachinetoalevelsurface.
2.Cleantheareaaroundthepipeplug(Figure41).
Figure41
3.Removethepipeplugfromthegearbox.
4.Checktheoillevelinthegearbox.Theoilshouldbe
3/8inch(9.5mm)belowthelleropening.
5.Iftheoillevelislow ,addGL-5orGL-6,SAE80-90
EPgearoillubricanttothegearboxuntiltheoillevel
is3/8inchbelowthelleropening.
Note:Donotusesyntheticoil.
6.Installthepipepluginthegearbox.
21
