Toro Recycler 20378 User Manual

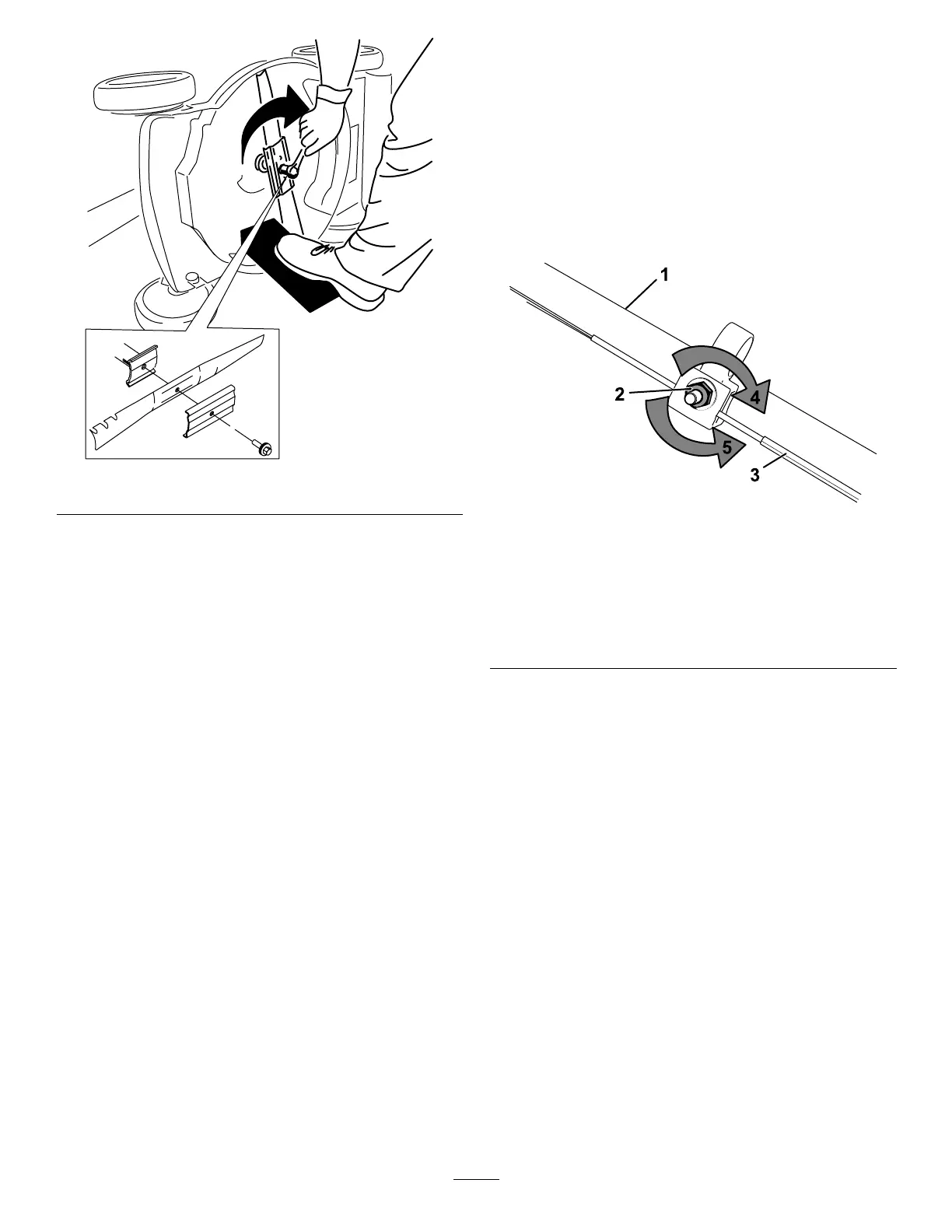

g231390
Figure26
Important:Positionthecurvedendsofthe
bladetopointtowardthemachinehousing.
6.Useatorquewrenchtotightenthebladebolt
to82N∙m(60ft-lb).
Important:Abolttorquedto82N∙m(60
ft-lb)isverytight.Whileholdingtheblade
withablockofwood,putyourweight
behindtheratchetorwrenchandtightenthe
boltsecurely.Thisboltisverydifcultto
overtighten.
AdjustingtheSelf-Propel
Drive
ForSelf-Propel-DriveModelsOnly
Wheneveryouinstallanewself-propelcableorif
theself-propeldriveisoutofadjustment,adjustthe
self-propeldrive.
1.Turntheadjustmentnutcounterclockwiseto
loosenthecableadjustment(Figure27).
g269307
Figure27
1.Handle(leftside)
4.Turnthenutclockwiseto
tightentheadjustment.
2.Adjustmentnut5.Turnthenut
counterclockwiseto
loosentheadjustment.
3.Self-propel-drivecable
2.Adjustthetensiononthecable(Figure27)by
pullingitbackorpushingitforwardandholding
thatposition.
Note:Pushthecabletowardtheengineto
increasethetraction;pullthecableawayfrom
theenginetodecreasethetraction.
3.Turntheadjustmentnutclockwisetotightenthe
cableadjustment.
Note:Tightenthenutrmlywithasocketor
wrench.
19

Toro Recycler 20378 Specifications

General

Engine	Briggs & Stratton
Engine Displacement	140cc
Cutting Width	22 inches
Cutting Height	1.0 - 4.0 inches
Drive System	Front-Wheel Drive
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Weight	83 lbs
Power Source	Gasoline
Starting System	Recoil
Deck Material	Steel
Starter Type	Recoil
Type	Walk-Behind Mower
Fuel Capacity	0.25 gallons
Wheel Size	8 inches front
Fuel Tank Capacity	0.25 gallons
Warranty	2-Year Full Coverage
Cutting Height Positions	9 positions
