Toro Recycler 20378 User Manual

ProductOverview

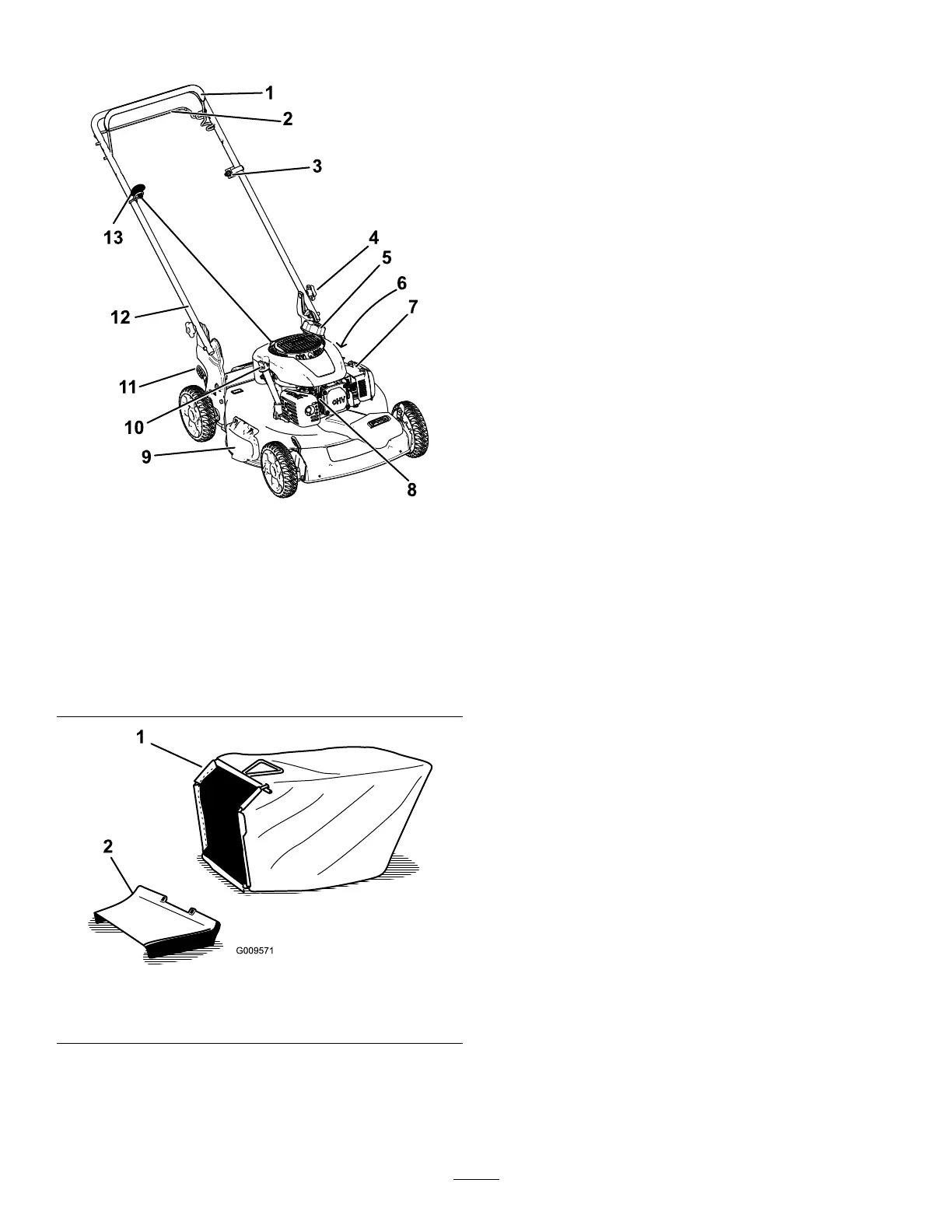

g270209
Figure7
1.Blade-controlbar
8.Sparkplug
2.Self-propel-drivebar9.Side-dischargedeector
3.Adjustmentforthe
self-propeldrive
10.Oilll/dipstick
4.Handleknob(2)11.Cutting-heightlever(4)
5.Fuel-tankcap12.Handle
6.Washoutport(notshown)
13.Recoil-starthandle
7.Airlter
g009571
Figure8
1.Grassbag2.Side-dischargechute
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
BeforeOperation
BeforeOperationSafety
GeneralSafety
•Alwaysshutoffthemachine,waitforallmoving
partstostop,andallowthemachinetocoolbefore
adjusting,servicing,cleaning,orstoringit.
•Becomefamiliarwiththesafeoperationofthe
equipment,operatorcontrols,andsafetysigns.
•Checkthatallguardsandsafetydevices,suchas
deectorsand/orgrasscatcher,areinplaceand
functioningproperly.
•Alwaysinspectthemachinetoensurethatthe
bladesandbladeboltsarenotwornordamaged.
•Inspecttheareawhereyouwillusethemachine,
andremoveallobjectsthatcouldinterferewith
theoperationofthemachineorthatthemachine
couldthrow.
•Contactwiththemovingbladewillcauseserious
injury.Donotputyourngersunderthehousing
whenadjustingthecuttingheight.
FuelSafety
•Fuelisextremelyammableandhighlyexplosive.
Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.
–Topreventastaticchargefromignitingthefuel,
placethecontainerand/ormachinedirectlyon
thegroundbeforelling,notinavehicleoron
anobject.
–Fillthefueltankoutdoors,inanopenarea,
whentheengineiscold.Wipeupanyfuelthat
spills.
–Donothandlefuelwhensmokingoraroundan
openameorsparks.
–Donotremovethefuelcaporaddfueltothe
tankwhiletheengineisrunningorhot.
–Ifyouspillfuel,donotattempttostartthe
engine.Avoidcreatingasourceofignitionuntil
thefuelvaporshavedissipated.
–Storefuelinanapprovedcontainerandkeep
itoutofthereachofchildren.
•Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.
7

Toro Recycler 20378 Specifications

General

Engine	Briggs & Stratton
Engine Displacement	140cc
Cutting Width	22 inches
Cutting Height	1.0 - 4.0 inches
Drive System	Front-Wheel Drive
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Weight	83 lbs
Power Source	Gasoline
Starting System	Recoil
Deck Material	Steel
Starter Type	Recoil
Type	Walk-Behind Mower
Fuel Capacity	0.25 gallons
Wheel Size	8 inches front
Fuel Tank Capacity	0.25 gallons
Warranty	2-Year Full Coverage
Cutting Height Positions	9 positions
