Service Interval Chart
If you leave the key in the ignition switch, someone
could accidently start the engine and seriously
injure you or other bystanders.
Remove the key from the ignition switch and lower
the cutting units to the ground before servicing or
making adjustments to the machine.
Caution
Greasing the Bearing and
Bushings
The machine has grease fittings that must be lubricated
regularly with No. 2 General Purpose Lithium Base Grease.
If machine is operated under normal conditions, lubricate
all bearings and bushings after every 50 hours of operation.
Lubricate bearings and bushings immediately after every
washing, regardless of the interval listed.
The grease fitting locations and quantities are: Engine
Drive shaft (3), (Fig. 38); Cutting unit carrier frame and
pivot (2 ea.), (Fig. 39); Lift arm pivots (5), Drive shaft
clutch (1) (Fig. 40); Rear axle tie rod (2), Steering cylinder
ball joints (2), Axle steering pivots (2) Rear axle pivot (1)
(Fig. 41); Traction control linkage at transmission (1),
Drive shaft support bearing (1), Rear axle drive shaft (3)
(Fig. 42); Brake pedal (1) (Fig. 43); Lift cylinders (5)
(Fig. 44) and Fan shaft (Fig. 45).

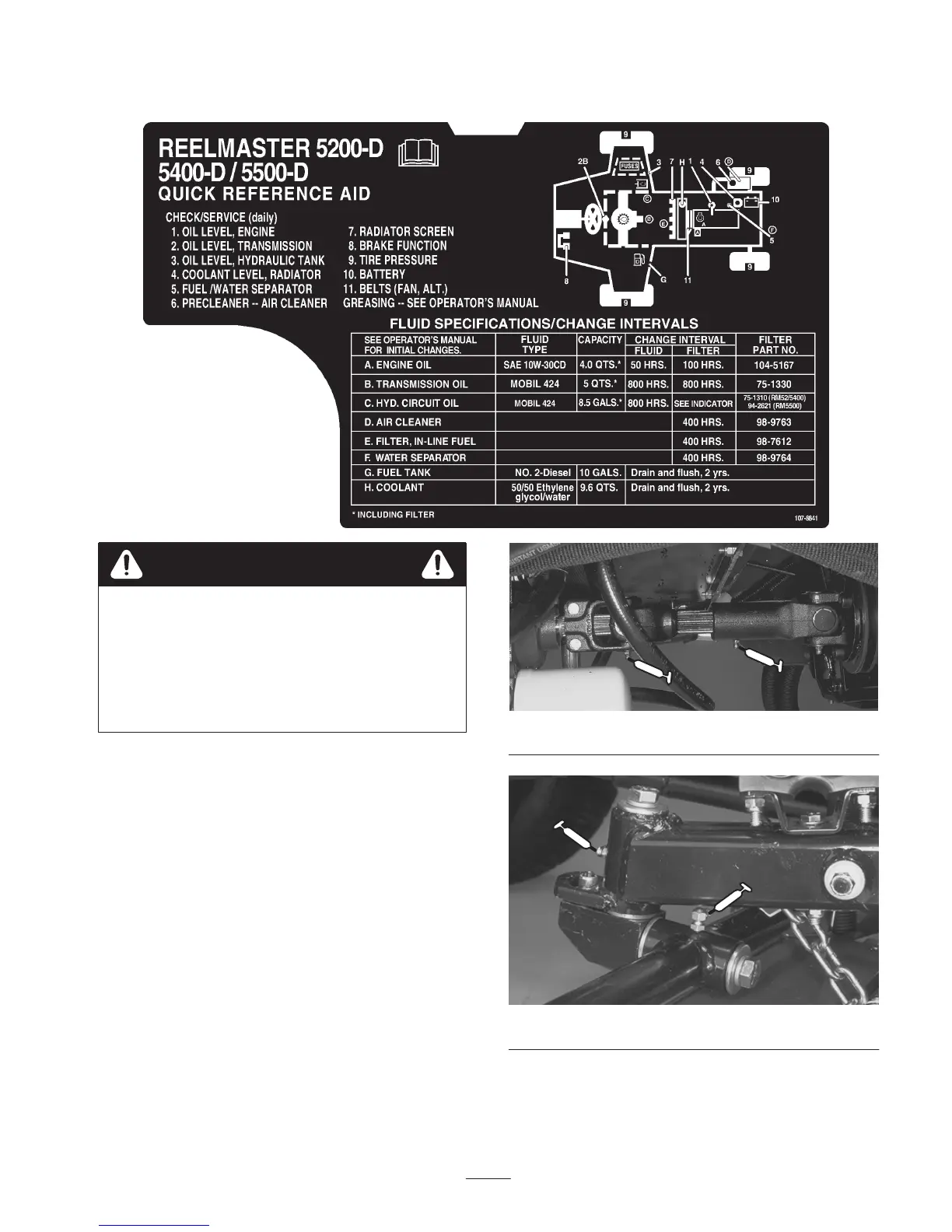

Figure 38
Figure 39
