Forward
1. Move the levers to the center, unlocked
position.
2. To go forward, slowly push the motion
control levers forward (Figure 13).

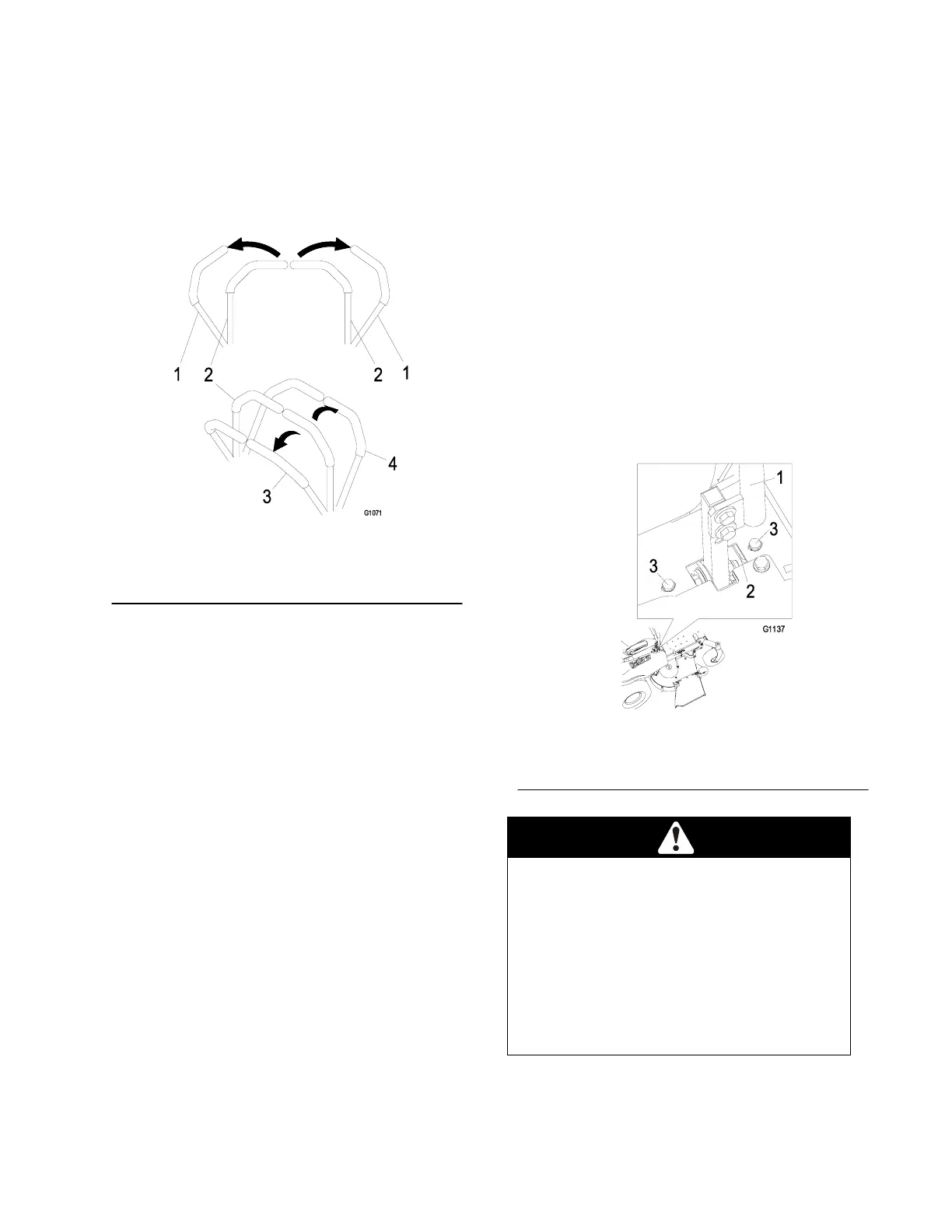

Figure 13
1. Neutral position 3. Forward
2. Center unlock position 4. Backward
To go straight, apply equal pressure to both
motion control levers (Figure 13).
To turn, pull back on the motion control lever
toward the direction you want to turn
(Figure 13).
The farther you move the motion control
levers in either direction, the faster the
machine will move in that direction.
To stop, pull the motion control levers to
neutral.
Backward
1. Move the levers to the center, unlocked
position.
2. To go backward, slowly pull the motion
control levers rearward (Figure 13).
To go straight, apply equal pressure to
both motion control levers (Figure 13).
To turn, release the pressure on the
motion control lever toward the direction
you want to turn (Figure 13).
To stop, push the motion control levers to
neutral.
Stopping the Machine
To stop the machine, move the motion control
levers to neutral and outward to the neutral
position, disengage the blade control switch,
and turn the ignition key to off. Remember to
remove the key from the ignition switch.
Tracking Adjustment
If the machine turns right or left when handles
are pushed forward together, adjust the stop
on the side opposite the direction of turn (see
Figure 14). Loosen the screws that hold the
motion control limiter stop. Move the stop
back until the unit drives straight. Tighten the
screws to lock the stop in place. Readjust
handles if necessary.
Figure 14
1. Control Arm Shaft 3. Limiter Stop Screws
2. Adjust Stop
Children or bystanders may be injured
if they move or attempt to operate the
mower while it is unattended.
• Always remove the ignition key and
move the motion control levers
outward to the neutral position and
apply the parking brake when
leaving the machine unattended,
even if just for a few minutes.
