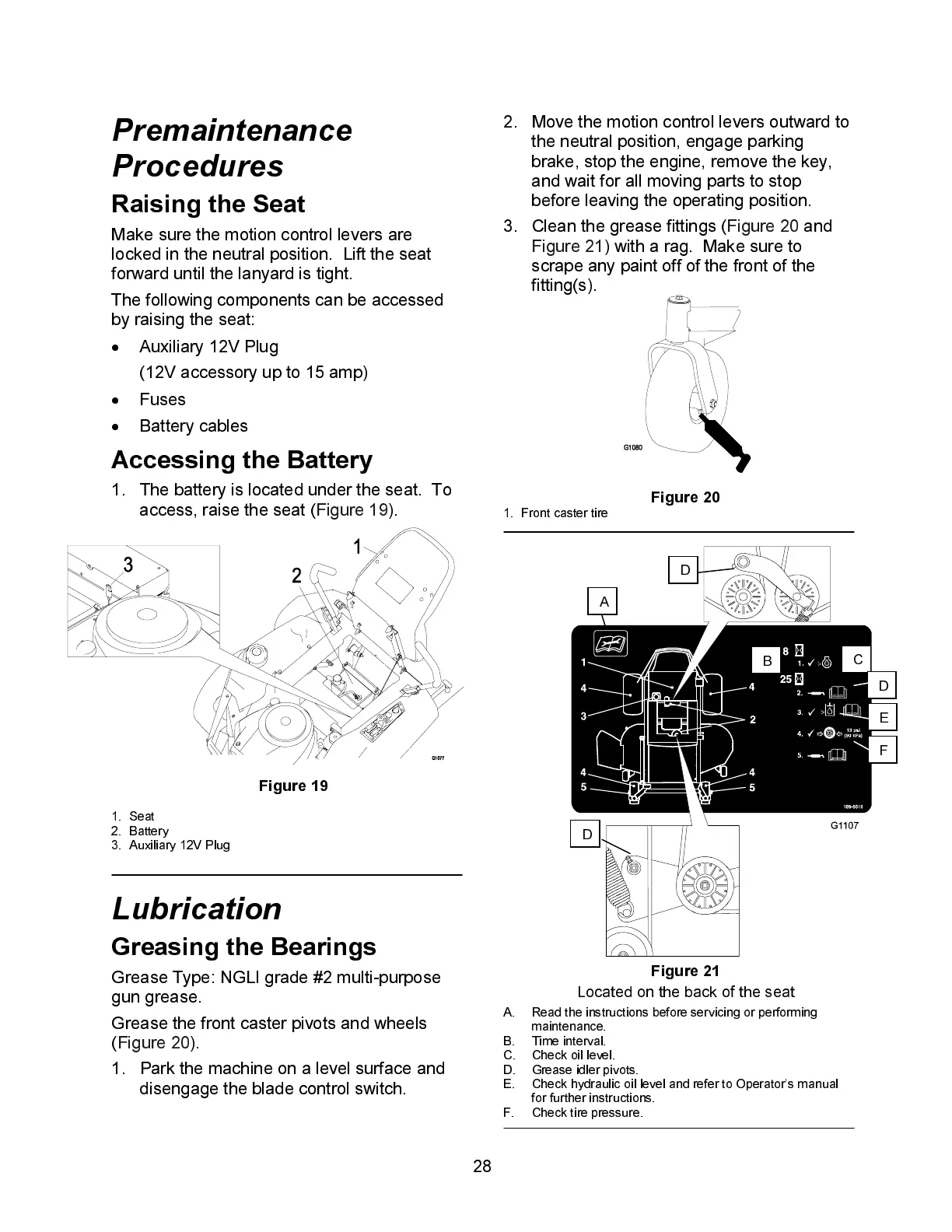

Premaintenance
Procedures
Raising the Seat
Make sure the motion control levers are
locked in the neutral position. Lift the seat
forward until the lanyard is tight.
The following components can be accessed
by raising the seat:
• Auxiliary 12V Plug
(12V accessory up to 15 amp)
• Fuses
• Battery cables
Accessing the Battery
1. The battery is located under the seat. To
access, raise the seat (Figure 19).

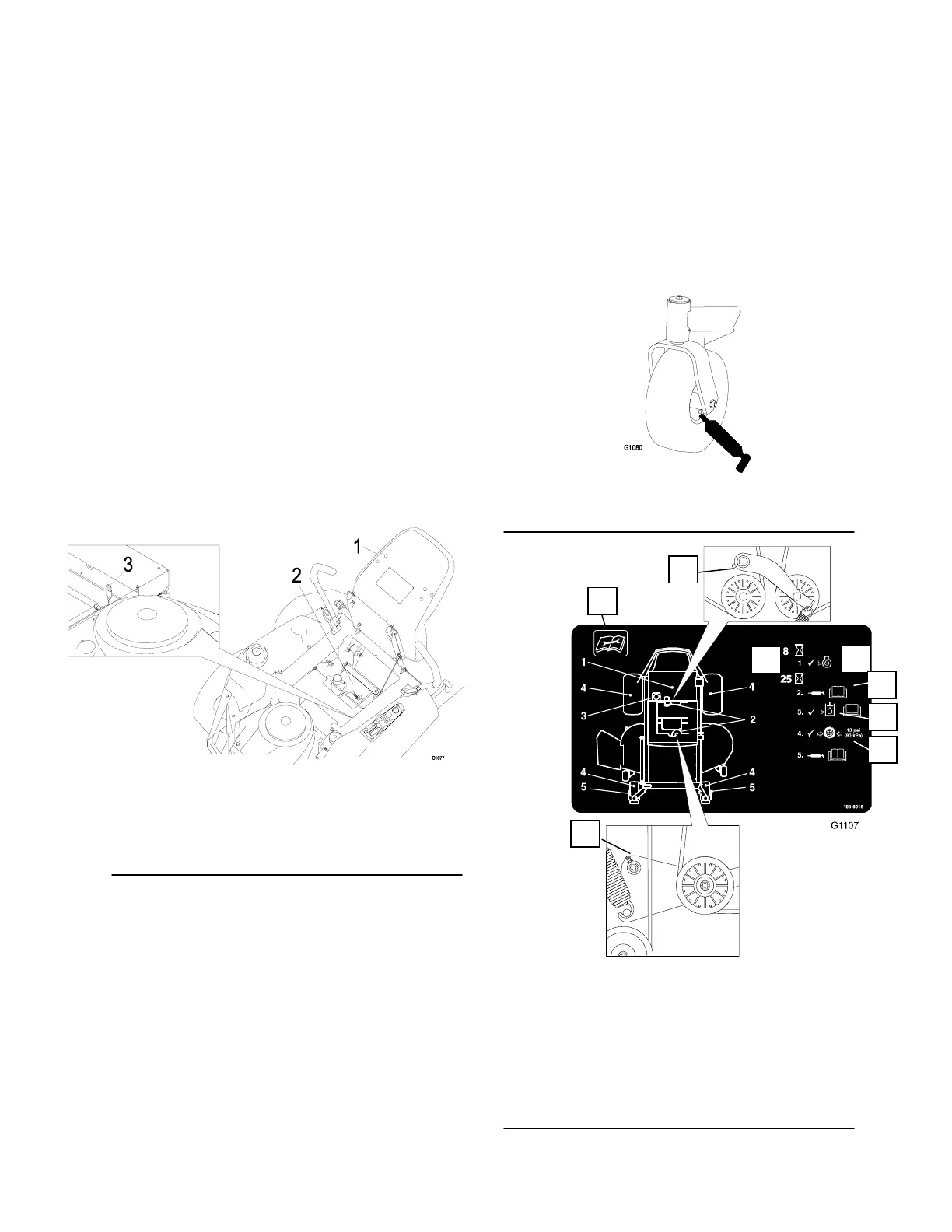

Figure 19
1. Seat
2. Battery
3. Auxiliary 12V Plug
Lubrication
Greasing the Bearings
Grease Type: NGLI grade #2 multi-purpose
gun grease.
Grease the front caster pivots and wheels
(Figure 20).
1. Park the machine on a level surface and
disengage the blade control switch.
2. Move the motion control levers outward to
the neutral position, engage parking
brake, stop the engine, remove the key,
and wait for all moving parts to stop
before leaving the operating position.
3. Clean the grease fittings (Figure 20 and
Figure 21) with a rag. Make sure to
scrape any paint off of the front of the
fitting(s).
Figure 20
1. Front caster tire
Figure 21
Located on the back of the seat
A. Read the instructions before servicing or performing
maintenance.
B. Time interval.
C. Check oil level.
D. Grease idler pivots.
E. Check hydraulic oil level and refer to Operator’s manual
for further instructions.
F. Check tire pressure.
