5.5 External start using key switch
ere is a safety circuit with key-operated switch for checking whether any unauthorized people are in the
danger zone / area to be watered.
e key-operated switch gets tted in a position from which the whole danger zone can be clearly seen.
Watering begins only when the operator gives the all-clear by turning the key.
5.6 Cabling
3-core cable laid during installation to the TS170 pop-up sprinkler’s electrical connection.
e cable is pulled through the right or left opening on the bottom of the housing into the cable
compartment.

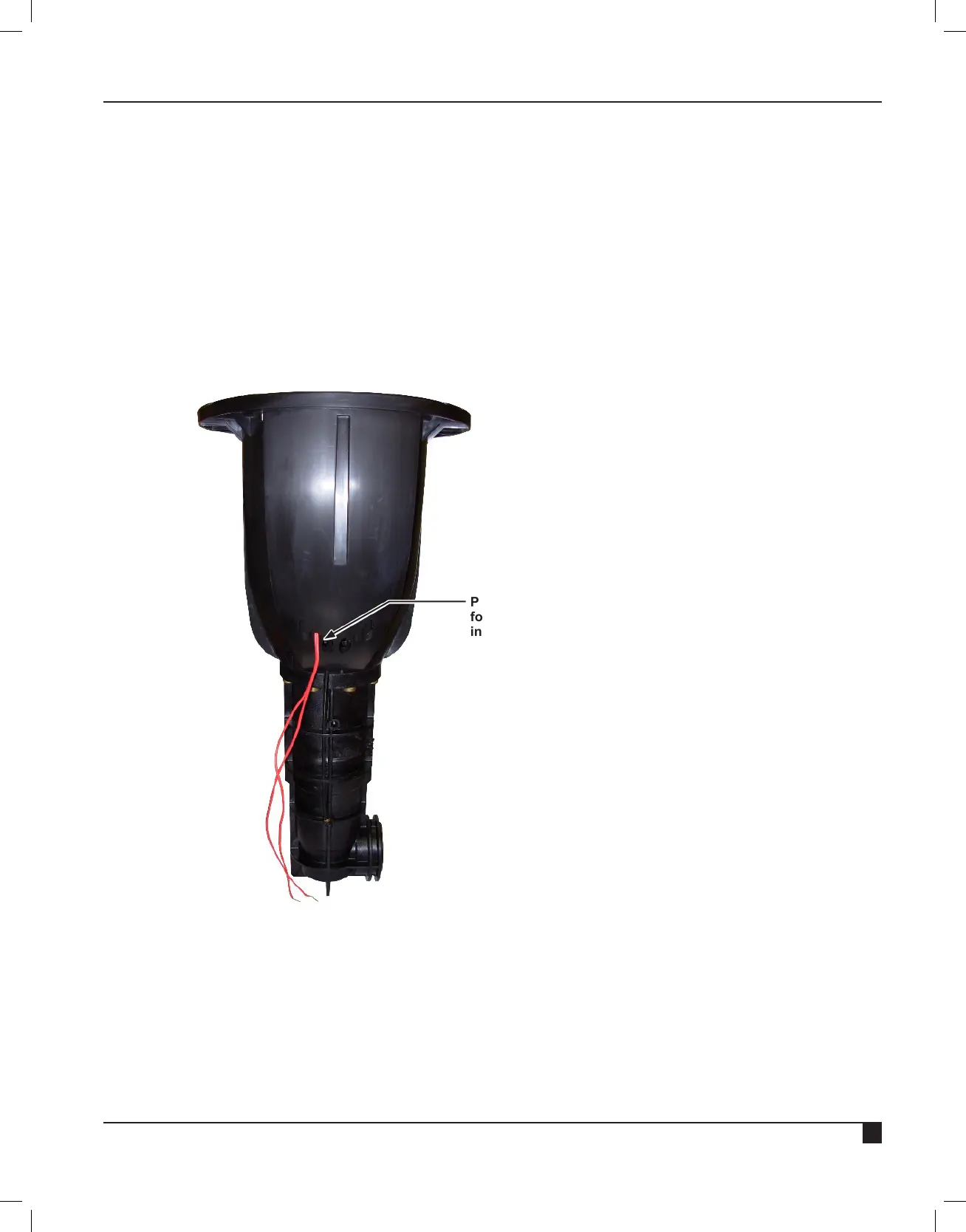

Possible location
for pulling in the control cable
into the sprinkler
