Adjusting Dial-A-Height
The Dial-A-Height control (Fig. 30) is used to limit
the downward travel of the attachment. The
Dial-A-Height knob is rotated to change the location
of this stop, up or down.
1. Raise the attachment lift: Refer to Raising
Attachments. In the raised position the
Dial-A-Height knob (Fig. 30) can be rotated to
change the stop location. Turn clockwise to raise
and counterclockwise to lower the height of the
attachment.
2. The Dial-A-Height indicator (Fig. 30) will show
the change, high to low, in attachment lift height
as adjustment is made.
Adjusting Discharge Chute
POTENTIAL HAZARD
• Rotating auger can cut off fingers, hands or
other body parts and throw objects.
WHAT CAN HAPPEN
• Contact with rotating auger and thrown
debris can cause severe injury or death.
HOW TO AVOID THE HAZARD
• Stay away from the discharge and auger
openings while operating the snowthrower.
• Keep your hands, feet, and any other part
of your body or clothing away from
concealed, moving or rotating parts.
• Use a stick, not your hand, to remove
obstructions from discharge chute or auger
housing.
• Before adjusting, cleaning, repairing and
inspecting the snowthrower and before
unclogging the discharge chute, shut off the
engine and wait for all moving parts to
stop. Move the power take off (PTO) to
“OFF” and rotate the ignition key to
“OFF.” Remove the key.
The discharge chute can be rotated 180° side to side.
The direction is controlled by turning the crank
handle (Fig. 32).
The chute deflector, on top of the discharge chute, can
be moved up and down to control the height and
distance snow is thrown (Fig. 32).
1290a1292a
3
2
1

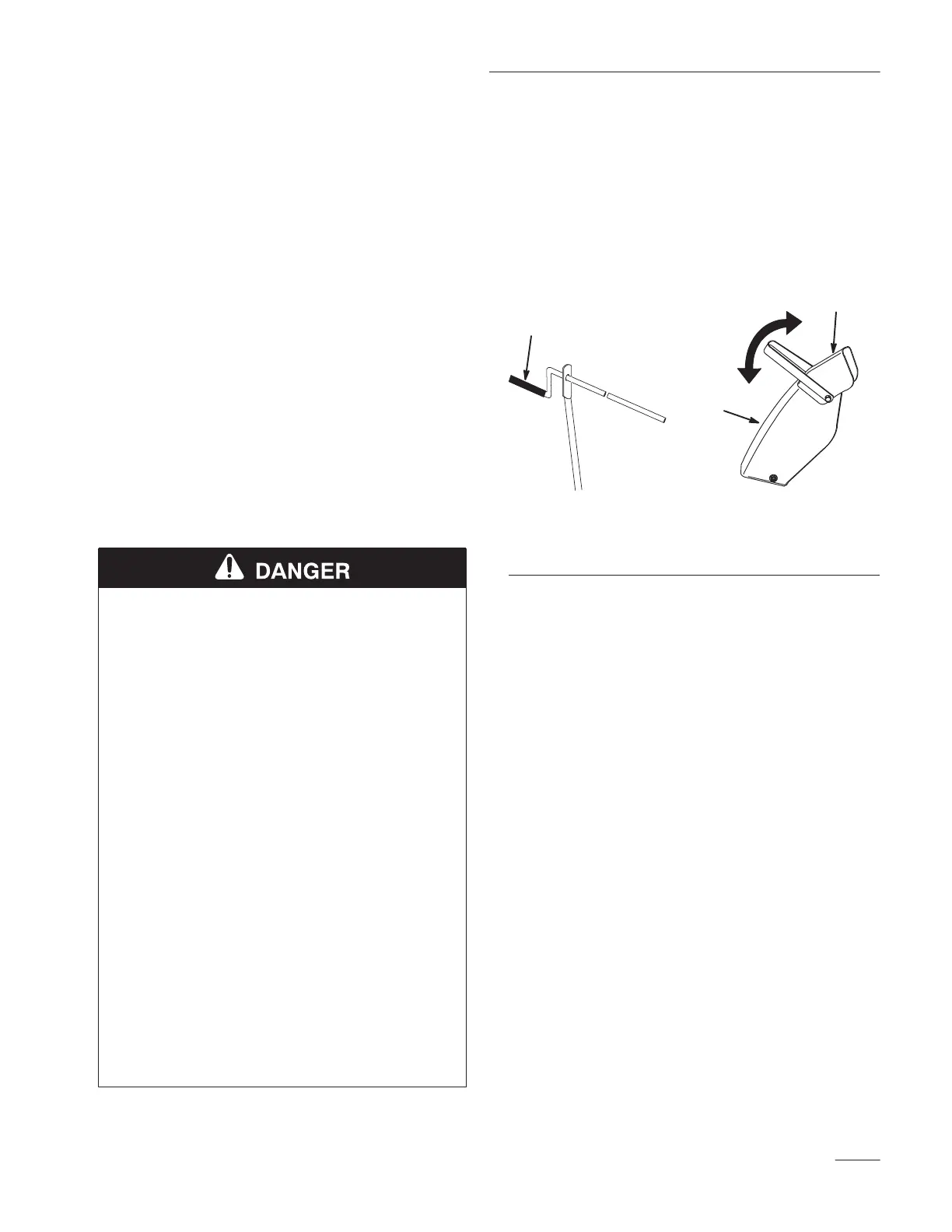

Figure 32
1. Discharge chute
2. Crank handle
3. Chute deflector
