Folding
the
Rear-Facing
Seat
1.
Remove
the
rear-seat
handle
and
lay
it
at
on
the
footrest
lining
up
the
tab
on
the
handle
with
the
handle
hole
on
the
footrest
(
Figure
12
).
2.
Secure
the
handle
to
the
footrest
using
the
hold-down
strap
and
countersunk
screw
on
the
rear-seat
handle
(
Figure
12
).
g244241

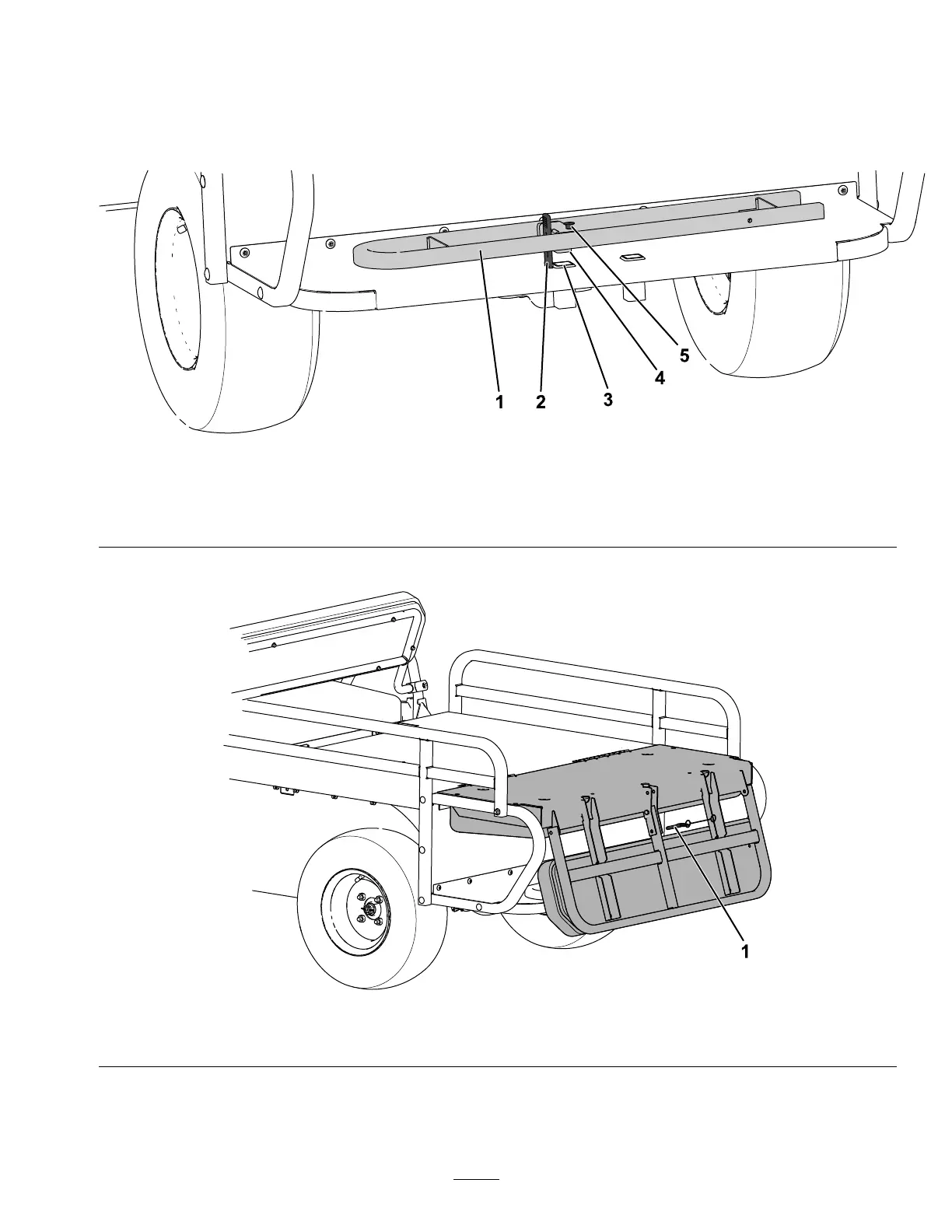

Figure
12
1.
Rear-seat
handle
4.
Notch
2.
Hold-down
strap
5.
Countersunk
screw
3.
Handle
hole
3.
Rotate
the
seat
forward
and
remove
the
quick
pin
(
Figure
13
).
g244252
Figure
13
1.
Quick
pin
7
6
8
Table of Contents
Table of Contents
2
Hex Nut (3/8 Inch)
4
Button-Head Screw (3/8 X 1 Inch)
4
Rear-Seat Handle
7
Hold-Down Strap
7
Countersunk Screw (1/4 Inch)
7
Figure 12
7
