1800 Series User Manual
16
WIRING THE UNIT
Select the wire size appropriate for the 1800 model being installed. (See Ap-
pendix E, 1800 Model/Wire Size Specications.)
All wiring is to be tightened to 13 lb-in(1.5 N•m) of torque
UPS POWER CONNECTIONS

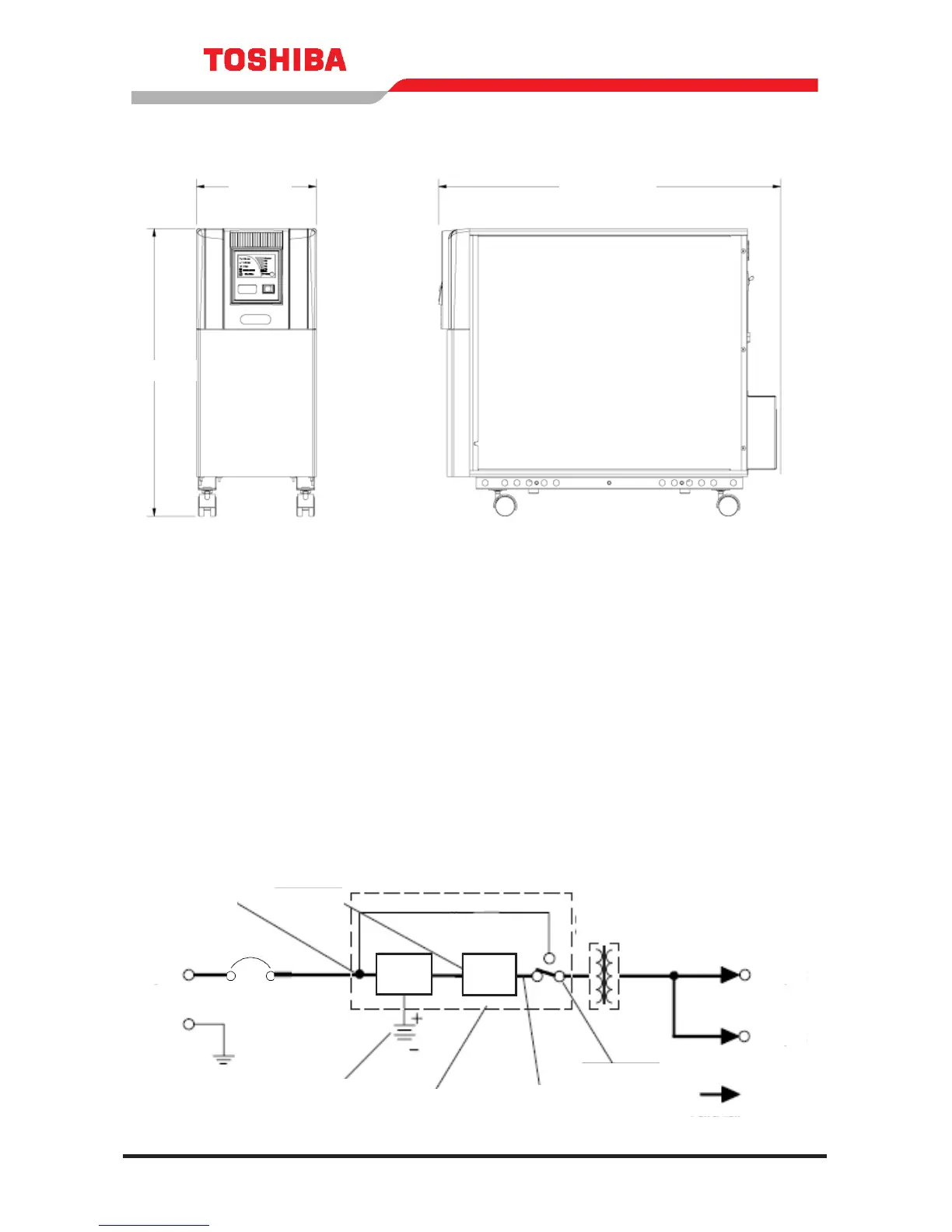

System Protection Features - The schematic shown below depicts the
electrical locations of the protection devices of the UG1G2L024C6TB
typeform UPS.
EXTERNAL DIMENSIONS
23.3 in.
9.9 in.
28.3 in. Max
Breaker
Input
Abnormal
Current Limit
Overload
Low Battery
Level
Overheating
Overcurrent
Overvoltage/
Undervoltage
Input
Reactor/
Charger/
Chopper
Output
Output
Inverter
Bypass
ISOLATION
OUTPUT XFMR
Power Flow
Batteries
To Next Page
