Toshiba 21T01F User Manual

3-2

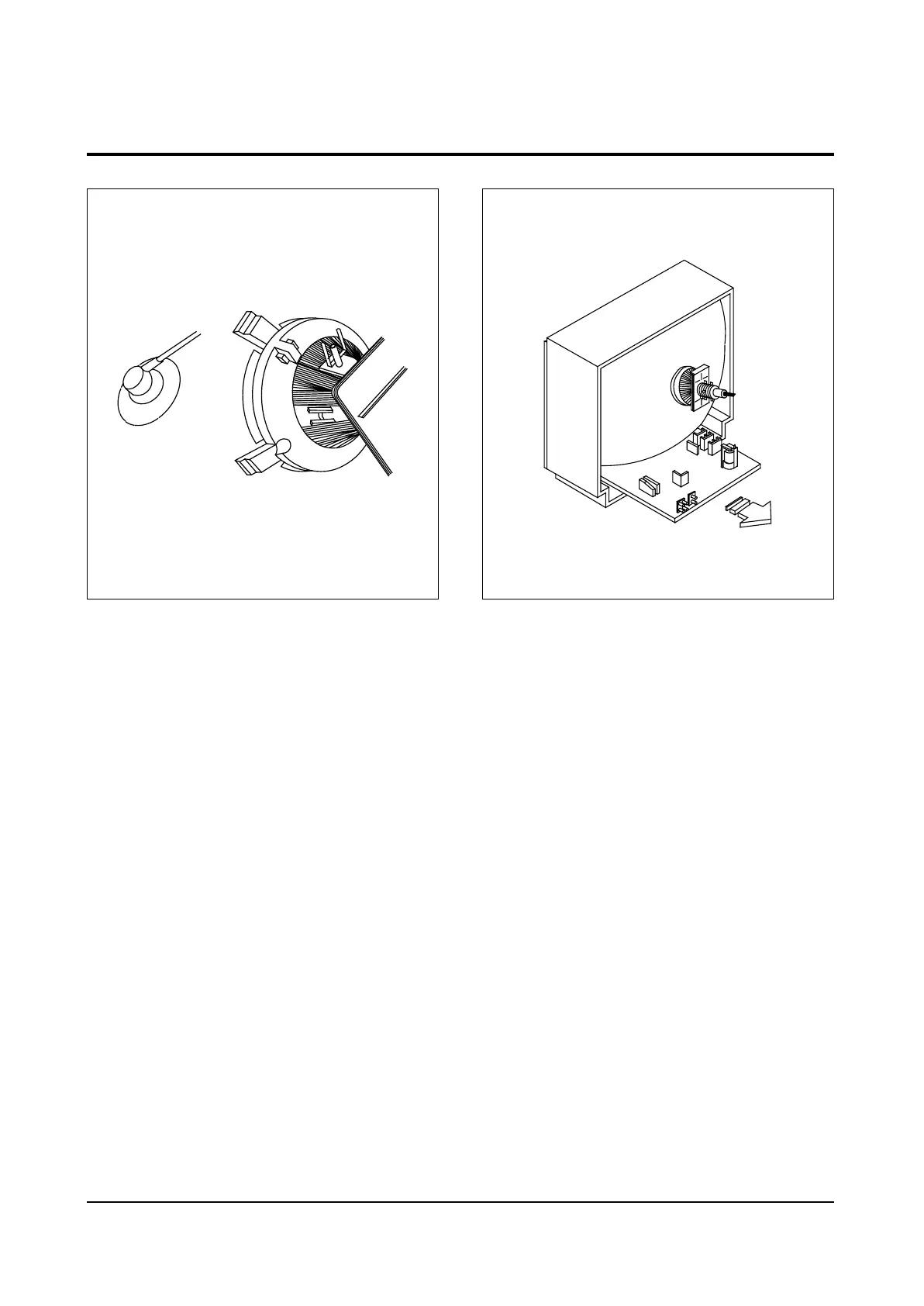

3-2 Main Board Removal
Disassembly and reassembly
1. Separate the socket board from the CRT neck.
2. Remove the Anode Cap from the CRT.
3. Remove the main board by pulling it with both hands.
Warning: The FBT is charged with high voltage.
Before removing the Anode Cap, discharge the voltage
through one of the heat sinks on the main board.

Toshiba 21T01F Specifications

General

Brand	Toshiba
Model	21T01F
Category	TV
Language	English
