Component video (better)
1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to the Y/VIDEO, P
B, and PR jacks on the back of your TV and to the
COMPONENT OUT jacks on the DVD or Blu-ray player.
3 Connect an audio cable (not provided) to the AUDIO L and R jacks on the back of your TV and to the L and R AUDIO
OUT jacks on the DVD or Blu-ray player.
4 Plug your TV’s power cord into a power outlet, then turn on your TV and DVD or Blu-ray player.
5 Press INPUT to open the Input Selection list.
6 Press
S or T to highlight COMPONENT, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Important
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
device) share the AUDIO L and R jacks with the Y/VIDEO jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your DVD or
Blu-ray player supports it.
• When you connect the audio using the AUDIO L and R jacks, the audio
output is analog.

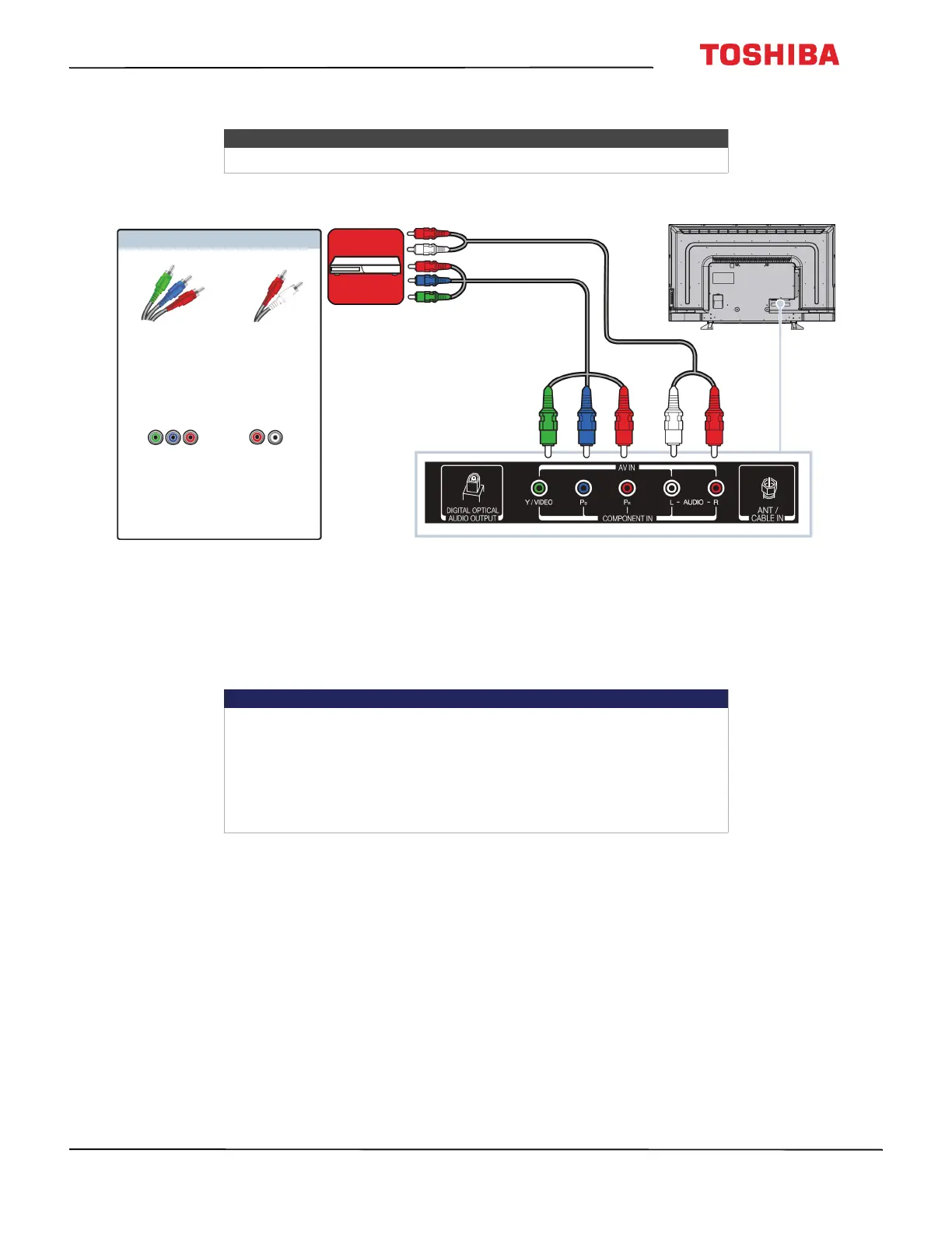

Back of TV
Audio cable
Component
video cable
DVD or Blu-ray
player
Component
video cable
connectors
Audio cable
connectors
Component
video jacks
Analog
audio jacks
On your TV
