2. PRINTER SETUP
ENGLISH VERSION EO1-33062
2.5 Connecting the Power Adapter and the Power Cord
E2- 4
2.5 Connecting the
Power Adapter and
the Power Cord

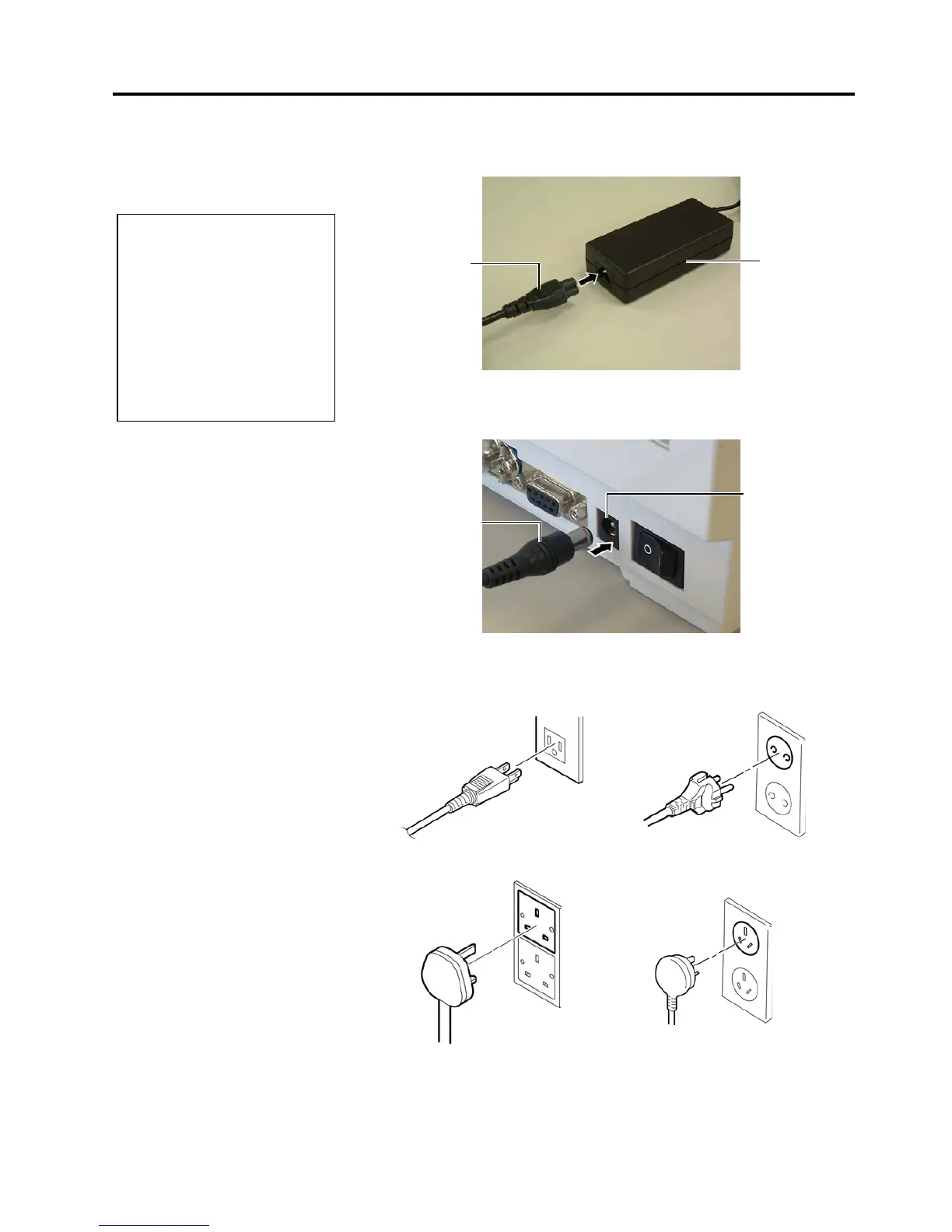

1. Make sure that the printer power switch is in the OFF (O) position.
2. Insert the Power Cord into the inlet of the Power Adapter.
3. Insert the Power Adapter connector into the Power Jack on the rear of
the printer.
4. Plug the other end of the Power Cord into a grounded outlet as shown
in the figure below.
Power Adapter
Power Cord
Power Adapte
Power Jack
NOTES:
1. Since the power cord is not
enclosed in this printer, please
purchase a proper one after
referring to page 1-2.
2. The EA10953 AC adapter
should be exclusively used for
the B-SV4T Series printer.
The B-SV4T Series printer
must be powered by the
EA10953 AC adapter.
