A1.3 Media
EA1- 4

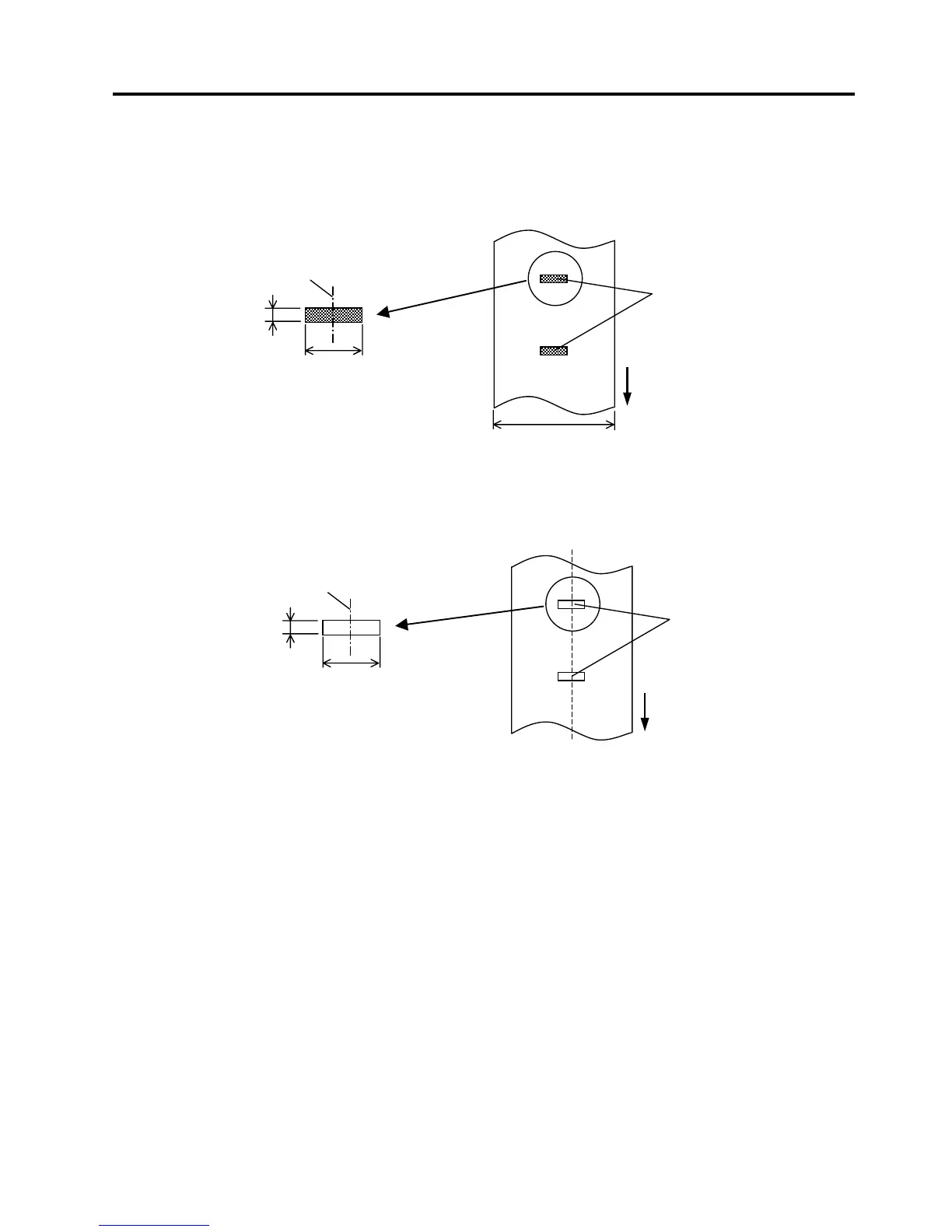

A1.3.3 Detection Area of the Reflective Sensor
The Reflective Sensor is movable within the full range of the media width.
The reflection factor of the Black Mark must be 10% or lower with a waveform length of 950 nm.
The Reflective Sensor should be aligned with the centre of the Black Mark.
<Black Mark>
Rectangular holes or oval holes are also acceptable only if they are positioned at the centre of the media. In that
case, nothing must be printed on the reverse side of the media.
<Rectangular/Oval Hole>
Min. 2 mm
(Min. 6 mm:
Cut mode)
Min. 8 mm
Sensor should be positioned at the
centre of the rectangular hole.
Media feed direction
Rectangular holes (Oval holes
are also acceptable.)
Centre of media
Min. 2 mm
Min. 8 mm
Sensor should be positioned at the
centre of the black mark.
Media feed direction
Detecting the black marks on the
back.
Sensor is movable within the full range.
