BN interface Installation Manual
3
-EN
Introduction
Overview
The BN interface refers to equipment used for controlling Building Management Systems (Procured locally) and air conditioners
“TU2C-LINK Uh Line (hereinafter, referred to as Uh Line) compatible models” through communications via a network to enable
central control.
Included Items
Specifications

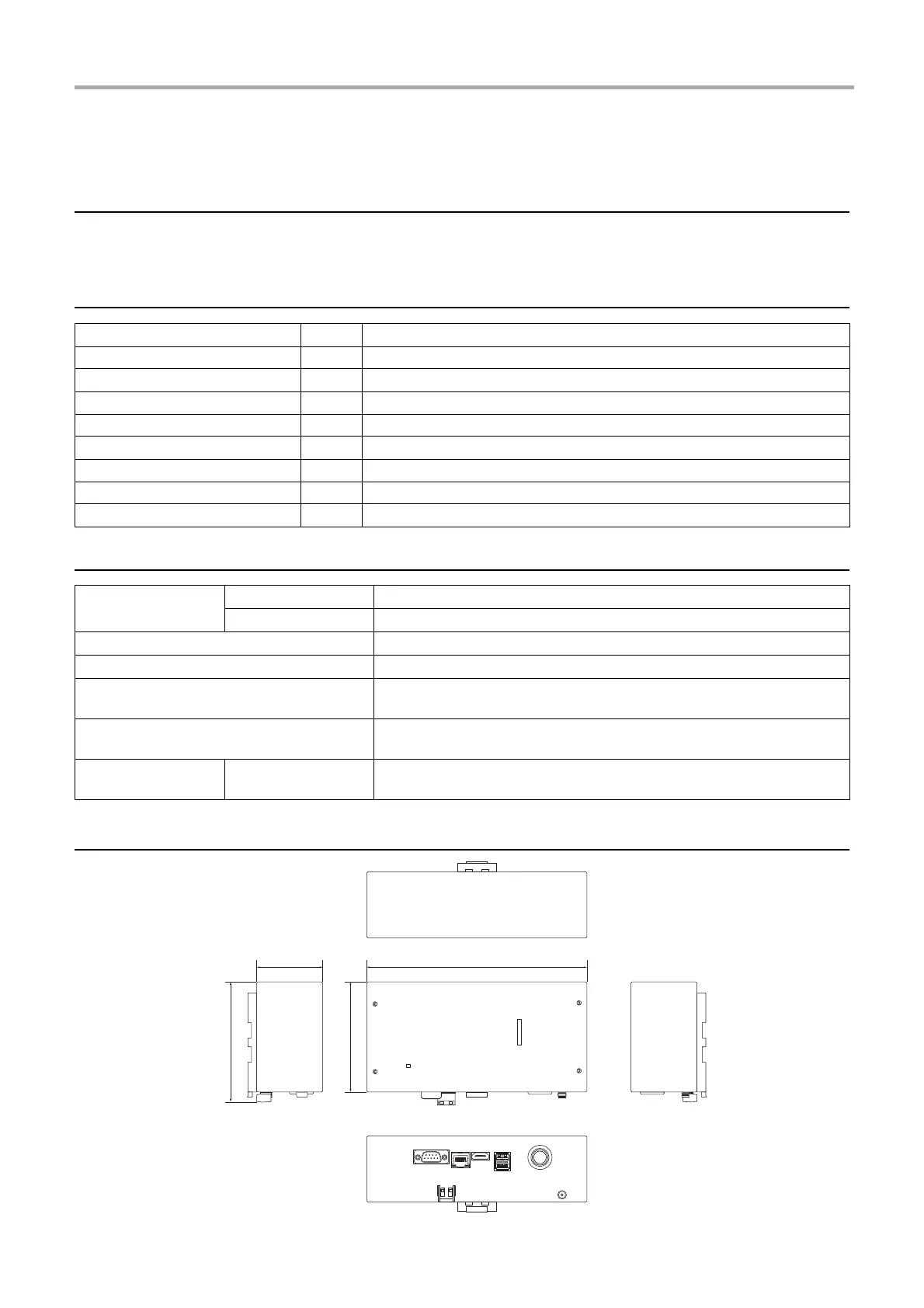

External View (BN interface equipment) Unit: inch (mm)
Component Q'ty Remarks
BN interface equipment 1
Power adapter 1 BN interface power supply
Pin terminal 2 Uh Line caulked connectors
Mounting bracket (DIN rail) 1 Use screws to secure the unit in locations without DIN rails (walls, etc.)
Screws (M4 x 12) 2 For securing the DIN rails
Installation Manual 1 This manual
License Agreement 1
License Information 1
Power supply
Rated voltage 120 V AC 60 Hz
Power consumption 10 W
Operating temperature range 32 to 104°F (0°C to 40°C), 10% to 80% RH (no condensation)
Storage temperature range 14 to 140°F (−10°C to +60°C), 10% to 90% RH (no condensation)
Dimensions Width 7.87 inch x Height 3.94 inch x Depth 2.32 inch
(Width 200 mm x Height 100 mm x Depth 59 mm)
Mass BN interface 1.7 lb (765 g)
Power adapter 1.0 lb (450 g)
Number of connected
units
Indoor unit Up to 128 units (TU2C-LINK)
Up to 64 units (TCC-LINK)
2.32″ (59)
3.94″ (100)
4.37″ (111)
(200)7.87″
