Universal Serial Bus
(USB 2.0) port
One Universal Serial Bus port, which complies to
the USB 2.0 standard, is provided on the right
side of the computer.
The USB 2.0 port is not compatible with USB 3.0
devices.
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), or Fast
Ethernet LAN (100 megabits per second,
100BASE-TX). Some models are equipped with
a Gigabit Ethernet LAN (1000 megabits per
second, 1000BASE-T). Refer to Operating
Basics, for details.
Do not connect any cable other than a LAN cable to the LAN jack. It could
cause damage or malfunction.
External RGB monitor
port
This port provides 15-pin, analog RGB port.
Please refer to the External RGB monitor port pin
assignment section for information on external
RGB monitor port pin assignment. This port
allows you to connect an external RGB monitor
to the computer.
Cooling vents The cooling vents help the processor to avoid
overheating.
Back

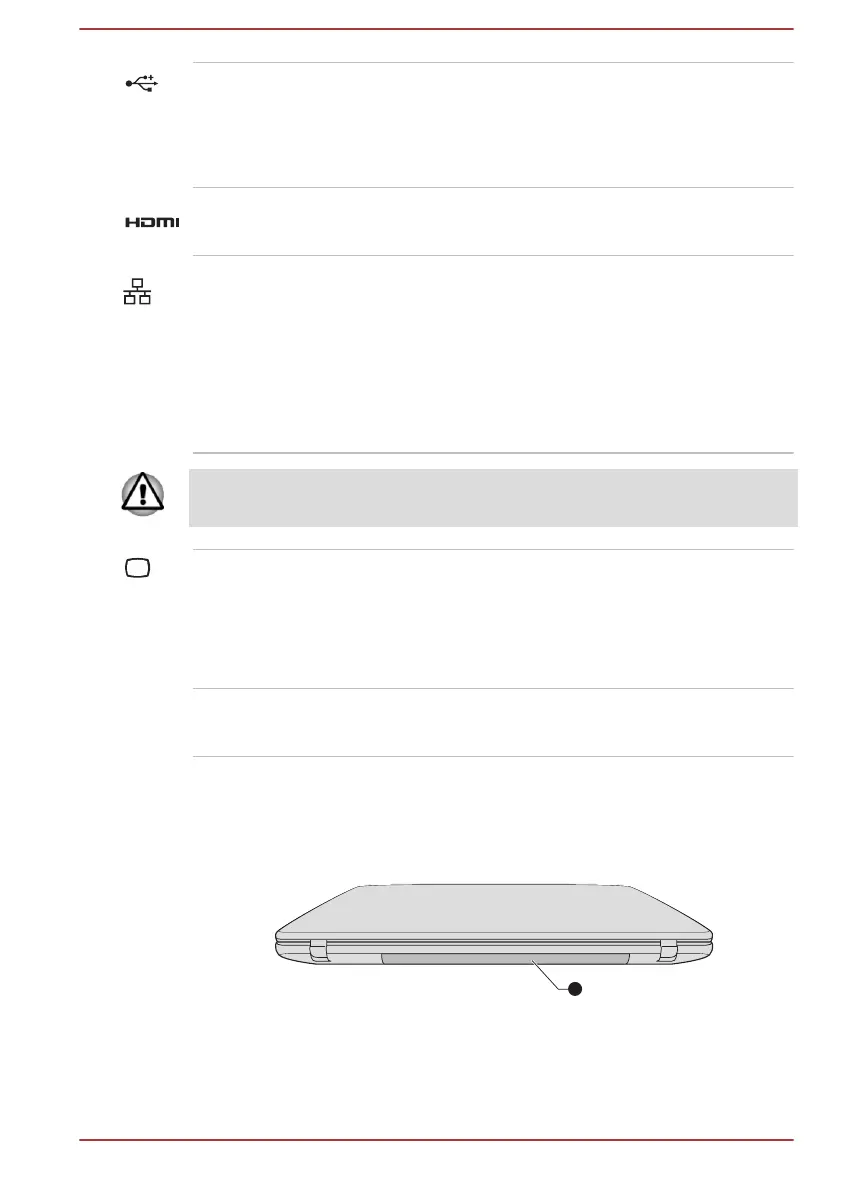

The following figure shows the back of the computer.
Figure 3-4 The back of the computer
1. Battery pack
Product appearance depends on the model you purchased.
User's Manual
3-5
