I1-1

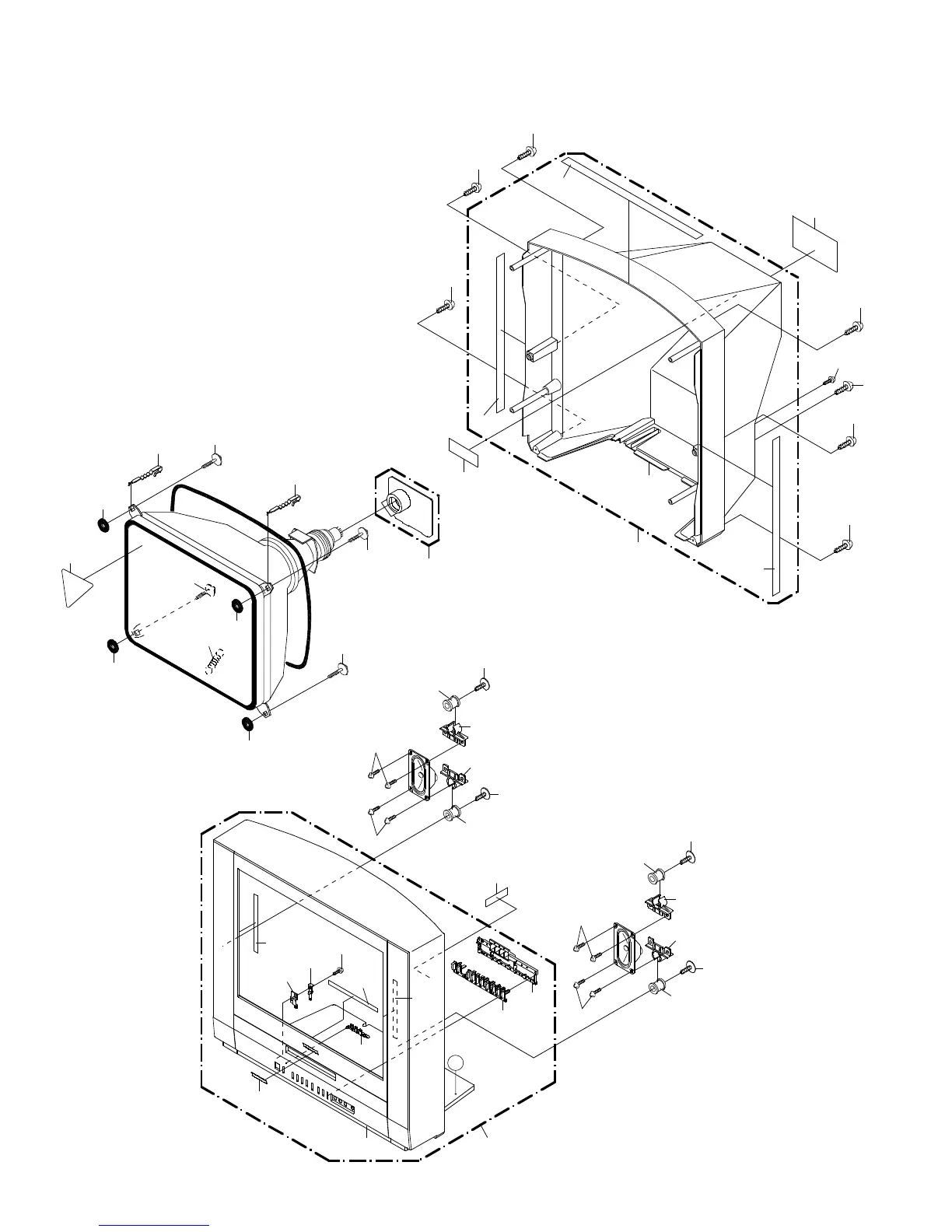

MECHANICAL EXPLODED VIEW
PCB110
(CRT PCB ASS'Y)
201
201
201
124
110
110
201
122
122
112
122
122
202
202
202
202
202
102A
102
206
202
202
102B
102B
102C
120
123
101A
101E
101C
101B
101D
101G
101F
A
214
108
107
214
107
108
215
215
121
214
108
107
214
107
108
215
215
210
101H
101H
101H
101
