SETUP – MK6025GAS (HDD2189)
Caution: Your Hard Disk Drive is a precision device and even a small drop onto any surface can cause
damage. Electronstatic discharge can also damage the drive. You should ground yourself prior to handling the
drive.
Master/Slave Settings
Your Toshiba Hard Disk Drive can be configured as either a "Master" or "Slave" unit. Master configuration is used
for all single drive applications, and master or slave configuration (only one of each per port) is used for two drive
applications. Use the information in the following table before setting drive as Master or Slave.
Master configuration is obtained by setting jumpers A, B, C & D open (no jumper present). Slave configuration is
obtained by setting jumpers C-D. When B-D jumper is installed, the drive is configured as cable select. If pin 28 =
Low, the drive is "Master", if pin 28 - High, the drive is "Slave".

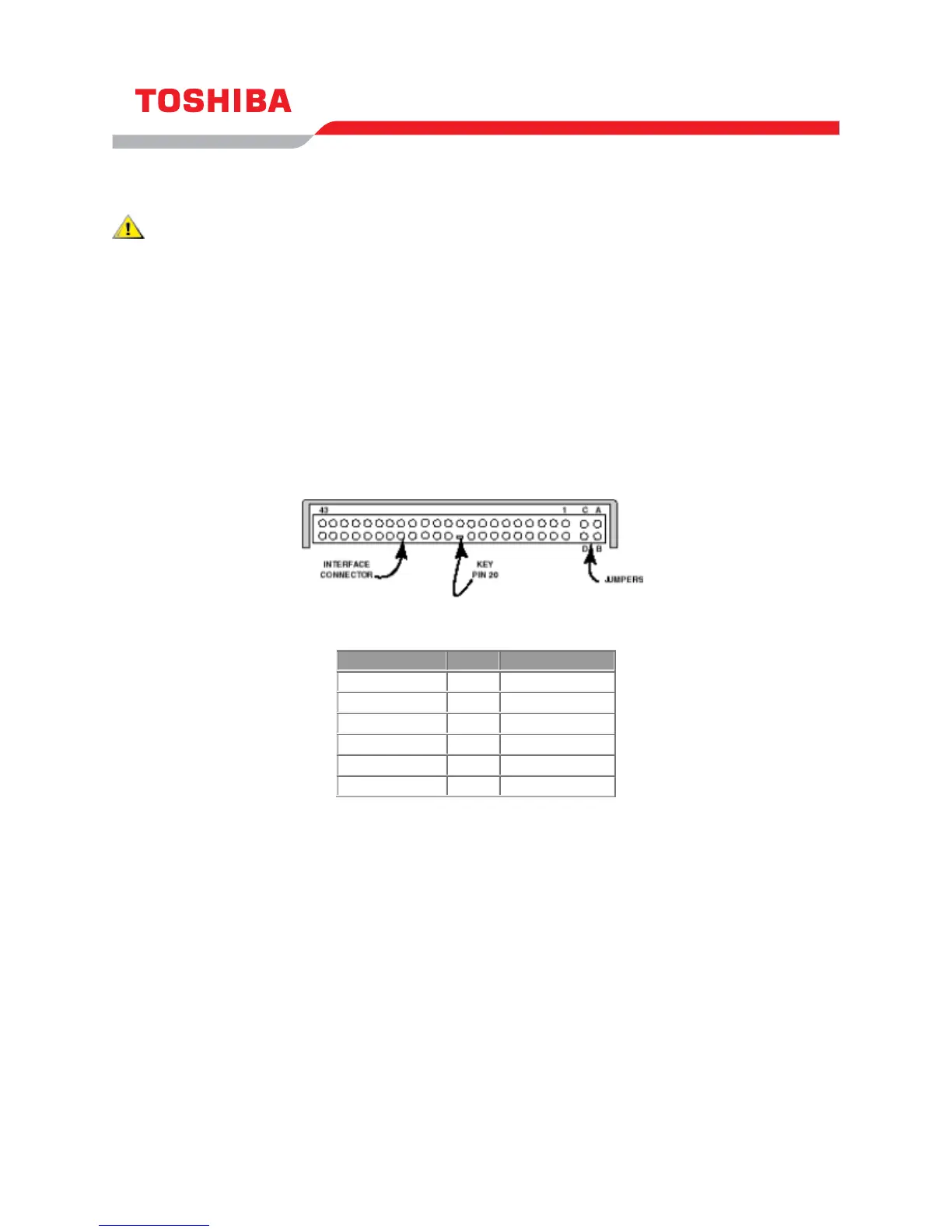

Figure 1.HDD Jumper Locations
JUMPER P28 DRIVE
No Jumper - Master Drive
C-D Jumper - Slave Drive
B-D Jumper LOW Master Drive
B-D Jumper HIGH Slave Drive
A-B Jumper - Slave Drive
A-C Jumper - Prohibit

Toshiba MK6025GAS Specifications

General

Type	HDD
HDD size	2.5 \
HDD speed	4200 RPM
Interface	Parallel ATA
HDD capacity	60 GB
Average seek time	12 ms
HDD number of heads	4
Track to track seek time	2 ms
Storage drive buffer size	8 MB
Mean time between failures (MTBF)	300000 h
Operating shock	200 G
Operating altitude	-300 - 3000 m
Non-operating shock	800 G
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	5 - 55 °C
Windows operating systems supported	Yes
Operating voltage	5 V
Power consumption (read)	2.3 W
Power consumption (standby)	0.25 W
Power consumption (PowerSave)	0.1 W

Weight and Dimensions

Depth	100 mm
Width	69.85 mm
Height	9.5 mm
Weight	98 g
