Toshiba MMY-MAP0726FT2P-UL Installation Manual

– 5 –
9-EN 10-EN
▼ Combination of outdoor units
Model name
(Standard Model)
Unit 1 Unit 2
Header unit Follower unit
MMY-MAP0726FT2P-UL MMY-MAP0726* –
MMY-AP1446FT2P-UL MMY-MAP0726* MMY-MAP0726*

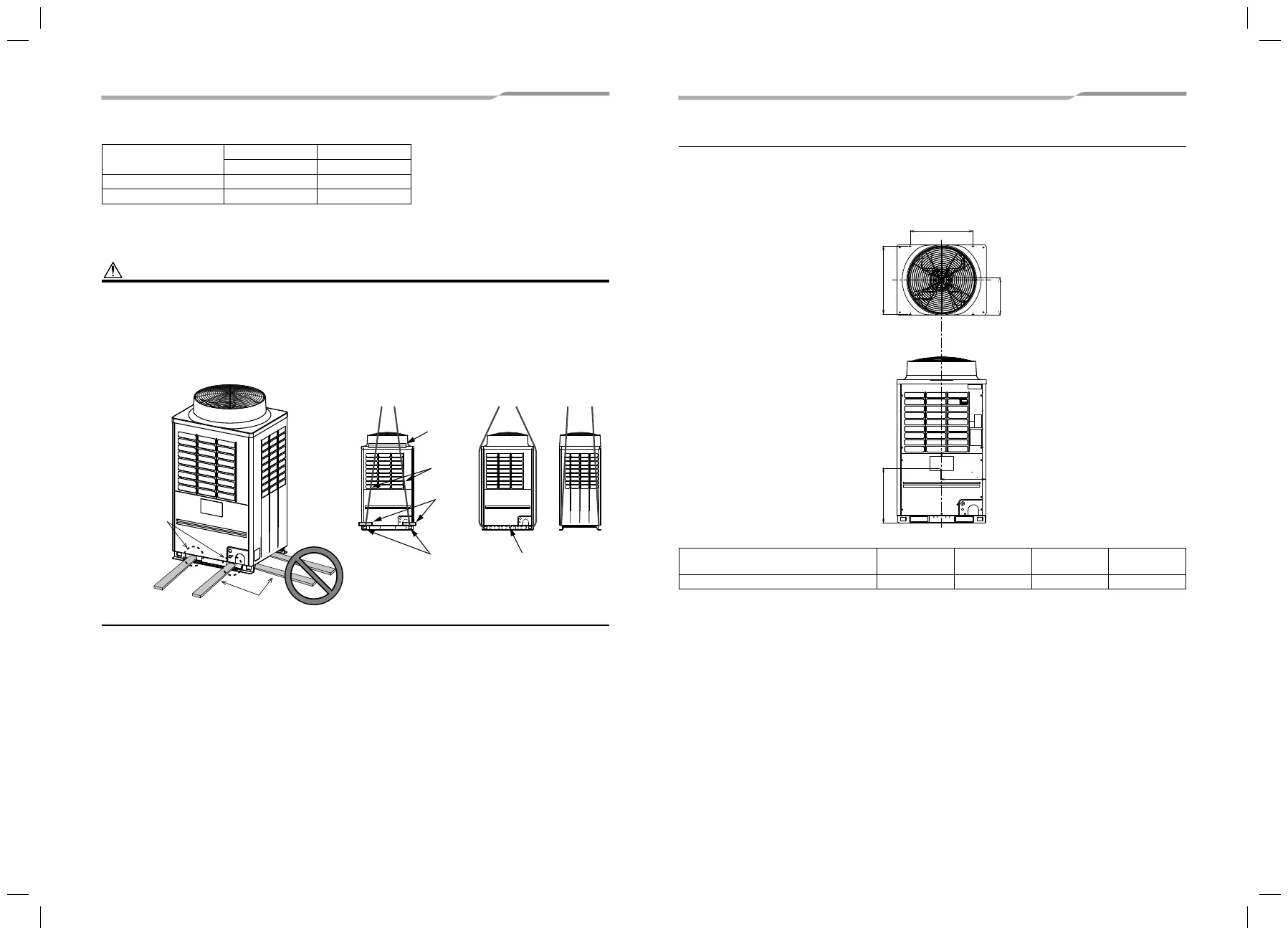

5 Carrying in the outdoor unit
CAUTION
Handle the outdoor unit carefully, observing the following items.
•
To use a forklift or other machinery for loading/unloading in transportation, insert the fork of the forklift into the
rectangular holes for handling as shown below.
•
To lift up the unit, insert a rope capable of bearing the weight of the unit into the rectangular holes shown below.
Tie the unit from 4 sides.
(Apply padding in positions where the rope comes in contact with the outdoor unit so that no damage is caused
to the outer surface of the outdoor unit.)
(There are reinforcing plates on the side surfaces, so the rope cannot be passed through.)
Rectangular
holes for
handling
Front/Back
Side
Correct
Correct Incorrect Incorrect
Incorrect
Fork of the
forklift
Plaster
board
Plaster
board
Rectangular
holes for
lifting
Reinforcing
plate
Rope
■ Weight center and weight
Unit: in (mm)
◆ Weight center of an outdoor unit
Y
Z
X
Anchor bolt position
27.6" (700)
Anchor bolt position
29.7" (755)
Model type
X
(in(mm))
Y
(in(mm))
Z
(in(mm))
Weight
(lb(kg))
MAP0726FT2P-UL 20.5" (520) 15.4" (390) 24.0" (610) 600 (272)
