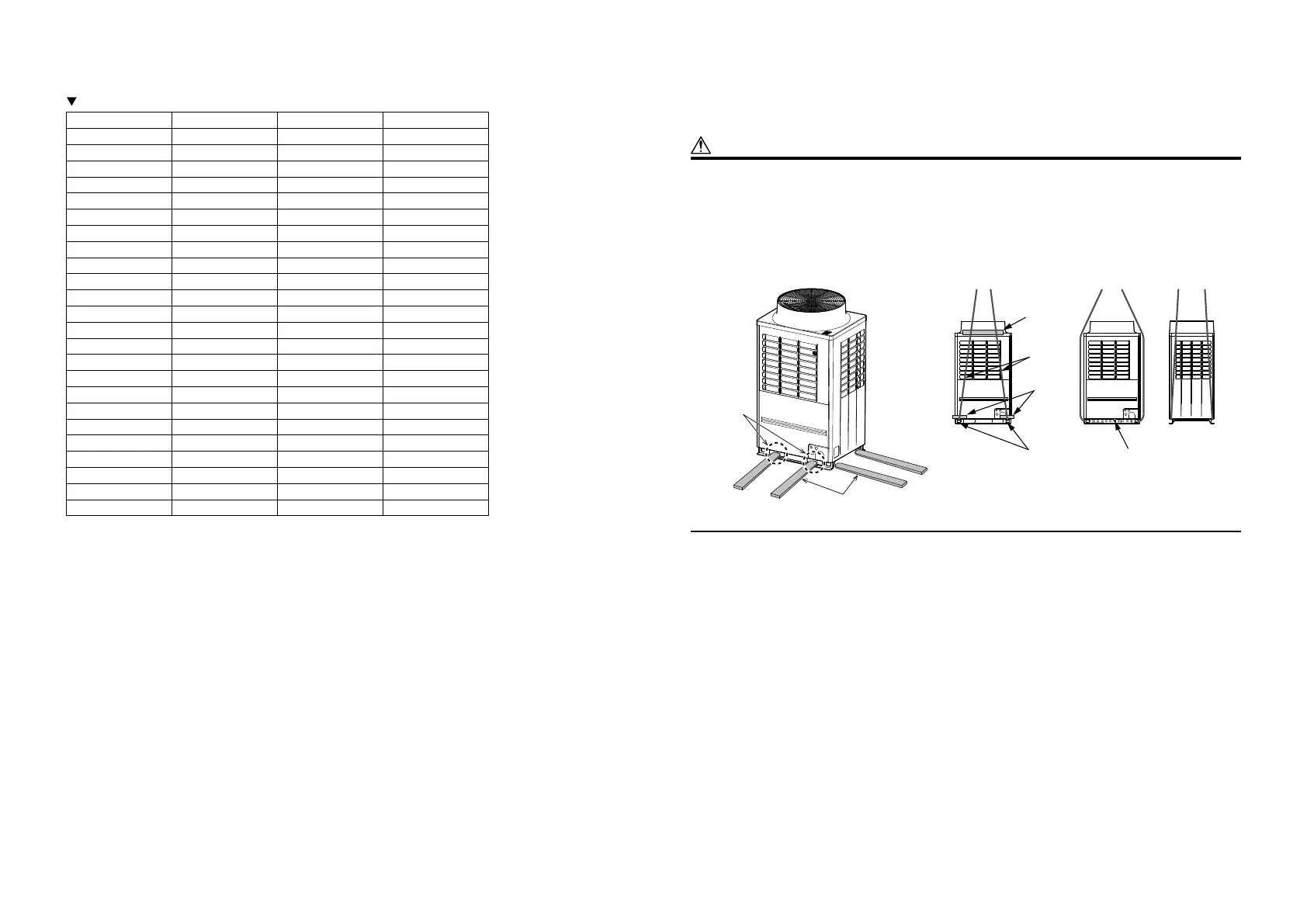

Combination of outdoor units (* : FT8P-E, FT8JP-E)
Model name Unit 1 Unit 2 Unit 3
--*6080PAM-YMM*6080PAM-YMM
--*6001PAM-YMM*6001PAM-YMM
--*6021PAM-YMM*6021PAM-YMM
--*6041PAM-YMM*6041PAM-YMM
--*6061PAM-YMM*6061PAM-YMM
--*6081PAM-YMM*6081PAM-YMM
--*6002PAM-YMM*6002PAM-YMM
MMY-AP2216* MMY-MAP1206* MMY-MAP1006* -
MMY-AP2416* MMY-MAP1406* MMY-MAP1006* -
MMY-AP2616* MMY-MAP1406* MMY-MAP1206* -
MMY-AP2816* MMY-MAP1406* MMY-MAP1406* -
MMY-AP3016* MMY-MAP1606* MMY-MAP1406* -
MMY-AP3216* MMY-MAP1806* MMY-MAP1406* -
MMY-AP3416* MMY-MAP1806* MMY-MAP1606* -
MMY-AP3616* MMY-MAP1806* MMY-MAP1806* -
MMY-AP3816* MMY-MAP2006* MMY-MAP1806* -
MMY-AP4016* MMY-MAP2006* MMY-MAP2006* -
MMY-AP4216* MMY-MAP1406* MMY-MAP1406* MMY-MAP1406*
MMY-AP4416* MMY-MAP1606* MMY-MAP1406* MMY-MAP1406*
MMY-AP4616* MMY-MAP1806* MMY-MAP1406* MMY-MAP1406*
MMY-AP4816* MMY-MAP1806* MMY-MAP1606* MMY-MAP1406*
MMY-AP5016* MMY-MAP1806* MMY-MAP1806* MMY-MAP1406*
MMY-AP5216* MMY
-MAP1806* MMY-MAP1806* MMY-MAP1606*
MMY-AP5416* MMY-MAP1806* MMY-MAP1806* MMY-MAP1806*
4 Carrying in the outdoor unit
CAUTION
Handle the outdoor unit carefully, observing the following items.
When using a forklift or other machinery for loading/unloading in transportation, insert the fork of the forklift into
the rectangular holes for handling as shown below.
When lifting up the unit, insert a rope able to bear the unit’s weight into the rectangular holes for handling, and
tie the unit from 4 sides.
(Apply padding in positions where the rope comes into contact with the outdoor unit so that no damage is
caused to the outer surface of the outdoor unit.)
(There are reinforcing plates on the side surfaces, so the rope cannot be passed through.)
Incorrect IncorrectCorrect
Rope
Plaster
board
Plaster
board
Rectangular
holes for
lifting
Reinforcing
plate
Incorrect
Fork of the
forklift
Correct
Rectangular
holes for
handling
Front/Back
Side
7-EN 8-EN
