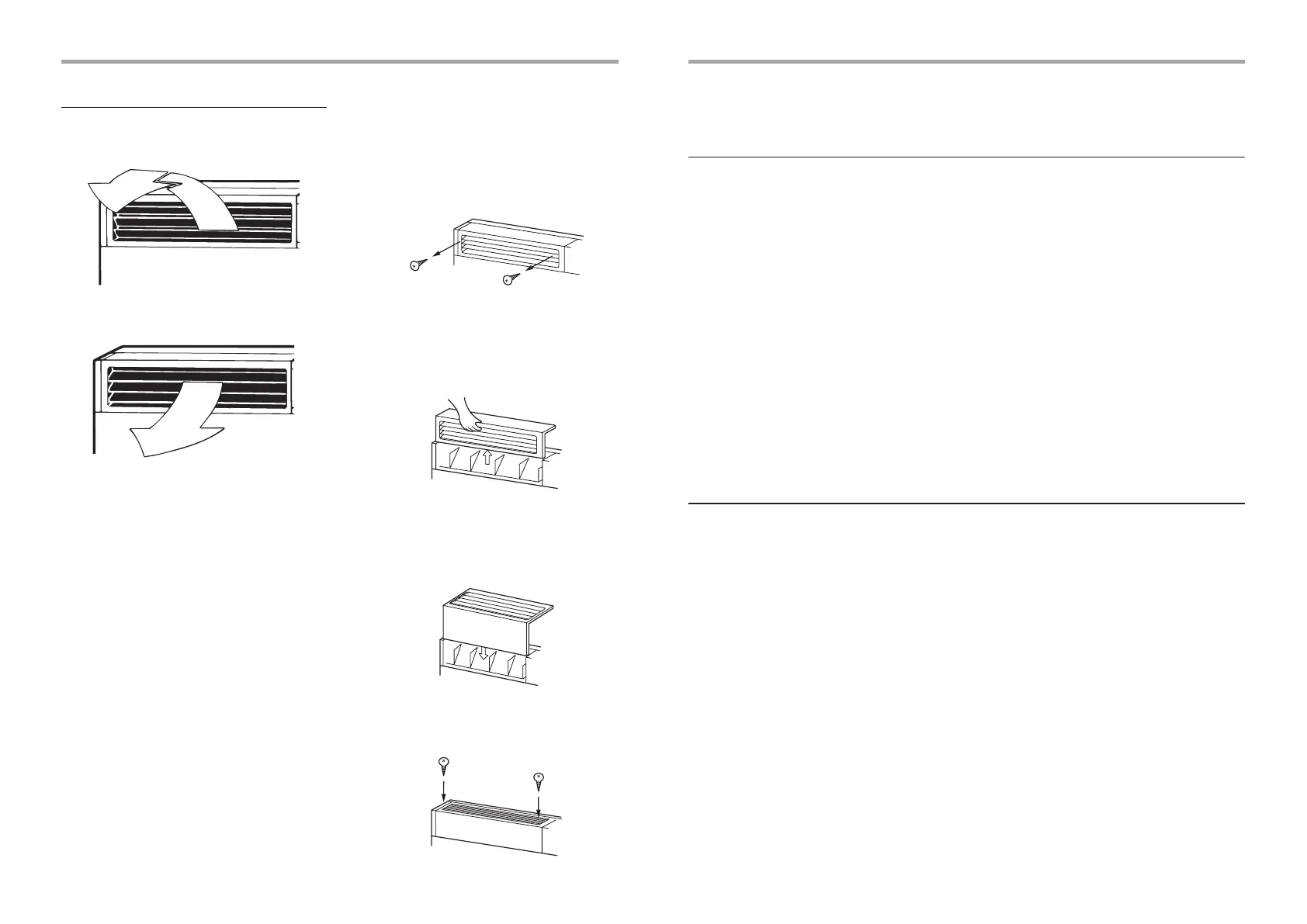

Changing the air discharge
Follow the procedure below to change the air
discharge:
1
Remove the two fixing screws of the air
discharge. (The fixing screws are to be
reused)
2
Insert your hand into the air discharge
and pull it up slightly, then remove the air
discharge from the claw hook at the rear
side.
3
Lift up the air discharge and remove it.
4
Reverse the air discharge and reattach it to
the main unit.
Make sure that the four claw hooks
(2 at the rear and 2 at the lower sides)
are hooked into the mounting positions.
5
Be sure to tighten the air discharge with the
removed fixing screws so that it does not
come off.
■
Floor standing cabinet type
T When cooling
Move the louver manually and point it horizontally to
send cool air across the entire room.
T When heating
Move the louver manually and point it downward to
send heated air to the floor.
7 Installation
■
Location
• Avoid installing near machines emitting high frequency waves.
• Not suitable for chemical plants such as liquefied carbon dioxide refrigerant plants.
• Do not install the air conditioner in locations where iron or other metal dust is present. If iron or other metal dust
adheres to or collects on the interior of the air conditioner, it may spontaneously combust and start a fire.
• A failure may occur in certain locations such as the following:
• Areas with large amount of oil droplets (including machine oil) or vapors
• Salty areas near oceans, etc.
• Hot springs emitting sulfidizing gas, etc.
• Heavily acidic or alkaline places. ( e.g. place disinfection solution is frequently sprayed at )
Special maintenance or parts are required for use in the above places. For details, contact the dealer where you
purchased the product.
• Leave an enough space around the air intake and discharge of the outdoor unit so that the ventilation is not
restricted.
• Avoid places where strong wind may blow against the air intake and discharge of the outdoor unit.
• Attach a snow stand, snow hood, etc. to the outdoor unit for use in snowfall areas. For details, contact the dealer
where you purchased the product.
• Make sure drain water from the outdoor unit is emitted into places with good drainage.
• Make sure the air filter is attached to the indoor unit. If not, dust may accumulate on the heat exchanger or other
parts in the air conditioner and cause a water leak.
• Keep a distance of at least 1 m between the air conditioner / remote controller and a TV or radio. Failure to
observe this precaution may cause visual disturbance or noise.
• Leave a distance of at least 1.5 m between the air discharge and a fire alarm. If this precaution is not observed,
the alarm may not work properly or detect fire in case of fire.
■
Be careful of operation sounds
• Locate the unit in a place secure enough so that the sounds and vibrations do not increase.
• If something is placed near the air discharge of the outdoor unit, noise may increase.
• Be careful not to disturb your neighbors with cool / warm air or noise coming from the air discharge of the
outdoor unit.
