Front with the display open
This section shows the computer with the display panel open. In order to
open the display, lift the display panel up and position it at a comfortable
viewing angle for you.

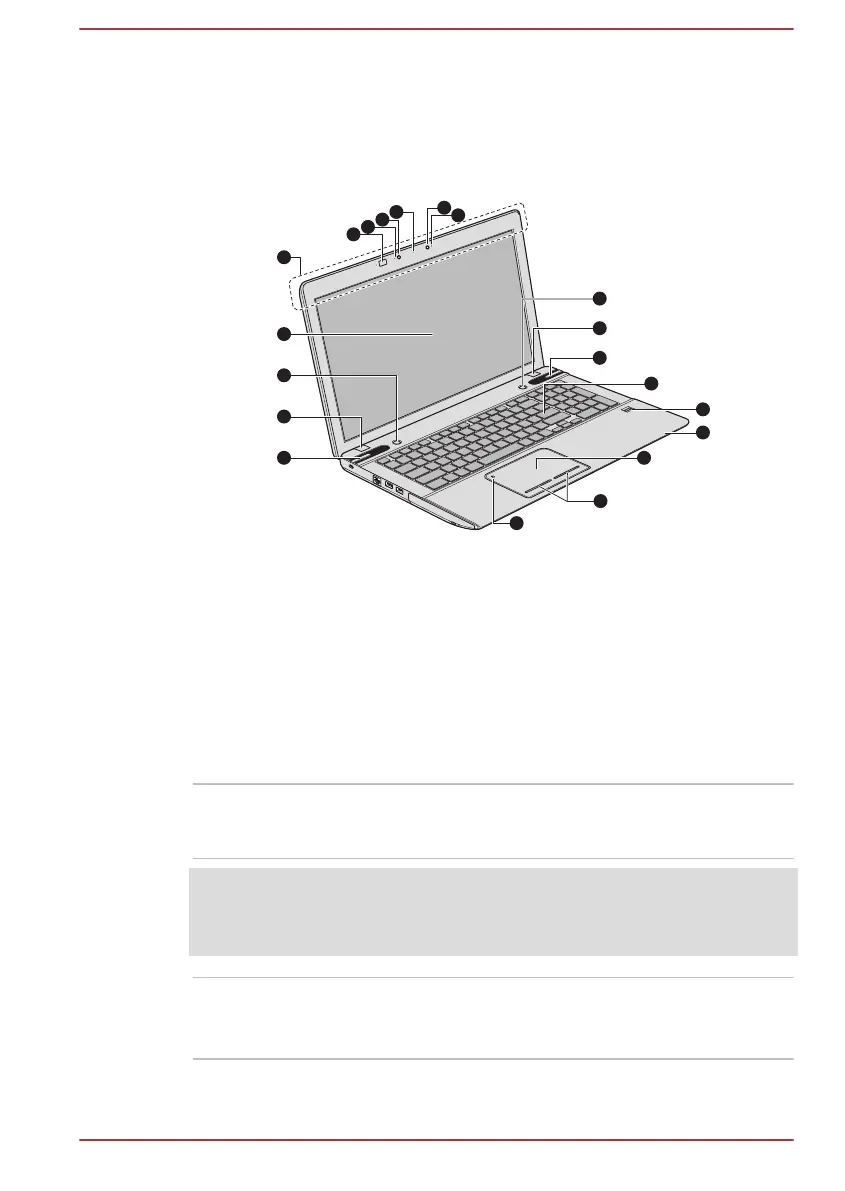

Figure 3-6 The front of the computer with the display panel open
16
8
10
11
9
12
13
14
15
1
2
3
4
5
3
4
7
8
10
6
1. Wireless communication antennas
(not shown)*
9. Power button
2. 3D Vision IR emitter* 10. Stereo speakers
3. Microphone 11. Keyboard
4. Web Camera* 12. Fingerprint Sensor*
5. Web Camera LED* 13. LCD Sensor switch (not shown)
6. Display screen 14. Touch Pad
7. Function button* 15. Touch Pad control buttons
8. Display hinge 16. Touch Pad ON/OFF indicator
* Provided with some models.
Product appearance depends on the model you purchased.
Wireless
communication
antennas
Some computers in this series are equipped with
the Wireless WAN/WiMAX antennas.
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, please refer to the Legal
Footnotes section.
3D Vision IR emitter IR emitter sends signal to wireless glasses.
Some models are equipped with a 3D Vision IR
emitter.
User's Manual 3-7
