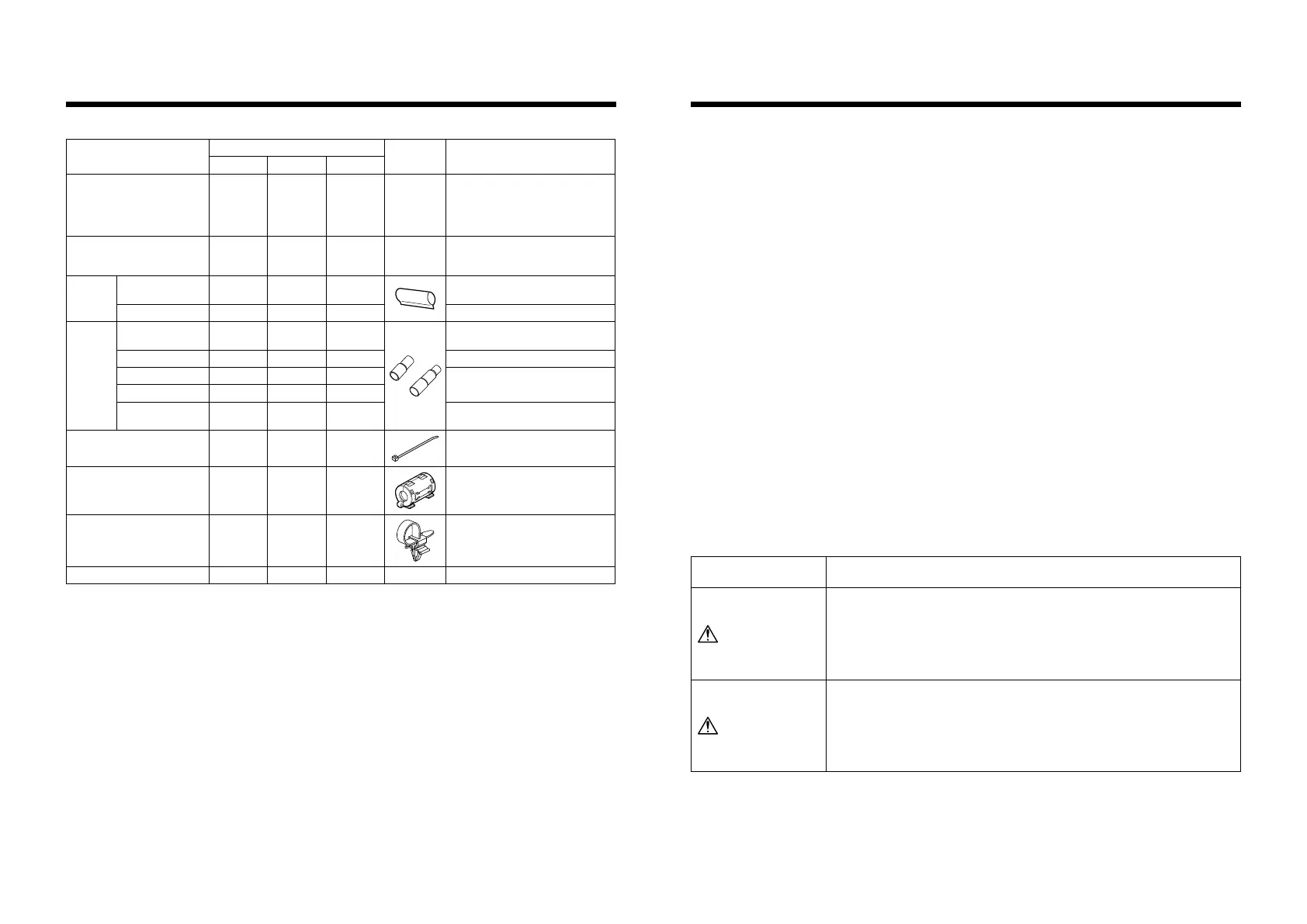

Accessory parts and Parts to be procured locally
■
Accessory parts
Part name
Q’ty RBM-
Shape Usage
SV1121HUPE SV1801HUPE SV6701HUPE
Installation Manual 1 1 1 This manual
This manual for installer.
(For other languages that do not
appear in this Installation Manual,
Please refer to the enclosed
CD-ROM.)
CD-ROM 1 1 1 –
(For other languages Installation
Manual, please refer to the enclosed
CD-ROM.)
Heat
insulating
pipe
Ø71
––2
For gas pipe of indoor and outdoor
unit connection
Ø55
4 4 2 For indoor and outdoor unit connection
Attached
pipe
Ø9.5 − Ø6.4
1––
For liquid pipe of indoor unit
connection
Ø15.9 − Ø12.7 − Ø9.5
1 – – For gas pipe of indoor unit connection
Ø28.6 − Ø22.2
––2
For gas pipe of indoor and outdoor
unit connection
Ø28.6 − Ø19.1
––2
Ø15.9 − Ø12.7
––1
For liquid pipe of outdoor unit
connection
Binding band (L300) 8 8 8
For fixing heat insulating pipes
Clamp filter – – 1
For reducing electrical noise of power
supply wire
Cable clamp 3 3 3
For fixing indoor unit communication
cables
Washer 6 6 6 M10 × Ø34 For hanging the unit
1 PRECAUTIONS FOR SAFETY
• Ensure that all Local, National and International regulations are
satisfi ed.
• Read this “PRECAUTIONS FOR SAFETY” carefully before
Installation.
• The precautions described below include the important items
regarding safety. Observe them without fail.
• After the installation work, perform a trial operation to check for
any problem.
Follow the Owner’s Manual to explain how to use and maintain
the unit to the customer.
• Turn off the main power supply switch (or breaker) before the
unit maintenance.
• Ask the customer to keep the Installation Manual and explain the
customer in detail of this installation completion state.
■ Meanings of symbols in this manual
These safety cautions describe important matters concerning
safety to prevent injury to users or other people and damages to
property. Please read through this manual after understanding the
contents below (meanings of indications), and be sure to follow the
description.
Indication Meaning of Indication
WARNING
Text set off in this manner indicates that failure
to adhere to the directions in the warning could
result in serious bodily harm (*1) or loss of life if
the product is handled improperly.
CAUTION
Text set off in this manner indicates that failure
to adhere to the directions in the caution could
result in slight injury (*2) or damage (*3) to
property if the product is handled improperly.
*1: Serious bodily harm indicates loss of eyesight, injury, burns,
electric shock, bone fracture, poisoning, and other injuries
which leave aftereffect and require hospitalization or long-term
treatment as an outpatient.
2
EN-3 EN-4
