19
Connections
BITSTREAM/PCM
L
COAXIAL
DIGITAL
ANALOG
R
VIDEO
YP
B
P
R
S
AUDIO OUT
VIDEO OUT
To PR
VIDEO
OUT
Notes
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the
DVD video player away from the tuner and radio.
• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power
on, the speakers may be damaged.

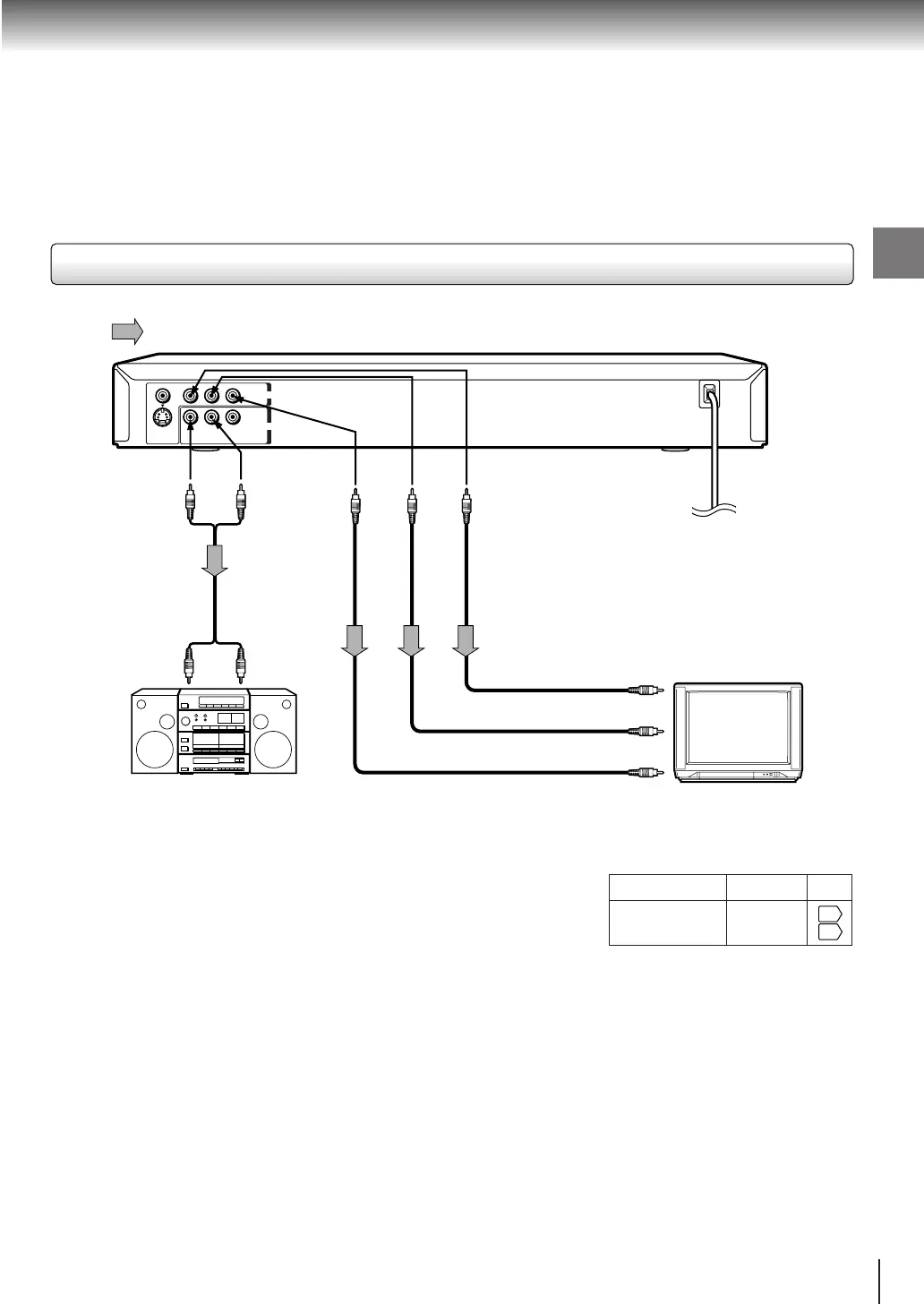

Connecting to an audio system and TV equipped with component video inputs
Signal flow
To wall outlet
To audio inputs of
the amplifier
(red)
(white)
(red) (white)
To Y
VIDEO
OUT
To PB
VIDEO
OUT
To Y video input
To PB video input
To PR video input
TV or monitor with
component video inputs
Audio system
Component video (ColorStream
®
) outputs/inputs
Some TVs or monitors are equipped with component video inputs. Connecting to
these inputs allows you to enjoy higher quality picture playback.
Actual labels for component video inputs may vary depending on the TV
manufacturer. (ex. Y, R-Y, B-Y or Y, C
B, CR)
In some TVs or monitors, the color levels of the playback picture may be reduced
slightly or the tint may change. In such a case, adjust the TV or monitor for
optimum performance.
• Make the following setting.
On-screen display
Select:
Page
“Analog 2ch”
“Audio Out Select”
To ANALOG AUDIO OUT
48
50
To Next Page
