SR-V10

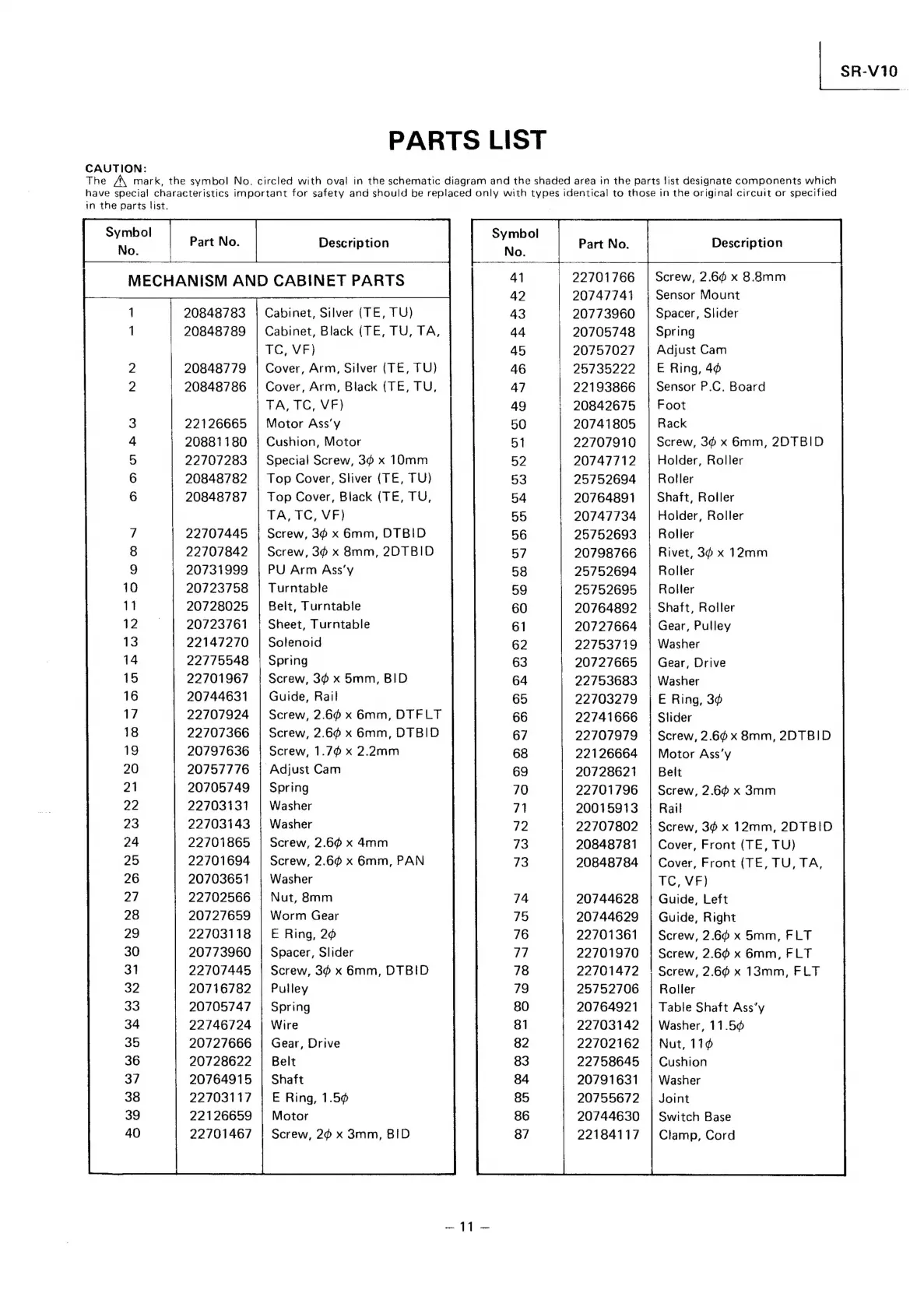

PARTS LIST
The L\ mark, the symbol No. circled with oval in the schematic diagram and the shaded area in the parts !ist designate components which
have specia! characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified
in the parts list.
Symbol S a
MECHANISM AND CABINET PARTS P2TOLTOG. ||| Screw ie OP GSM
i 20747741 | Sensor Mount
1 20848783 | Cabinet, Silver (TE, TU) 43 20773960 | Spacer, Slider
1 20848789 | Cabinet, Black (TE, TU, TA, 44 20705748 | Spring
TC, VF) 45 20757027 | Adjust Cam
2 20848779 | Cover, Arm, Silver (TE, TU) 46 25735222 | E Ring, 4¢
2 20848786 | Cover, Arm, Black (TE, TU, 47 22193866 | Sensor P.C. Board
TA, TC, VF) 49 20842675 | Foot
3 22126665 | Motor Ass‘y 50 20741805 | Rack
4 20881180 | Cushion, Motor 51 22707910 | Screw, 3¢ x 6mm, 2DTBID
5 22707283 | Special Screw, 3¢ x 10mm 52 20747712 | Holder, Roller
6 20848782 | Top Cover, Sliver (TE, TU) 53 25752694 | Roller
6 20848787 | Top Cover, Black (TE, TU, 54 20764891 | Shaft, Roller
TA, TC, VF) 55 20747734 | Holder, Roller
7 22707445 | Screw, 3¢ x 6mm, OTBID 56 25752693 | Roller
8 22/07842 | Screw, 3¢ x 8mm, 2DTBID 57 20798766 | Rivet, 36 x 12mm
9 20731999 | PU Arm Ass’y 58 25752694 | Roller
10 20723758 | Turntable 59 25752695 | Roller
11 20728025 | Belt, Turntable 60 20764892 | Shaft, Roller
12 20723761 | Sheet, Turntable 61 20727664 | Gear, Pulley
13 22147270 | Solenoid 62 22753719 | Washer
14 22775548 | Spring 63 20727665 | Gear, Drive
(fe. 22701967 | Screw, 3¢ x 5mm, BID 64 22753683 | Washer
16 20744631 | Guide, Rail 65 22703279 | E Ring, 3¢
17 22707924 | Screw, 2.6¢ x 6mm, DTFLT 66 22741666 | Slider
18 22707366 | Screw, 2.6¢ x 6mm, DTBID 67 22707979 | Screw, 2.6¢x 8mm, 2DTBID
19 20797636 | Screw, 1.7¢ x 2.2mm 68 22126664 | Motor Ass’y
20 20757776 | Adjust Cam 69 20728621 | Belt
21 20705749 | Spring 70 22701796 | Screw, 2.6¢ x 3mm
22 22703131 | Washer 71 20015913 | Rail
23 22703143 | Washer 72 22707802 | Screw, 3¢ x 12mm, 2DTBID
24 22701865 | Screw, 2.6¢ x 4mm 73 20848781 | Cover, Front (TE, TU)
25 22701694 | Screw, 2.66 x 6mm, PAN 73 20848784 | Cover, Front (TE, TU, TA,
26 20703651 | Washer TC, VF)
2] 22702566 | Nut, 8mm 74 20744628 | Guide, Left
28 20727659 | Worm Gear 75 20744629 | Guide, Right
29 22703118 | E Ring, 26 76 22/01361 | Screw, 2.6¢ x 5mm, FLT
30 20773960 | Spacer, Slider 77 22701970 | Screw, 2.6¢ x 6mm, FLT
31 22707445 | Screw, 3¢ x 6mm, DTBID 78 22/01472 | Screw, 2.6¢ x 13mm, FLT
32 20716782 | Pulley 79 25752706 | Roller
33 20705747 | Spring 80 20764921 | Table Shaft Ass’y
34 22746724 | Wire 81 22703142 | Washer, 11.5¢
35 20727666 | Gear, Drive 82 22702162 | Nut, 11¢
36 20728622 | Belt 83 22758645 | Cushion
37 20764915 | Shaft 84 20791631 | Washer
38 22703117 | E Ring, 1.5¢ 85 20755672 | Joint
39 22126659 | Motor 86 20744630 | Switch Base
40 22/01467 | Screw, 24 x 3mm, BID 87 22184117 | Clamp, Cord
ee i ee
