3.2.3 Running Overload Curve
During the Run mode, Overload trip curves are selectable from NEMA
Class 5, 10, 15, 20, 25, and 30. Program the appropriate curve according
to the characteristics of your motor and load.
3.2.4 Overload Trip Curve Chart

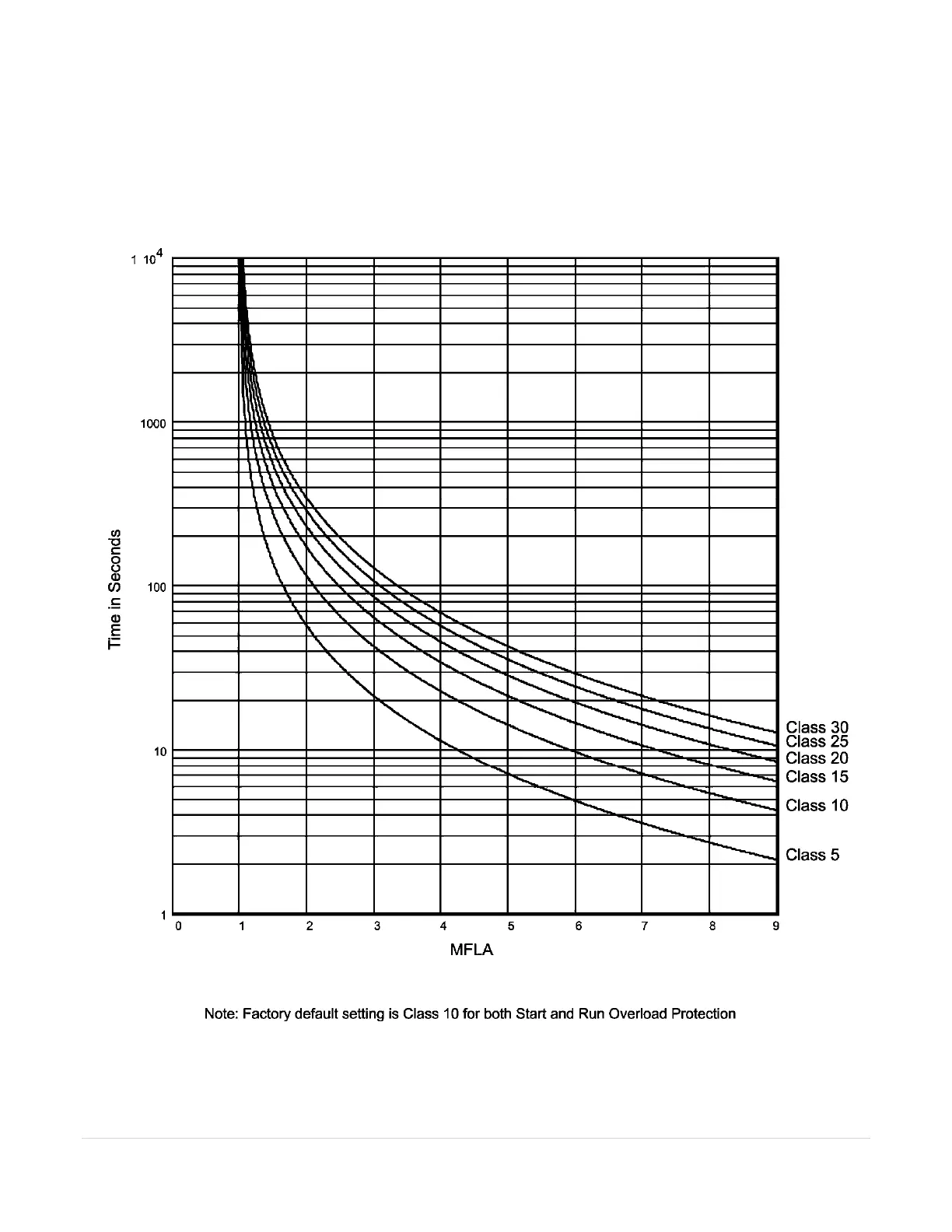

Figure 3.2.4: TE Series Overload Trip Curves
