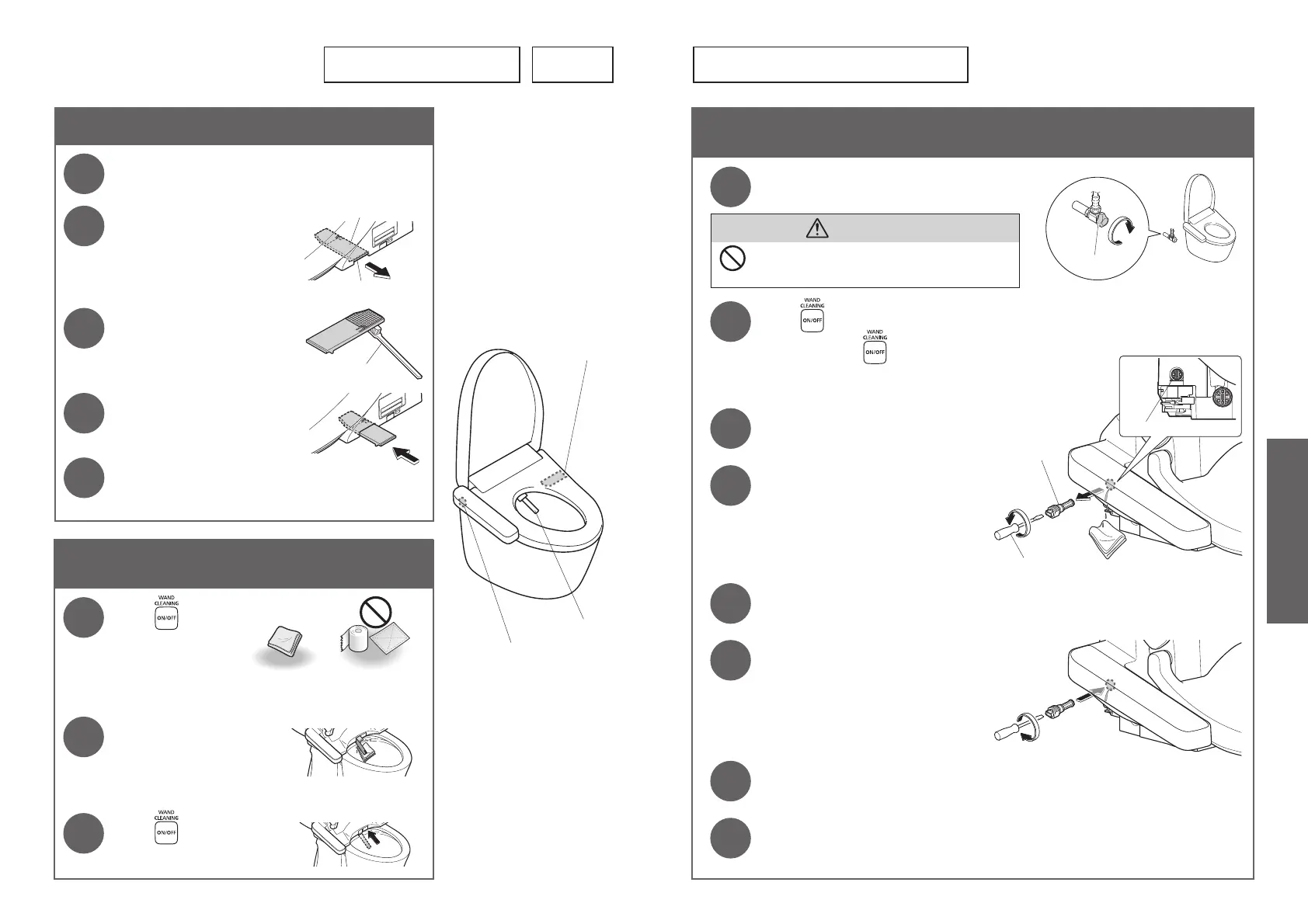

Toto SW3004 - Component Maintenance

Wand
(Approximately once a month)
<If you notice dirt (Wand cleaning)>
Maintenance
Deodorizing Filter Wand Water Filter Drain Valve
Soft cloth Toilet paper, etc.
(May cause damage.)
3
Press .
• The wand retracts.
2
Wipe with a soft,
wet cloth.
• Do not pull, push or press the
wand with excessive force.
(May cause damage or
malfunction.)
1
Press .
• The wand extends
and water fl ows out for
cleaning.
• The wand automatically
retracts after about
5 minutes.
Deodorizing Filter
*1
Wand
Water Filter Drain Valve
*1 Except SW3004
Deodorizing Filter
(Approximately once a month)
*1
Water Filter Drain Valve
(Approximately once every 6 months)
<If you think the water pressure has weakened>
2
Remove the deodorizing
fi lter.
• Hold the tab and pull outward.
• Do not pull with undue force.
(Doing so may cause damage or
malfunction.)
Clean with a tool such as a
toothbrush.
• When washing with water, dry off all
water before reinserting.
3
Toothbrush, etc.
4
Reinsert the deodorizing
fi lter.
1
Unplug the power plug.
5
Insert the power plug.
• The "Power" LED illuminates.
Push fi rmly until a click
sound is heard.
Deodorizing Filter
Tab
CAUTION
Do not remove the water fi lter drain valve while
the shutoff valve is open.
(Otherwise, water may leak out)
3
Unplug the power plug.
8
Open the shutoff valve.
(Page 14)
5
Clean with a tool such as a toothbrush.
• Also, remove any dust from inside the hole of the water fi lter drain valve.
1
Close the shutoff valve.
• The water supply stops.
2
Press
to extend the wand,
and then press again to return the wand.
(Release the pressure from the water supply pipe.)
7
Insert the power plug.
• The "Power" LED illuminates.
6
Reinstall the water fi lter drain
valve.
• Insert the water fi lter drain valve and
use a fl at-head screwdriver to tighten it
securely.
4
Remove the water fi lter drain
valve.
• Loosen the water fi lter drain valve with
a fl at-head screwdriver and then pull it.
Shutoff valve
Flat-head screwdriver
Water fi lter drain
valve
Water fi lter drain valve
