Fuses

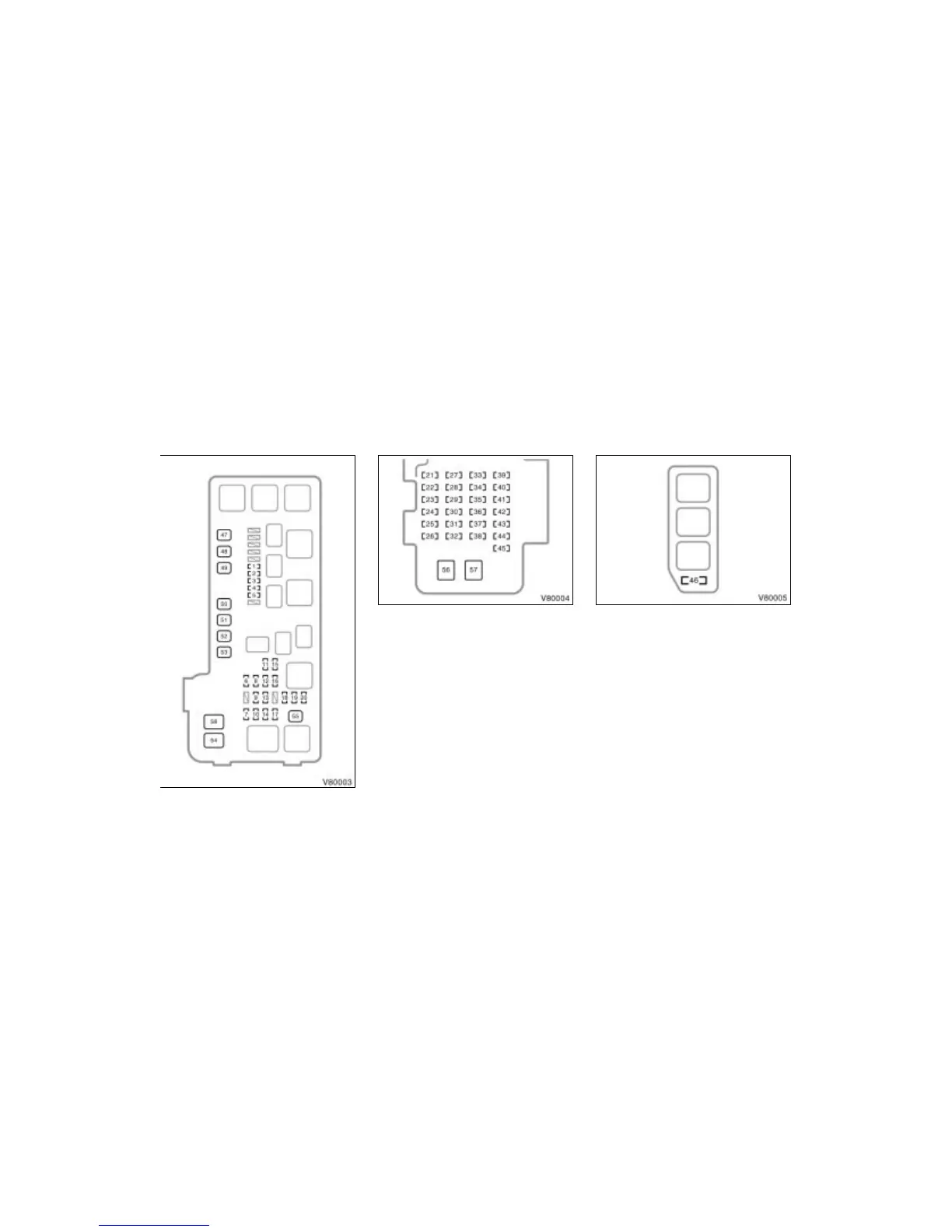

Engine compartment
Instrument panel
Fuses (type A)
1. STARTER 7.5 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
2. ABS3 7.5 A: Vehicle skid control sys-
tem
3. HEAD LP RH LWR 15 A: Right–hand
headlight (low beam)
4. HEAD LP LH LWR 15 A: Left–hand
headlight (low beam)
5. A/F 25 A: Air fuel ratio sensor
6. ALT–S 7.5 A: Charging system
7. TOWING 20 A: Trailer lights
Engine compartment
(with daytime running light system)
8. HORN 10 A: Horns
9. SECURITY 15 A: Theft deterrent sys-
tem
10. HEAD LP RH UPR 10 A: Right–hand
headlight (high beam)
11. ECU–B 7.5 A: Theft deterrent system,
air conditioning system, vehicle skid
control system, gauges and meters,
wireless remote control system, power
door lock
12. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, fuel pump, engine immobiliser
system
To Next Page
