Toyota 2001 MR2 Spyder User Manual

01MY MR2(U) L/O 0008
202
2001 MR2 (OM17482U)

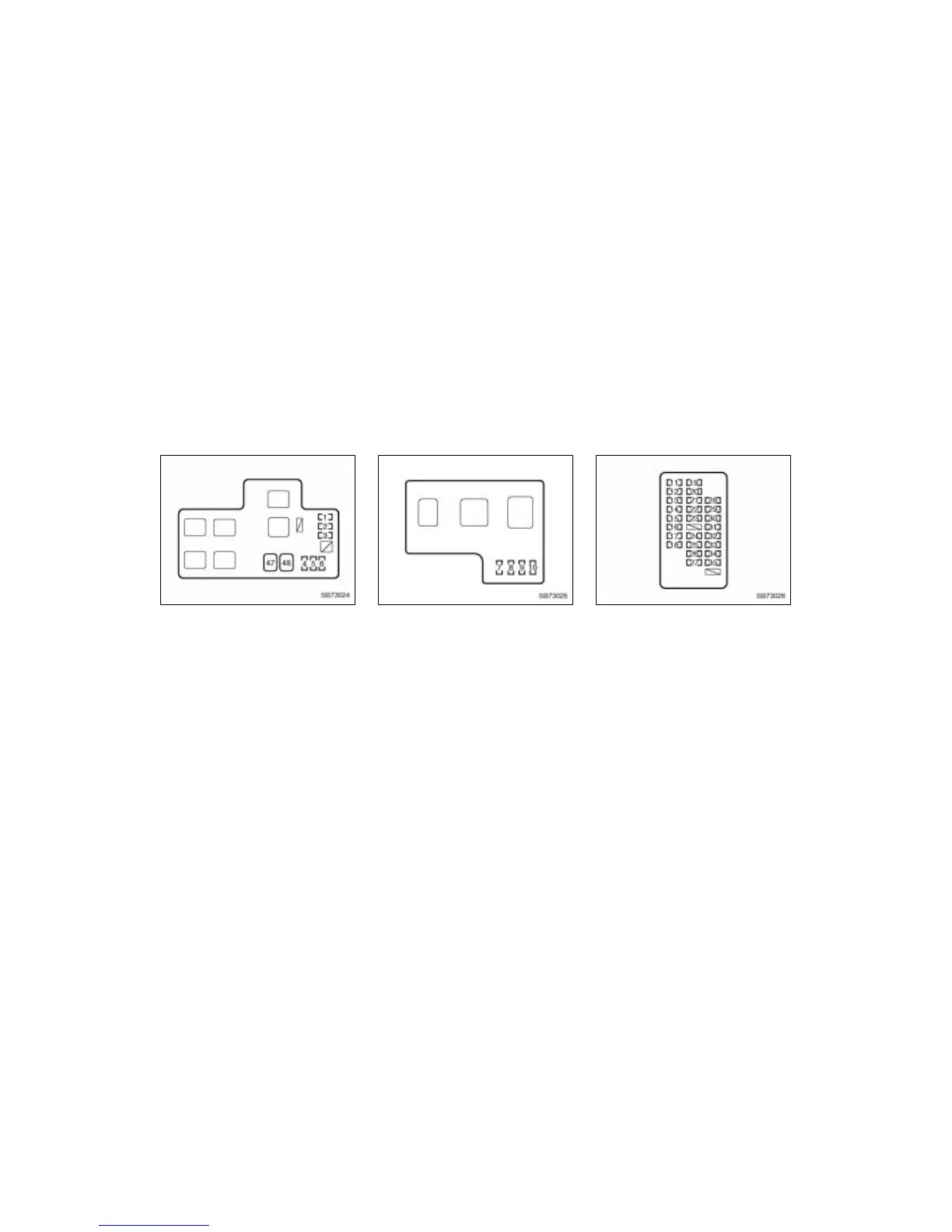

Fuses
SB73024
Trunk room
Fuses (type A)
1. 30 A: Spare fuse
2. 15 A: Spare fuse
3. 20 A: Spare fuse
4. RDI FAN 30 A: Electric cooling fans
5. ABS1 20 A: Anti–lock brake system
6. CDS FAN 30 A: Electric cooling fans
SB73025
Trunk room
7. HEAD LH UPR 10 A: Left–hand head-
light (high beam)
8. HEAD RH UPR 10 A: Right–hand
headlight (high beam)
9. HEAD LH LWR 10 A: Left–hand head-
light (low beam)
10. HEAD RH LWR 10 A: Right–hand
headlight (low beam)
11. WASHER 10 A: Windshield wiper and
washer
12. HTR 10 A: Air conditioning system
SB73026
Instrument panel
13. WIPER 20 A: Windshield wiper and
washer
14. ECU–IG 7.5 A: Power Steering system,
anti–lock brake system
15. FAN–IG 7.5 A: Electric cooling fans
16. TURN 7.5 A: Turn signal lights, emer-
gency flashers
17. GAUGE 7.5 A: Power window system,
gauges and meters, back–up lights,
charging system, rear window defogger
system
18. SRS 7.5 A: SRS airbag system
19. DEF 25 A: Rear window defogger sys-
tem
