Toyota 2004 CELICA - Fog Light

2004 CELICA (EWD538U)
98

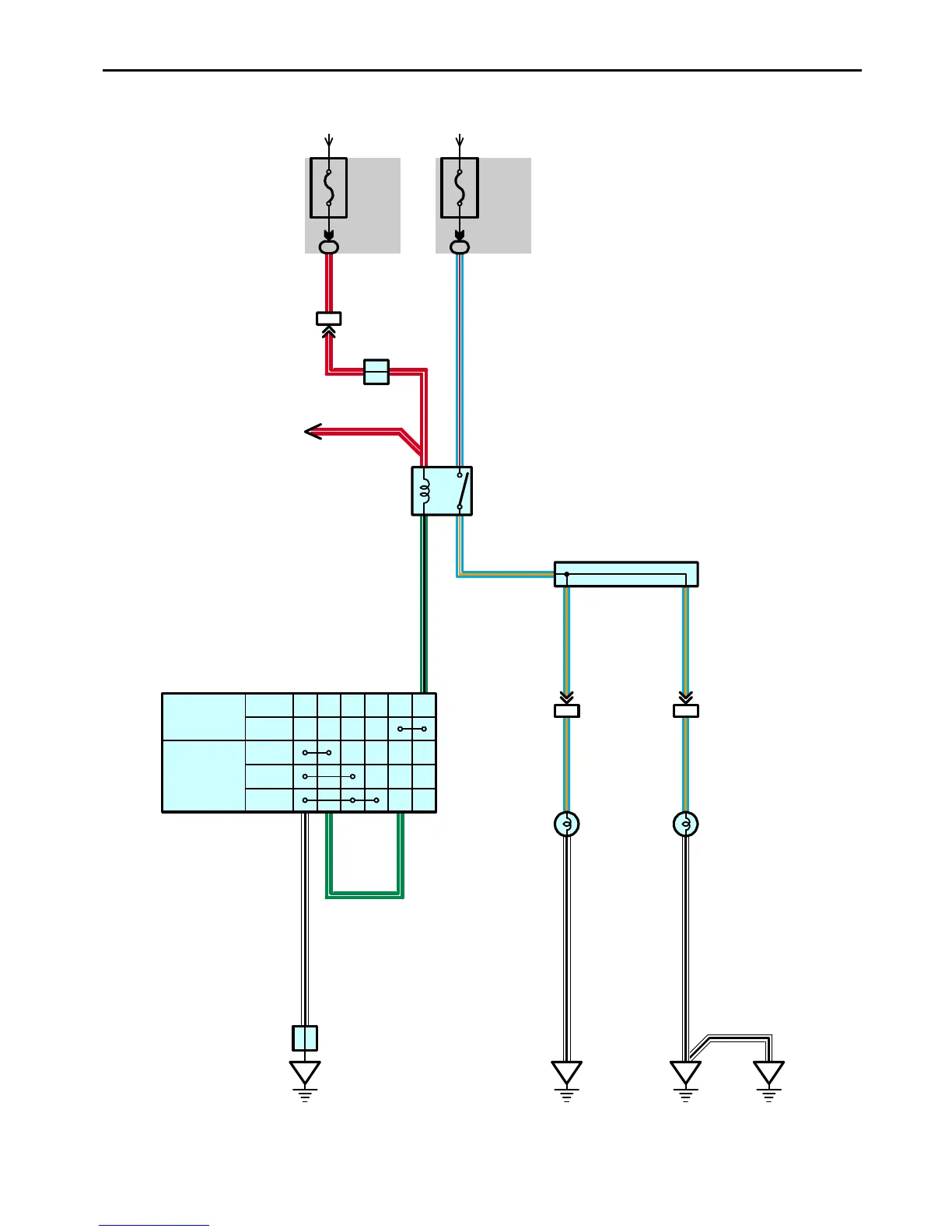

FOG LIGHT
15A
HEAD RH
LWR
FROM POWER SOURCE SYSTEM
(
SEE PAGE 52
)
2D3
15A
FR FOG
IF20
IE49
AA
23
15
C
11
IE45IG410
1
2
1
2
EM IGIE
A
EA
JUNCTION
CONNECTOR
J 5
FRONT FOG
LIGHT RELAY
F12
CC
JUNCTION
CONNECTOR
J 7
G- B
L- O L- O
R- WR-W
R- W
L- R
R- W
TO COMBINATION
METER
FRONT
FOG LIGHT
LH
F 3
FRONT
FOG LIGHT
RH
F 4
W- B W- B W- B
JUNCTION
CONNECTOR
J 3
L- O
W- B
L- O L- O
OFF
ON
LOW
HIGH
FLASH
FOG LIGHT SW
DIMMER SW
COMBINATION SW
C15
101716
G- W
