Engine compartment

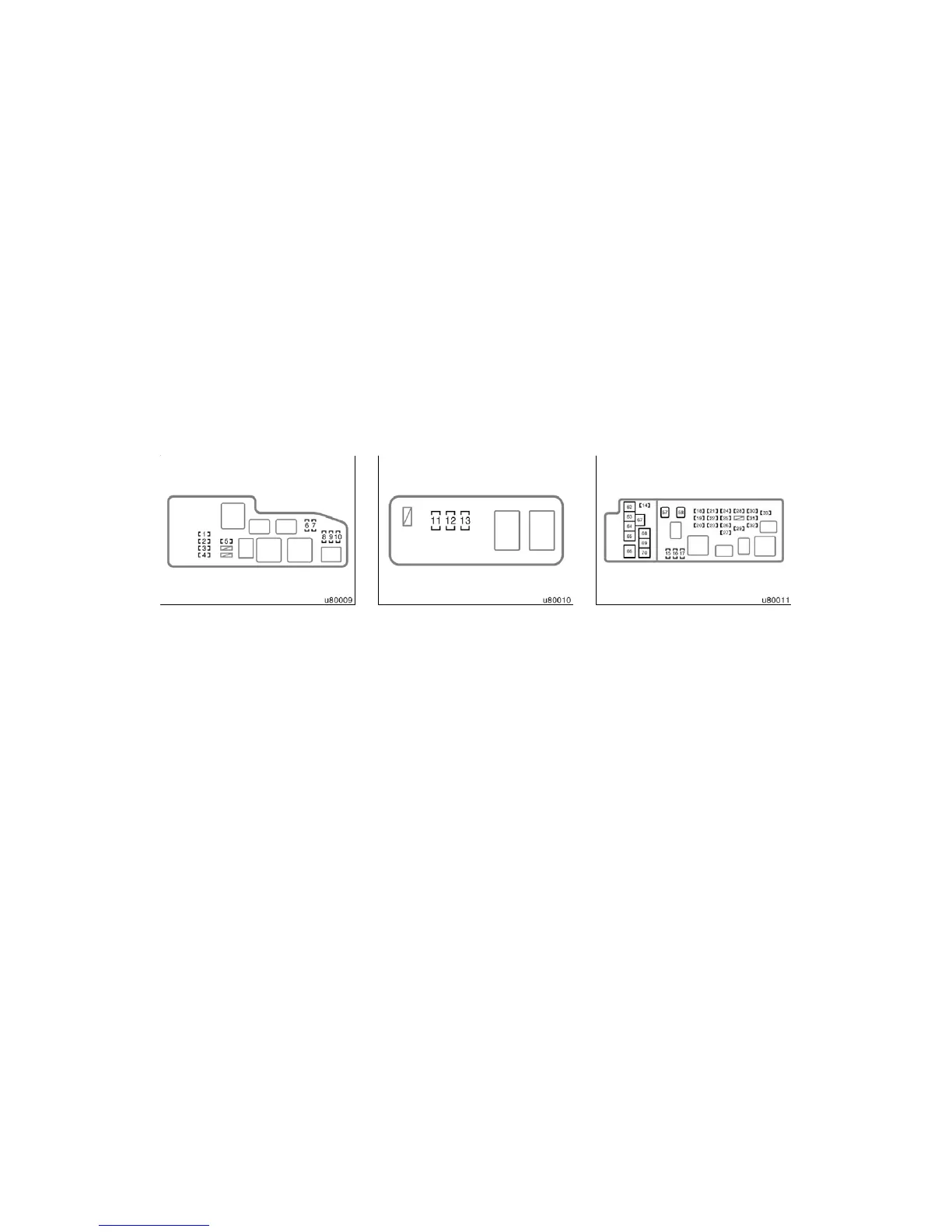

Fuses (type A)
1. AIR SUS No.2 10 A: Rear height con-
trol air suspension system
2. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
3. A/F 20 A: A/F sensor
4. SECURITY 15 A: Multiplex communica-
tion system
5. DEF I/UP 7.5 A: Rear window defog-
ger, outside rear view mirror defoggers,
multiport fuel injection system/sequen-
tial multiport fuel injection system
Engine compartment
6. H−LP LL 10 A (with daytime running
light system): Left−hand headlight (low
beam)
7. H−LP RL 10 A (with daytime running
light system): Right−hand headlight
(low beam)
8. STA 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, electronic throttle control sys-
tem
9. H−LP LH 10 A (with daytime running
light system): Left−hand headlight
(high beam)
Engine compartment
10. H−LP RH 10 A (with daytime running
light system): Right−hand headlight
(high beam)
11. TOWING TAIL 30 A: Trailer lights (tail
lights)
12. BATT CHARGE 30 A: Trailer sub bat-
tery
13. TOWING BRK 30 A: Trailer brake con-
troller
14. CDS FAN 25 A: Electric cooling fan
15. SPARE 15 A: Spare fuse
16. SPARE 20 A: Spare fuse
17. SPARE 30 A: Spare fuse
Fuses
To Next Page
