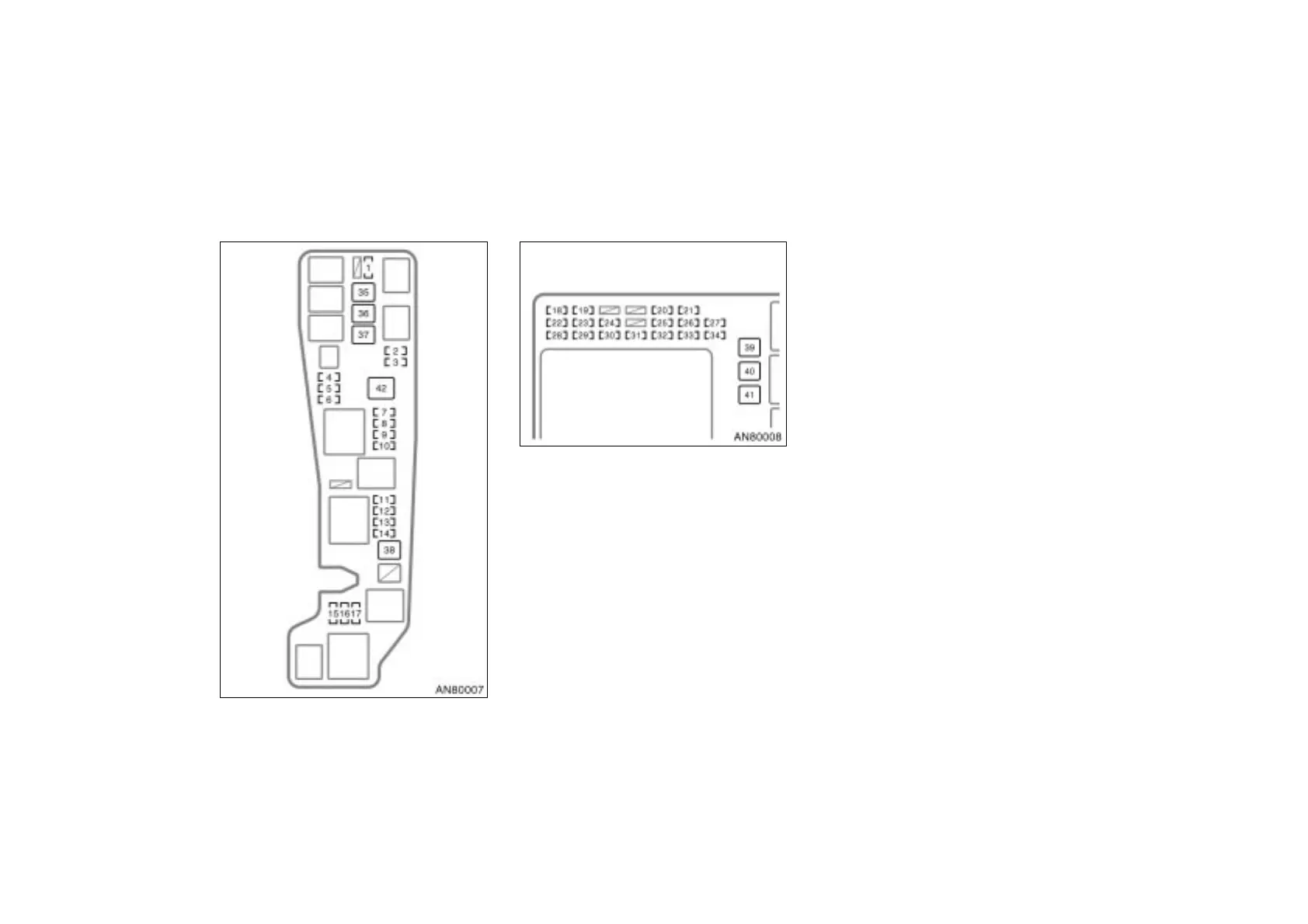

Engine compartment
Instrument panel
Fuses (type A)
1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A: Electronic throttle control
system
8. AMP 30 A: Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, clock, per-
sonal lights, interior lights, open door
warning light, wireless remote control
system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system,
“EFI2” fuse
14. ALT−S 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights, clock
19. OBD 7.5 A: On−board diagnosis sys-
tem
20. WIPER 25 A: Windshield wipers
Fuses
