4A-FE
4A-FE
TO __
~
RETURN
HOSE
,~
EFI
SYSTEM
- Fuel System
Fl-109
Fuel
Pressure
Regulator
4A-FE
Spring
Diaphragm
Vacu~ing
Hose

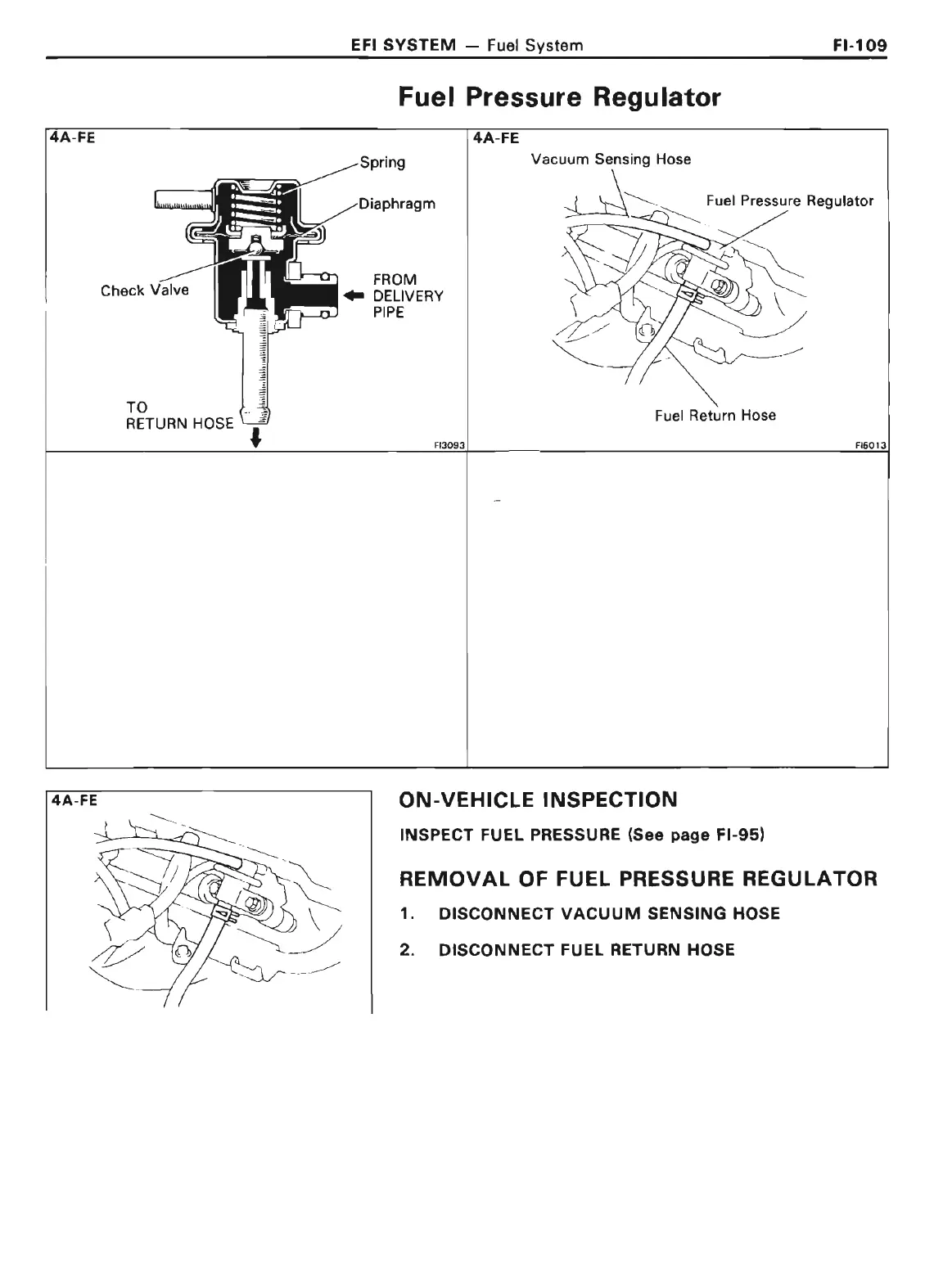

Fuel Pressure Regulator
Fuel
Return Hose
F13093
Fl6013
ON-VEHICLE INSPECTION
INSPECT FUEL PRESSURE (See
page
Fl-95)
REMOVAL
OF FUEL PRESSURE REGULATOR
1.
DISCONNECT
VACUUM
SENSING
HOSE
2.
DISCONNECT
FUEL RETURN HOSE
