Toyota 4A-FE Repair Manual

M.esured
Ci.&r1nce
lmml

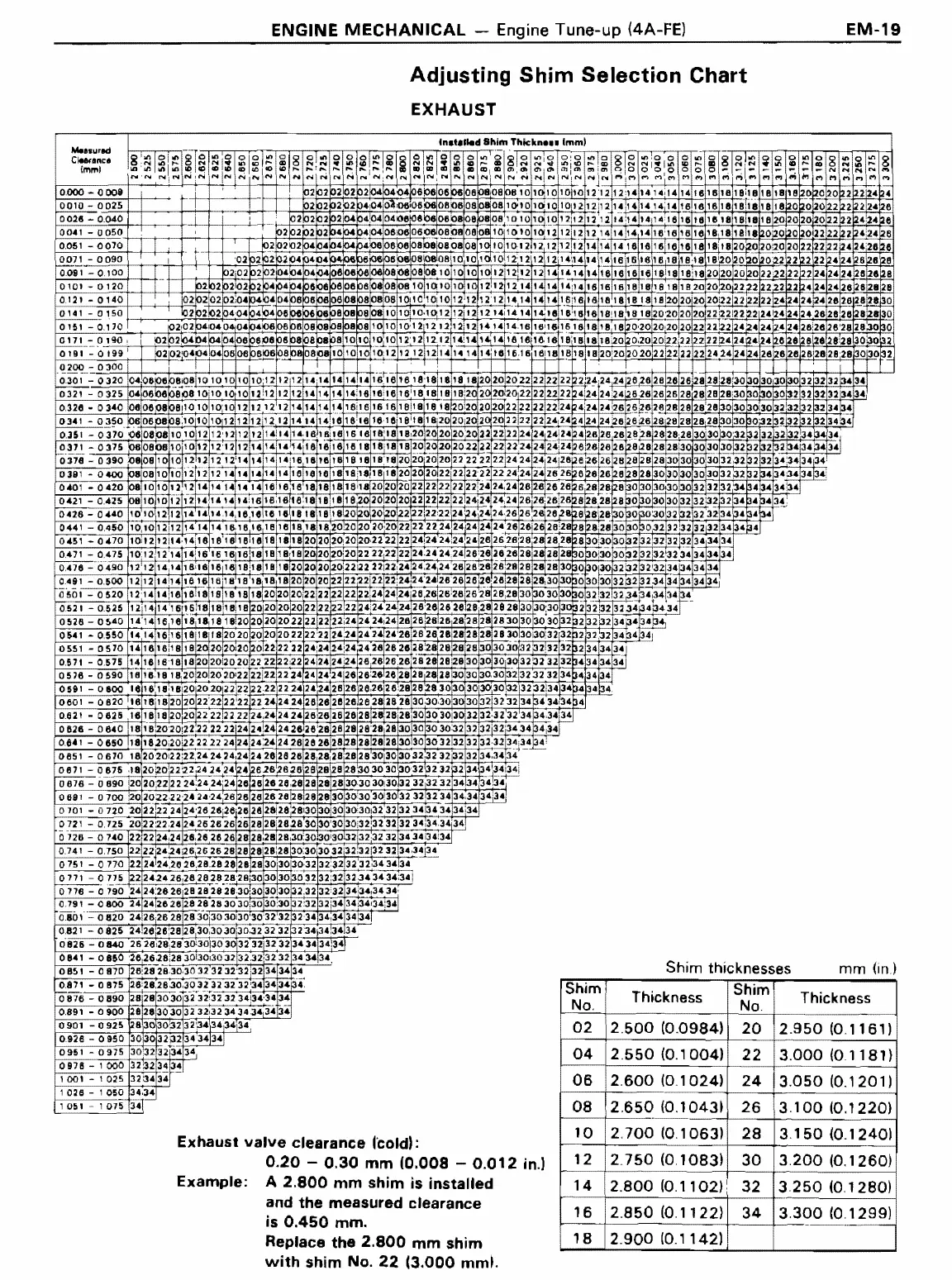

ENGINE MECHANICAL - Engine Tune-up (4A-FE)
Adjusting Shim Selection Chart
EXHAUST
lnattlkld Shim Thiekneu Imm)
EM-19
Shim thicknesses
mm (in,)
Exhaust valve clearance fcold):
0.20 - 0.30 mm (0.008 - 0.012 in.J
Example: A 2.800 mm shim is installed
and the measured clearance
is 0.450 mm.
Replace
the 2.800 mm shim
with shim No. 22 (3.000 mmL
Shim
No.
02
04
06
08
10
12
14
16
18
Thickness
Shim
No.
Thickness
2.500 (0.0984) 20 2.950 (0.1161)
2.550 (0., 004) 22
2.600 (0.1024)
24
2.650 (0.1043~ 26
2. 700 (0.1 063)
28
2. 750 (0, 1083)
30
.800 (0.11 02) !
32
2.850 (0.11 22}
34
2.900 (0., 142)
1181)
3.050 (0.1201)
3.100 (0., 220)
3.1 50 (0. 1 240)
3.200 (0.1 260)
3.250 (0.1280)
3.300 (0.1

Toyota 4A-FE Specifications

General

Engine Type	Inline-4
Fuel System	EFI (Electronic Fuel Injection)
Valvetrain	DOHC, 4 valves per cylinder
Bore x Stroke	81.0 mm x 77.0 mm
Compression Ratio	9.5:1
Fuel Type	Gasoline
Displacement	1587 cm3
Power Output	115 hp (86 kW) @ 6000 rpm
Redline	6, 400–6, 800 rpm
