ENGINE MECHANICAL - Engine Tune-up (4A-FE)
EM-21
EM7503
IG1266

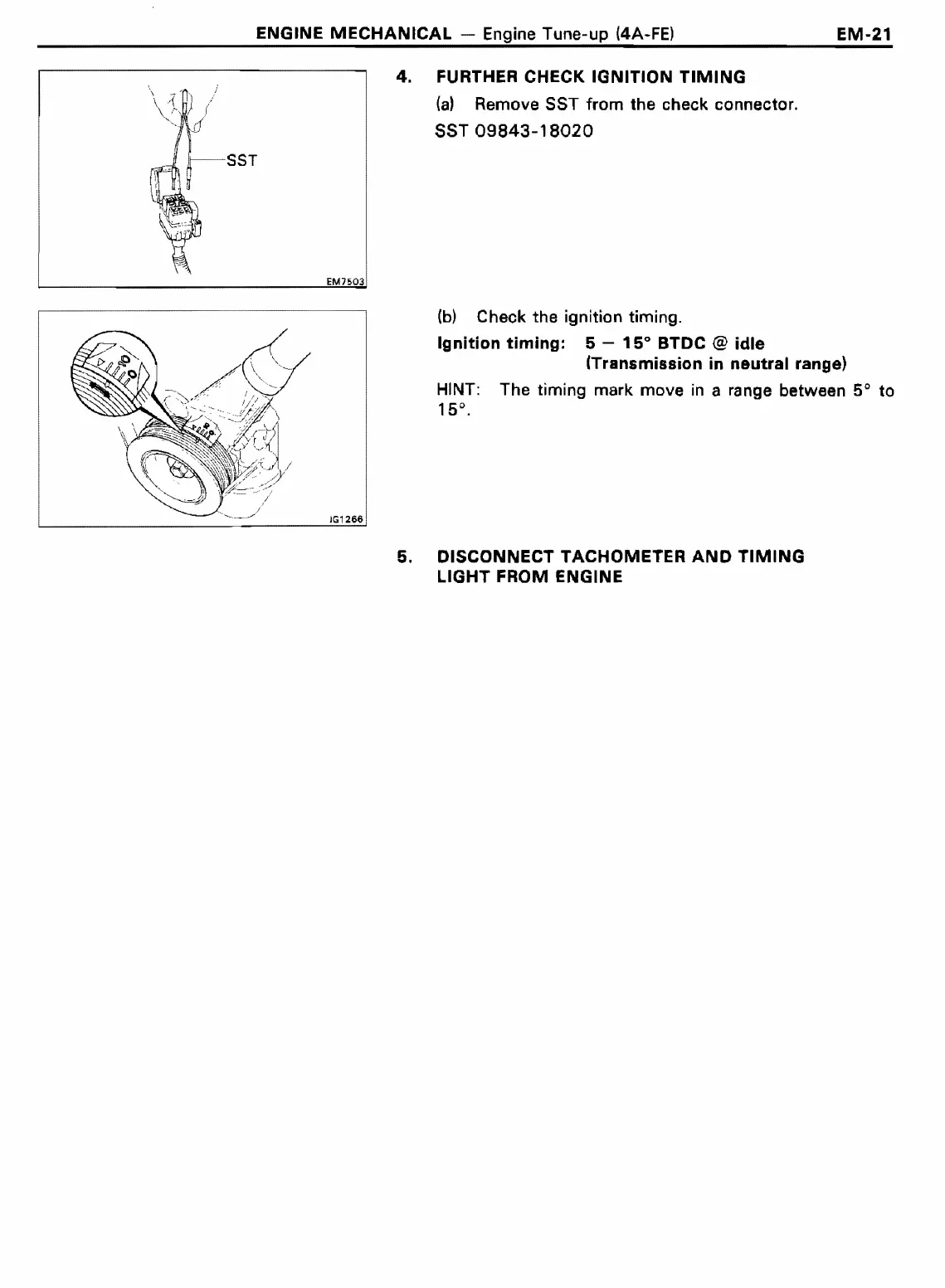

4. FURTHER CHECK IGNITION TIMING
{a) Remove SST from the check connector.
SST
09843-18020
(b) Check the ignition timing.
Ignition timing: 5 - 15° BTDC @ idle
(Transmission in neutral range)
HINT: The timing mark move in a range between 5° to
15°.
5. DISCONNECT TACHOMETER AND TIMING
LIGHT FROM ENGINE
