Toyota 4A-FE Repair Manual

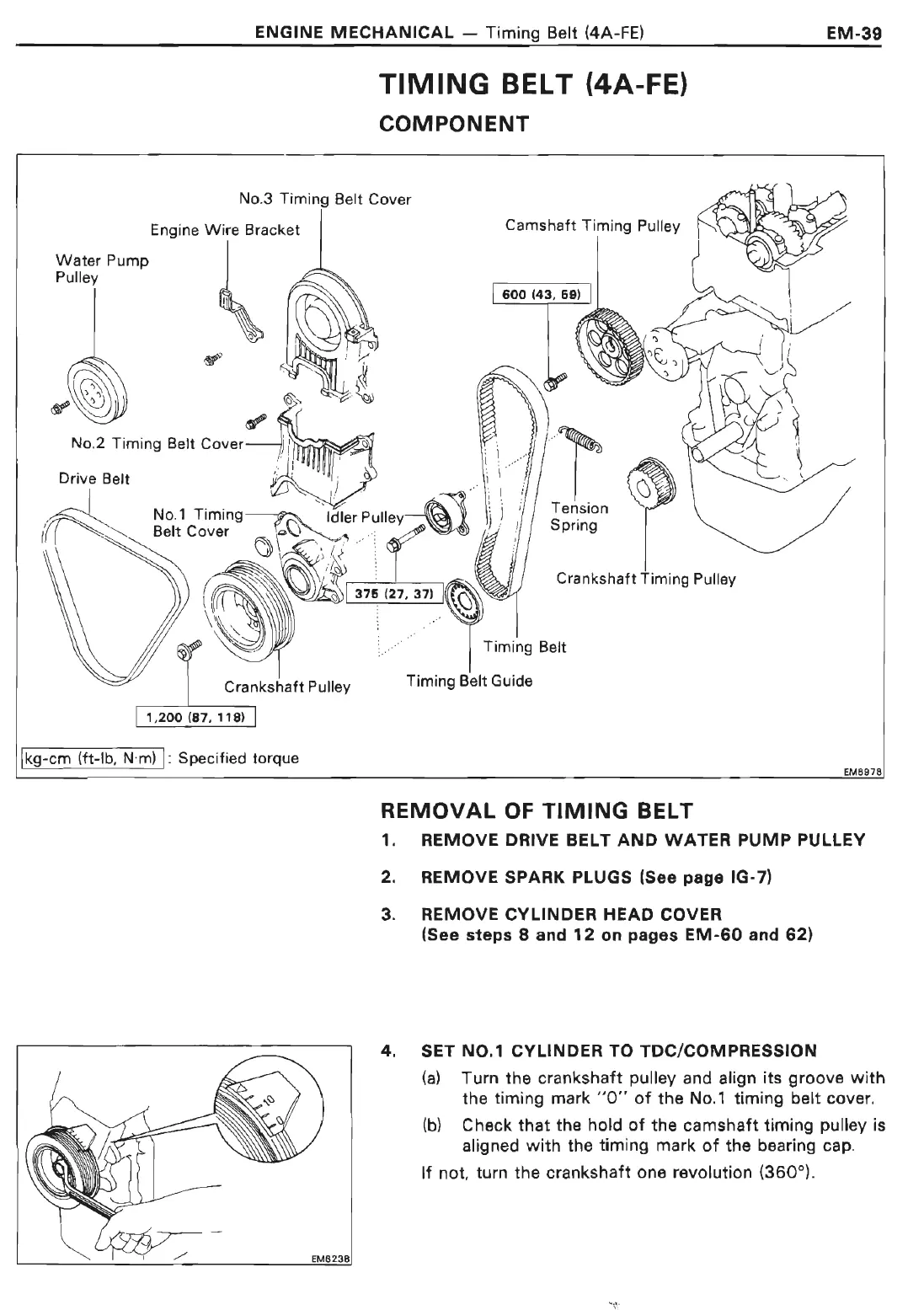

ENGINE MECHANICAL - Timing Belt (4A-FE)
EM-39
TIMING BELT (4A-FE)
COMPONENT
No.3 Timing Belt Cover
Water Pump
Pulley
No.2
Timing Belt Cover
Drive Belt
, ~
111 "<:, ~
\
Crankshaft Pulley
, ,200 (87, 118)
I kg-cm (ft-lb, N· m) I: Specified torque
Camshaft Timing Pulley
soo (43, se) I
Tension
Spring
Crankshaft Timing Pulley
REMOVAL OF TIMING BELT
EMB978
1. REMOVE DRIVE BELT AND WATER PUMP PULLEY
2. REMOVE SPARK PLUGS (See page IG- 7)
3. REMOVE CYLINDER HEAD COVER
(See
steps 8 and 12 on pages EM-60 and 62)
4. SET N0.1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley and align its groove with
the timing mark "O" of the No.1 timing belt cover.
(b} Check that the hold of the camshaft timing pulley is
aligned
with the timing mark of the bearing cap.
If not, turn the crankshaft one revolution (360°).

Toyota 4A-FE Specifications

General

Engine Type	Inline-4
Fuel System	EFI (Electronic Fuel Injection)
Valvetrain	DOHC, 4 valves per cylinder
Bore x Stroke	81.0 mm x 77.0 mm
Compression Ratio	9.5:1
Fuel Type	Gasoline
Displacement	1587 cm3
Power Output	115 hp (86 kW) @ 6000 rpm
Redline	6, 400–6, 800 rpm
