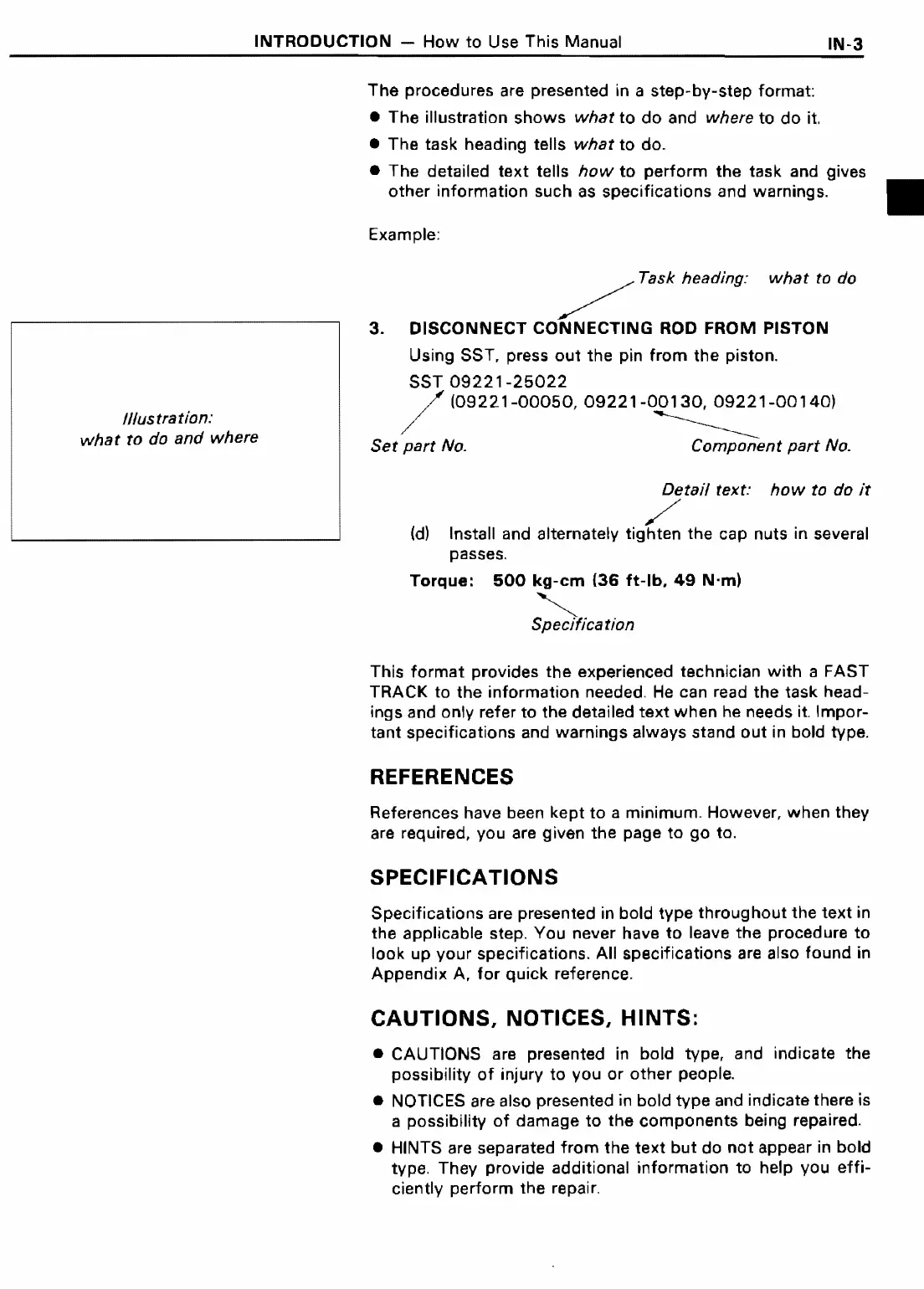

INTRODUCTION -
How
to
Use This Manual
IN-3
Illustration:
what
to
do
and where
The procedures are presented in a step-by-step format:
• The illustration
shows
what
to
do
and where
to
do
it
• The task heading tells
what
to
do.
• The detailed
text
tells
how
to
perform
the task and gives
other information such
as
specifications and warnings.
Example:
/ Task heading:
what
to do
3. DISCONNECT CONNECTING ROD FROM PISTON
Using SST, press
out
the pin
from
the piston.
SST
09221-25022
/
(09221-00050,
09221-0~1-00140)
Set
part
No.
Component
part
No.
Detail text:
how
to
do
it
/
(d)
Install and alternately tighten the cap nuts
in
several
passes.
Torque:
500
kg-cm
(36
ft-lb.
49
N·m)
~
Specification
This
format
provides the experienced technician
with
a FAST
TRACK
to
the information needed.
He
can read the task head-
ings and only refer to the detailed
text
when
he
needs it. Impor-
tant specifications and warnings always stand
out
in bold type.
REFERENCES
References have been kept to a minimum. However, when they
are
required, you are given the page to go to.
SPECIFICATIONS
Specifications are presented in bold type
throughout
the
text
in
the applicable step. You never have
to
leave the procedure
to
look
up your specifications. All specifications are also found in
Appendix A,
for
quick reference.
CAUTIONS, NOTICES,
HINTS:
• CAUTIONS are presented
in
bold type, and indicate the
possibility
of
injury to you
or
other people.
• NOTICES are also presented in bold type and indicate there is
a possibility
of
damage to the components being repaired.
• HINTS are separated
from
the
text
but
do
not
appear in bold
type. They provide additional information
to
help you
effi-
ciently perform the repair.
