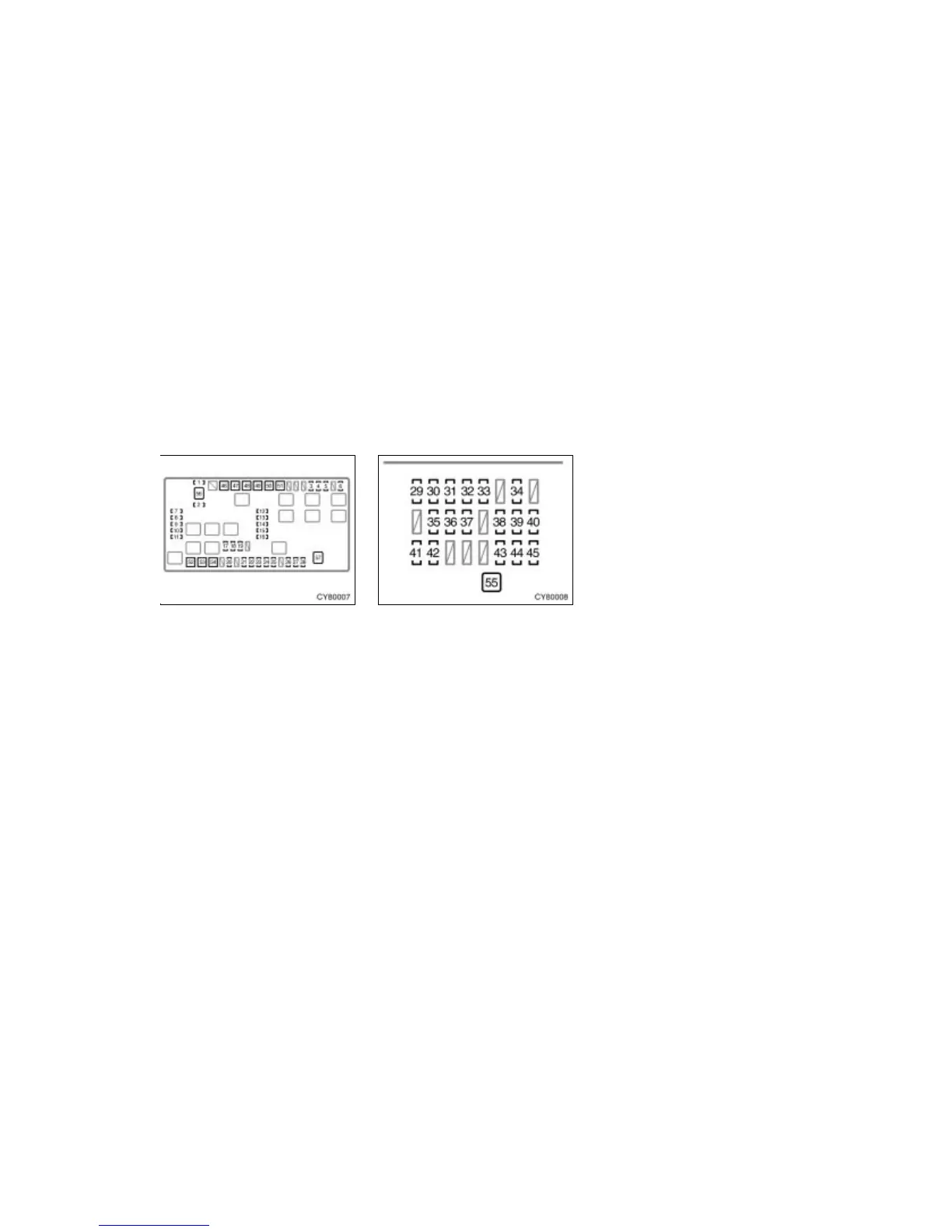

Engine compartment
Fuses (type A)
1. SPARE 10 A: Spare fuse
2. SPARE 15 A: Spare fuse
3. STOP 10 A: Stop/tail lights, high
mounted stoplight, shift lock control
system, anti- lock brake system, trac-
tion control system (two- wheel drive
models), active traction control system
(four- wheel drive models), vehicle sta-
bility control system, rear height control
air suspension, multiport fuel injection
system/sequential multiport fuel injec-
tion system, trailer brake controller,
trailer lights (tail lights)
Instrument panel
4. AC115V INV 15 A: AC inverter
5. FR FOG 15 A: Front fog lights
6. OBD 7.5 A: On- board diagnosis sys-
tem
7. HEAD (LO RH) 10 A: Right- hand
headlight (low beam)
8. HEAD (LO LH) 10 A: Left- hand head-
light (low beam)
9. HEAD (HI RH) 10 A: Right- hand head-
light (high beam)
10. HEAD (HI LH) 10 A: Left- hand head-
light (high beam)
11. EFI NO.2 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
12. HEATER NO.2 7.5 A: Air conditioning
system
13. AIRSUS NO.2 10 A: Rear height con-
trol air suspension
14. SEAT HEATER 25 A: Seat heaters
15. DEFOG 30 A: Back window defogger,
multiport fuel injection system/sequen-
tial multiport fuel injection system
16. MIR HEATER 10 A: Outside rear view
mirror heater
17. DOME 10 A: Interior light, personal
lights, wireless remote control system,
door courtesy lights, rear seat audio
system, gauge and meter, vanity lights,
instrument panel lights, running board
lights, multiplex communication system
18. RADIO NO.1 20 A: Audio system, nav-
igation system
19. ECU- B 10 A: Anti- lock brake system,
navigation system, traction control sys-
tem (two- wheel drive models), active
traction control system (four- wheel
drive models), vehicle stability control
system, air conditioning system, multi-
plex communication system, theft deter-
rent system
Fuses
To Next Page
